ASSEMBLY OF THE KG UNICO BODYWORK
7-6 ASSEMBLY OF THE SPOILER (PIC 5)
¾ Place the fixing kit between the upper and lower
spoiler support.
¾ Insert the spoiler between the two supports, and
tighten.
7-7 ASSEMBLY OF THE LOWER NASSAU PANNEL
(PIC 6)
¾ Assemble the upper and lower nassau panel with
the supplied bolts and screws.
¾ Position the nassau panel on the connection part (8)
¾ Insert the screws
¾ Place the bolts and tighten.
7-8 ASSEMBLY OF THE UPPER NASSAU PANEL
(PIC 7)
¾ Tilt the upper nassau panel supports (9) to the
adequate position.
¾ Mark the points to be drilled (10).
¾ Drill to diameter 6.5.
¾ Insert the screws.
¾ Place the bolts and tighten.

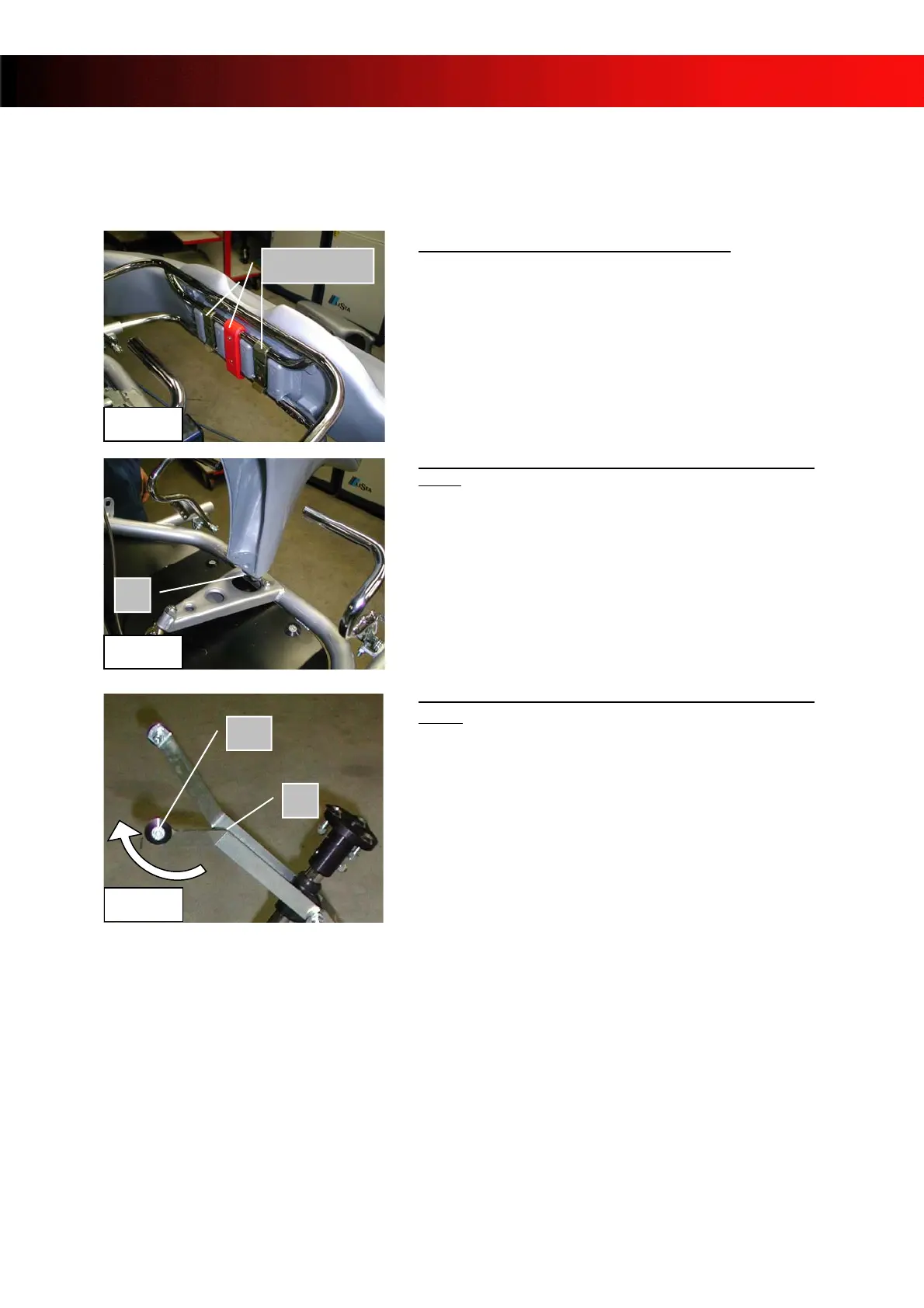

PIC 5
Kit fixation
PIC 6
8
PIC 7
9
10
NOTE:
- For details and references of screws, bolts and washers, please refer to the
DD2 spare parts catalogue.
