5. Buttons and indicator lights

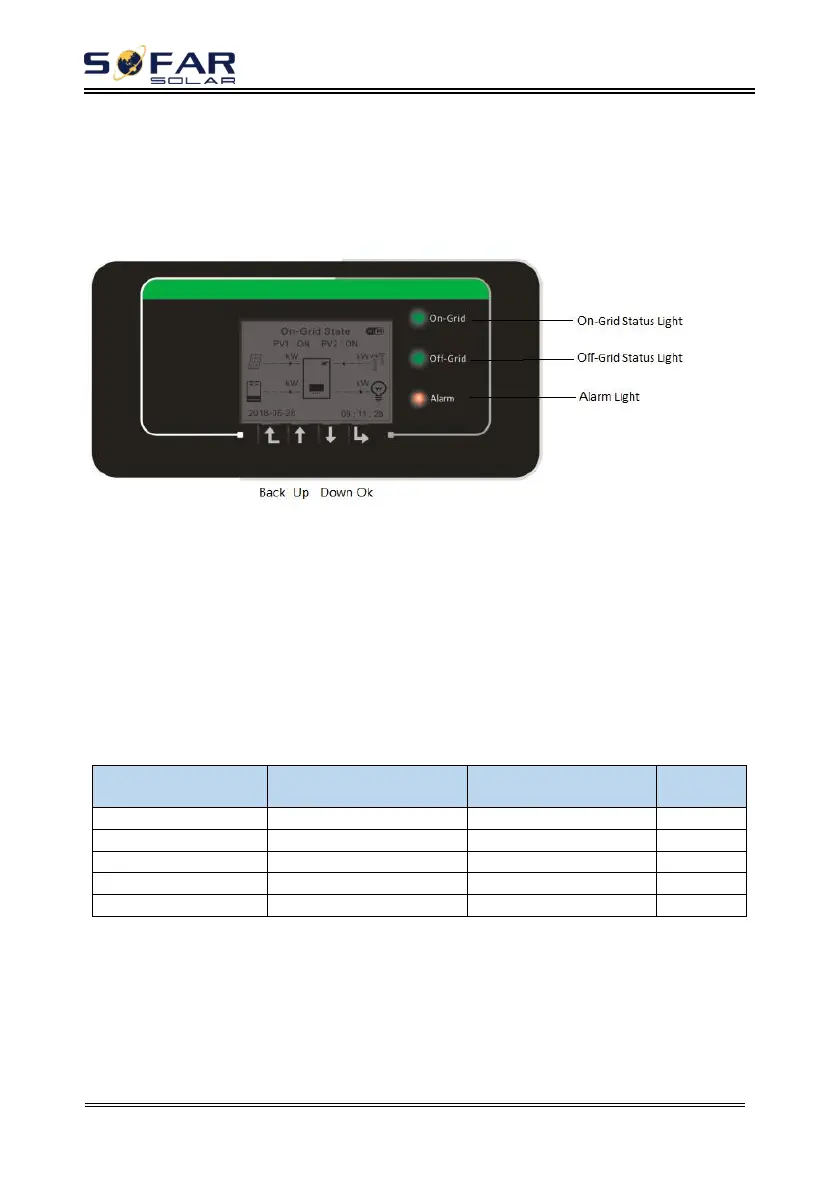

Fig.5-1 Buttons and indicator lights
5.1. Buttons
 press “Back” to the previous screen or enter the main interface.
 press “Up” to the upper menu option or value plus 1.
 press “Down” to the lower menu option or value minus 1.
 Press “OK” to select the current menu option or switch to the next digit.
5.2. Indicator lights and status
Status
On Grid
Green light
Off-Grid
Green light
Alarm
Red light
On-grid
ON
Standby (On-Grid)
Flashing
Off-Grid
ON
Standby (Off-Grid)
Flashing
Alarm
ON
