6.Input Channel Config
OK
Input Channel Config
Input Channel1
Battery input1
Down
OK
Battery input2
Disable
Input Channel2
Battery input1
Down
Battery input2
Disable
Input Channel3
PV input 1
Down
PV input 2
Disable
Input Channel4
PV input 1
Down
PV input 2
Disable

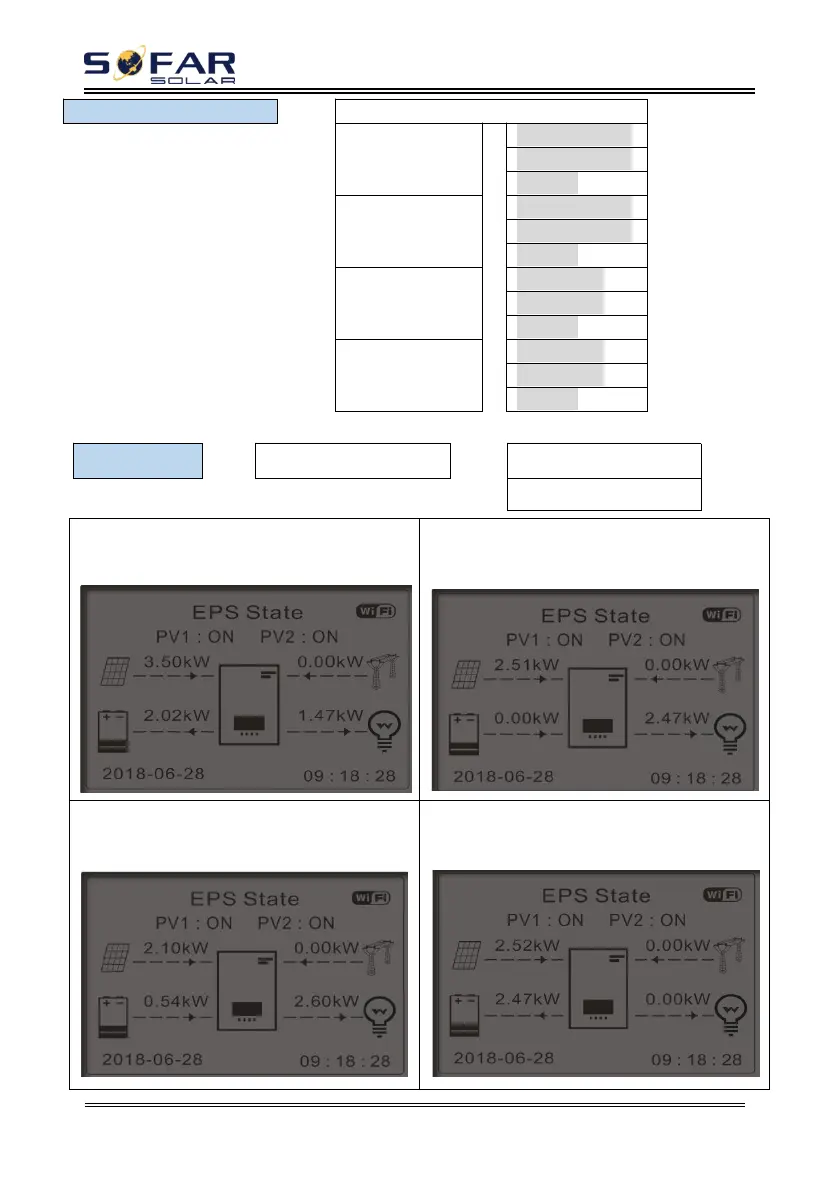

7. EPS Mode
7.EPS Mode
OK
1.EPS Mode Control
OK
1.Enable EPS Mode
OK
2.Disable EPS Mode
1) If PV generation > LOAD consumption
(ΔP > 100W), inverter will charge battery.
2) If PV generation = LOAD
consumption, inverter wont’ charge or
discharge battery.
3) If PV generation < LOAD consumption
(ΔP
＞
100W), inverter will discharge
battery.
4)
If PV generation is normal,but LOAD
consumption=0, the surplus power will be
stored in the battery.
