4.7. Communication method
SOFAR 1.1K~3.3KTL-G3 gird-connected inverters offer RS485 (standard)
and Wi-Fi (optional) communication modes:
A. Communication between one inverter and one PC:
1. RS485

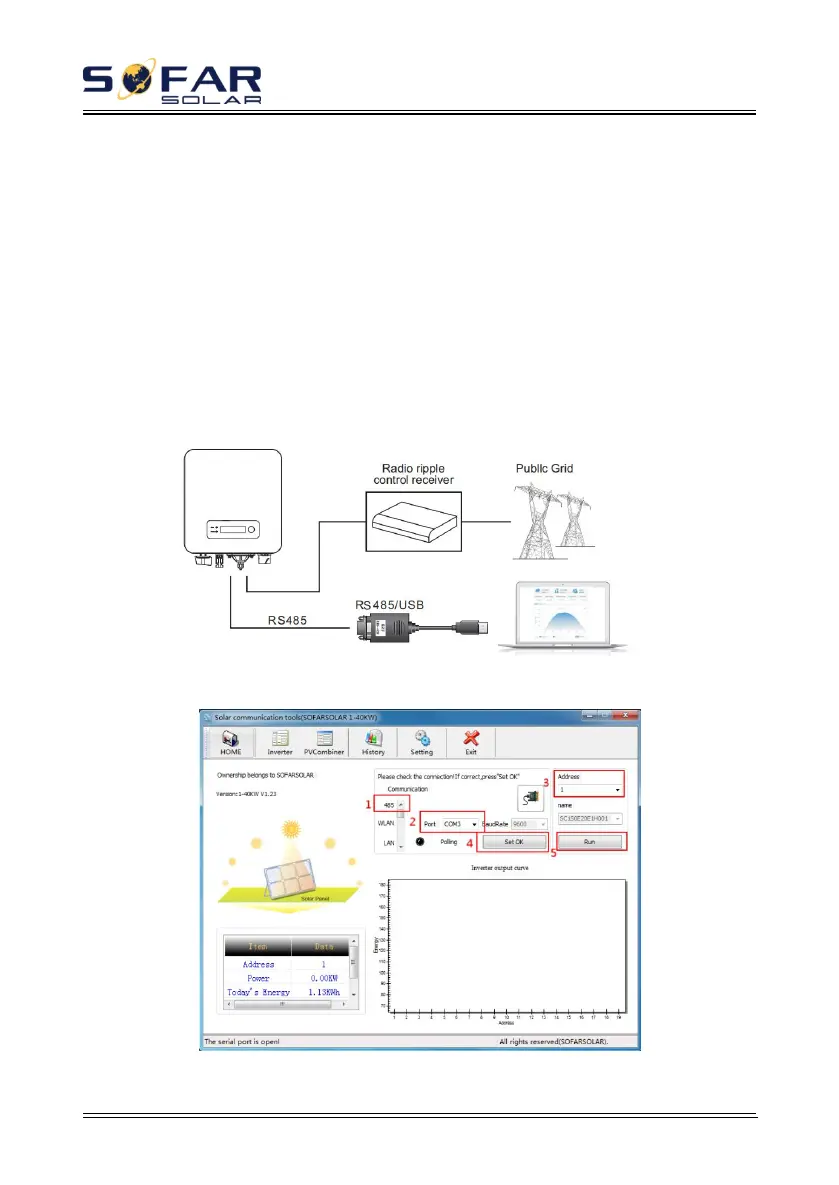

Refer to the figure shown below, connect the TX+ and TX- of the inverter to
the TX+ and TX- of the RS485→ USB adapter, and connect the USB port of the
adapter to the computer.(NOTE1)
Figure 4-32
1.1 Setting power quality response modes
Figure 4-33
