TypeⅠ connector installation instructions

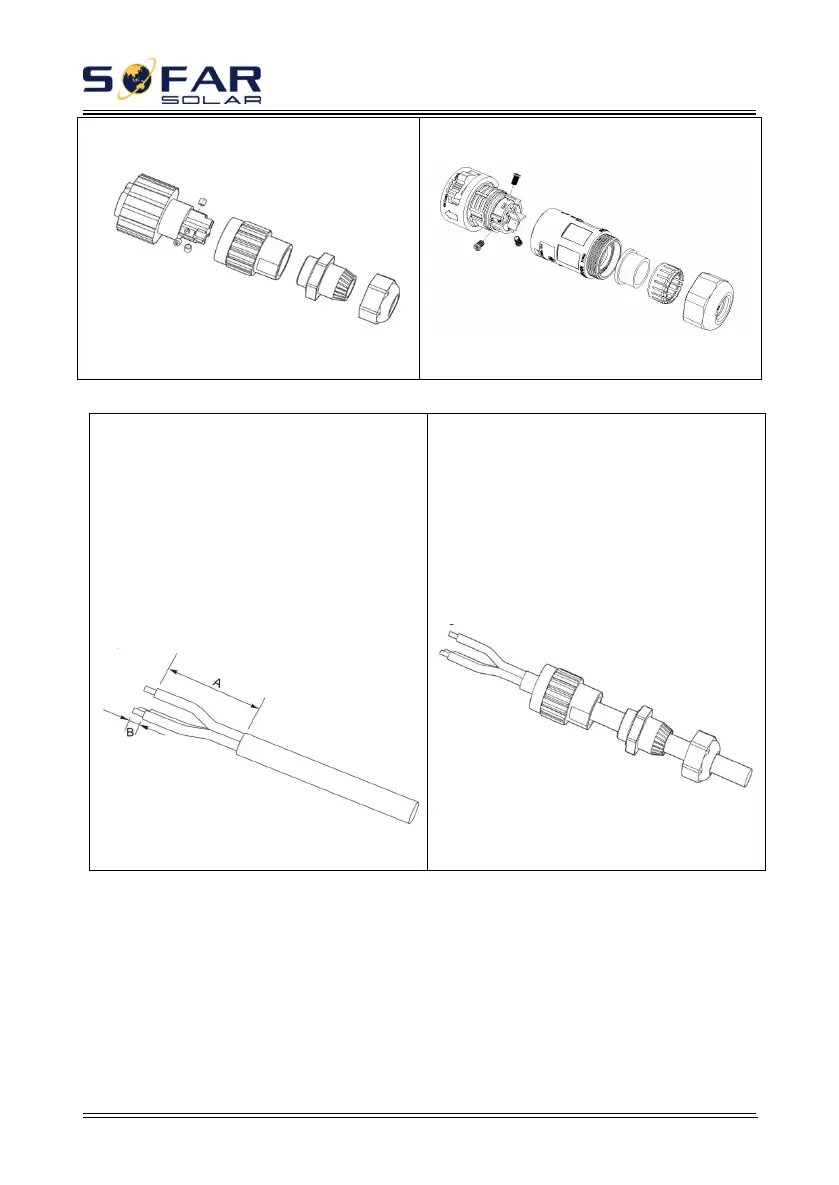

Step 1 Select appropriate cables
according to Table 4-2, Remove the
insulation layer of the AC output cable
using a wire stripper according to the figure
shown below:
A: 30~50mm B:6~8mm;
Figure 4-12
Step2 Disassemble the AC connector
according to the figure shown below: insert
the AC output cable (with its insulation
layer stripped according to step 1) through
the waterproof locking cable gland;
Figure 4-13
