Sofarsolar SOFAR 2700TL-G3 - WIFI;GPRS Module Installation Procedure

SOFAR 1.1K~3.3KTL-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 36 -
6
NC
Not Connected
Not Connected
7
NC
Not Connected
Not Connected
8
NC
Not Connected
Not Connected
Table 4-9 The inverter is preconfigured to the following RRCR power levels.
Relay status: close is 1, open is 0
L1
Active Power
Power drop rate
Cos(φ)
1
0%
＜5 seconds
1
0
100%
/
1
Step4 Insert the terminal as per the printed label, and then tighten the screws
to fix the waterproof cover, rotate the cable gland clockwise to fasten it securely.

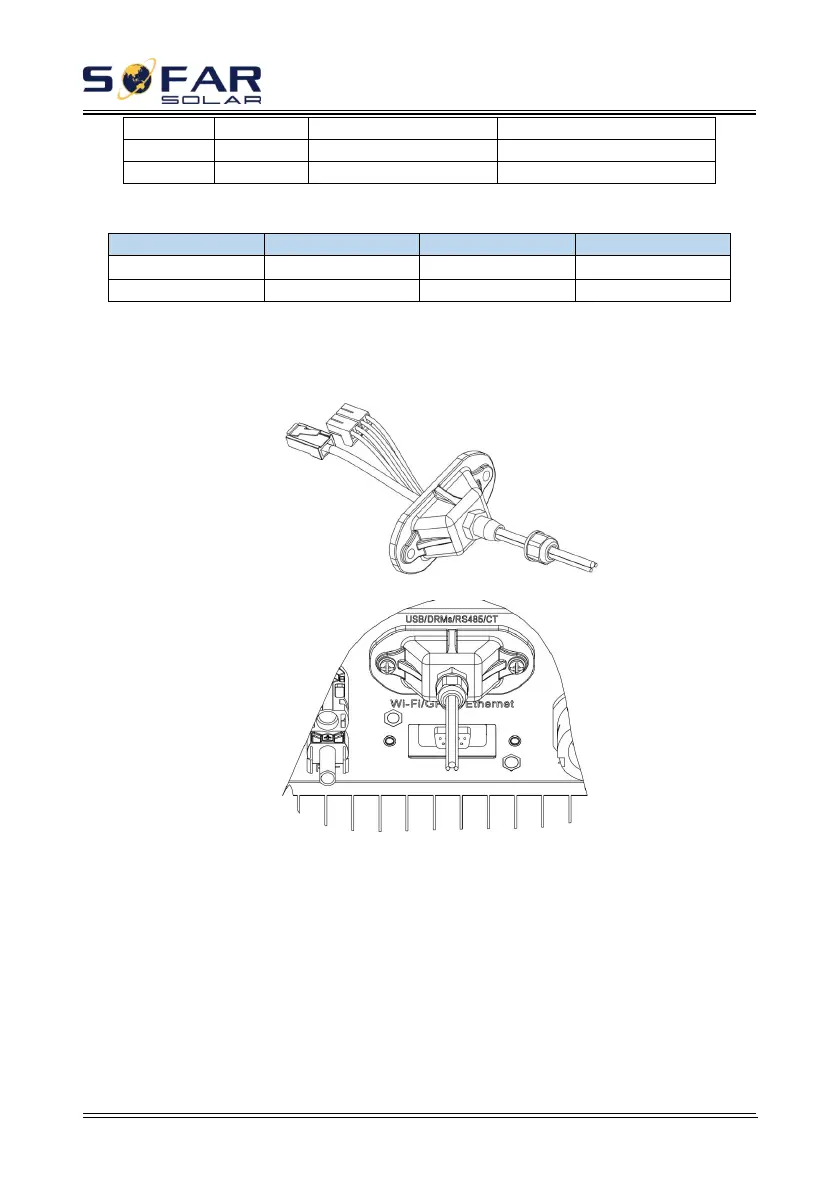

Figure 4-30
Figure 4-31
4.6. WIFI/GPRS module installation procedure
Step1: Remove wifi/GPRS waterproof cover using screw driver.
Step2: Install WIFI/GPRS module.
Stpe3: Fasten WIFI/GPRS module using screws.
