Block Diagram
This is a block diagram over the FET Compressor functionality. Please note that this
illustration depicts the functionality of the plug-in – the inner workings ire quite different.
2
2) The experienced reader will notice that some parts, like the feedback connection of the
compressor, have been omitted in the illustration for the sake of clarity.
24

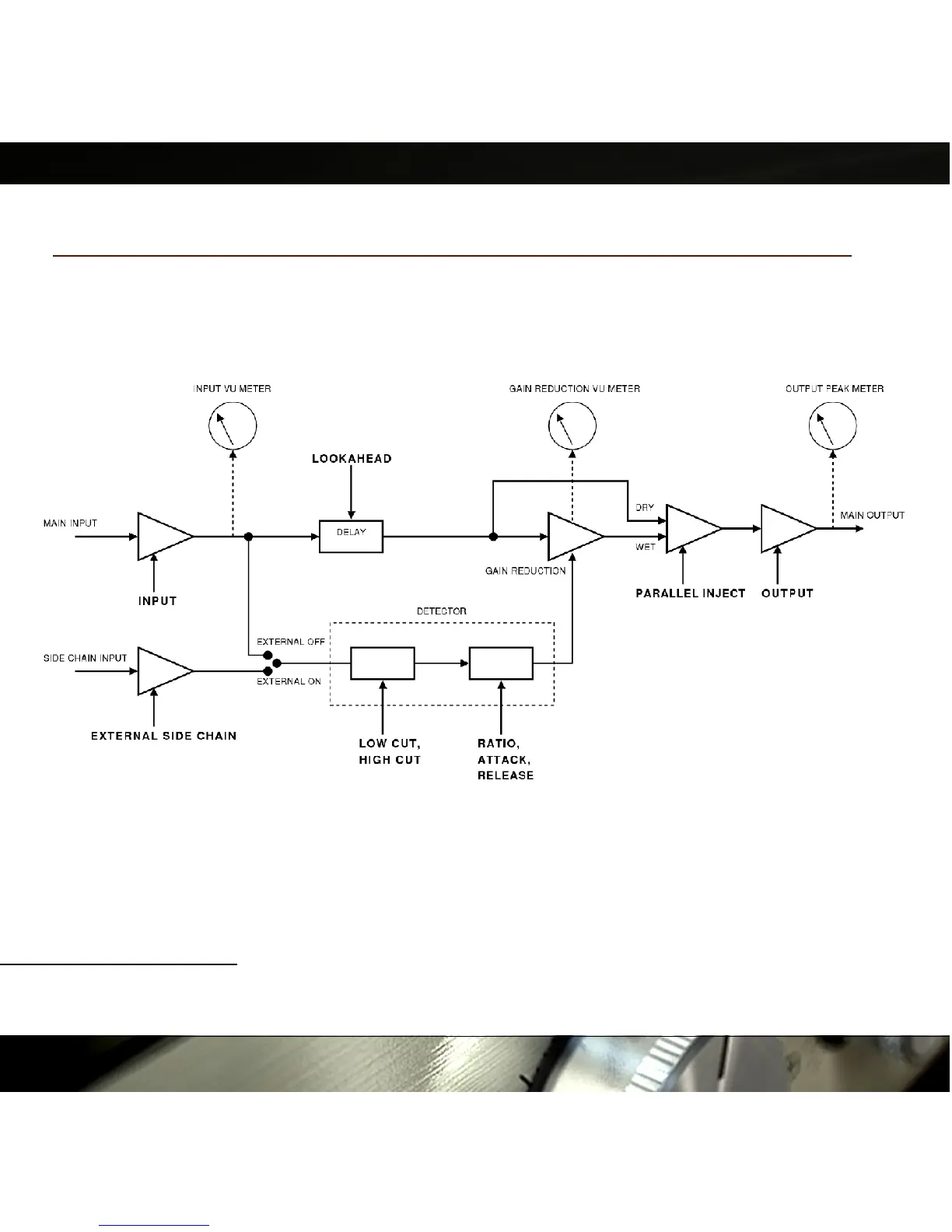

Figure 17: Block diagram of the FET Compressor. The S I D E C H A I N I N P U T is
only active if the side chain has been activated by the External Side Chain knob,
regardless of whether a side chain is present or not.
