Direct Device Configurations (Solar-Log 1200 and 2000)
Page 1 - Display brightness
The following configurations can be made:
•
Turn on at (time)
•
Turn off at (time)
•
50% dim (min.)
•
100% dim (min.)
•
Dimming when all inverters are offline

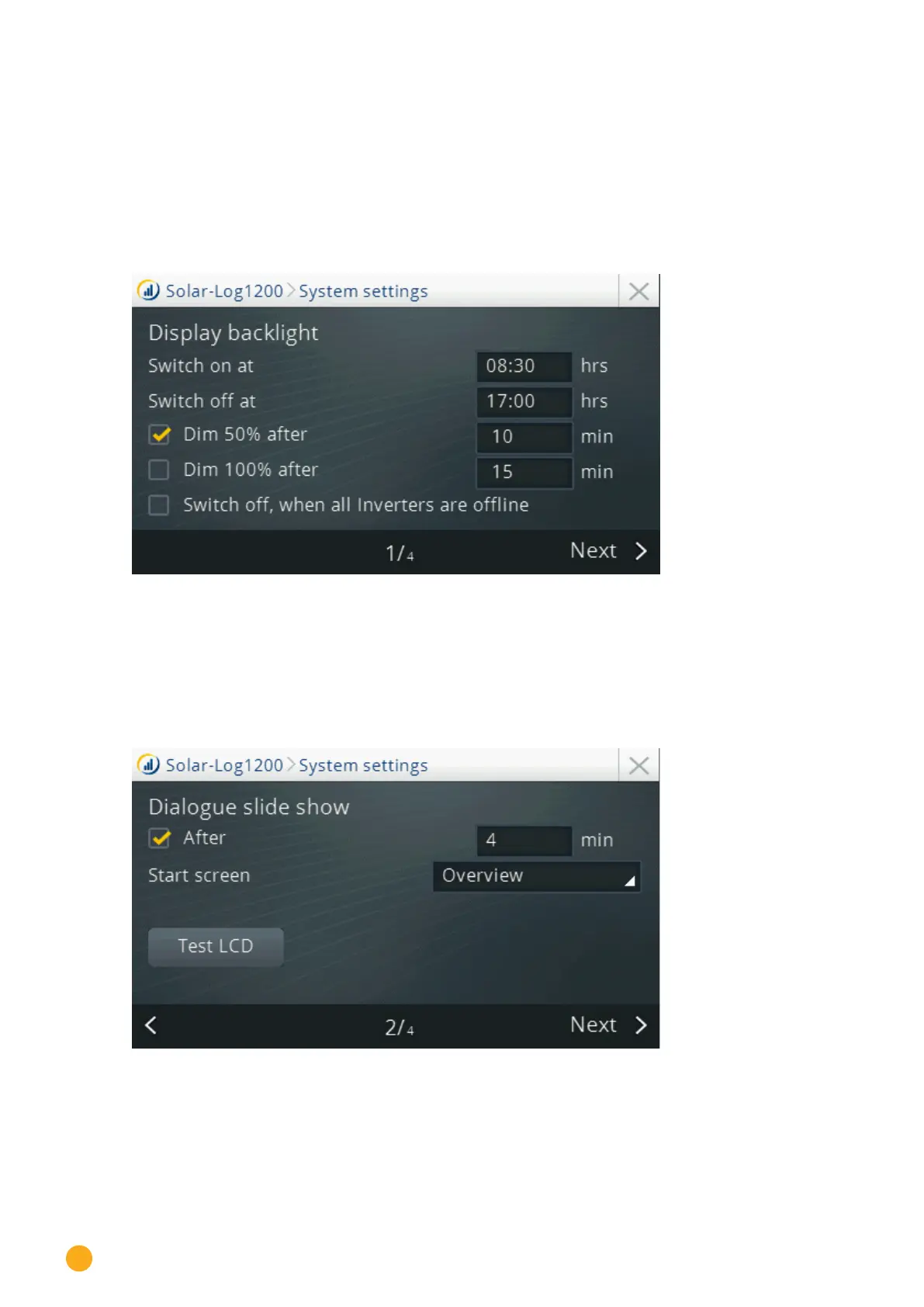

Fig.: Display brightness
Page 2 - Slide show dialog
The following settings are possible:
•
Slide show dialog after (min)
•
Start screen (screen that is to be displayed when the Solar-Log™ starts)
•
Test LCD (test function to see if all of the symbols are displayed on the LCD display)
Fig.: Slide show dialog
