Operation manual of solar water controller SR530C8/SR530C8Q
---------------------------------------------------------------------------------------------------------------------------------------------------
- 16 -

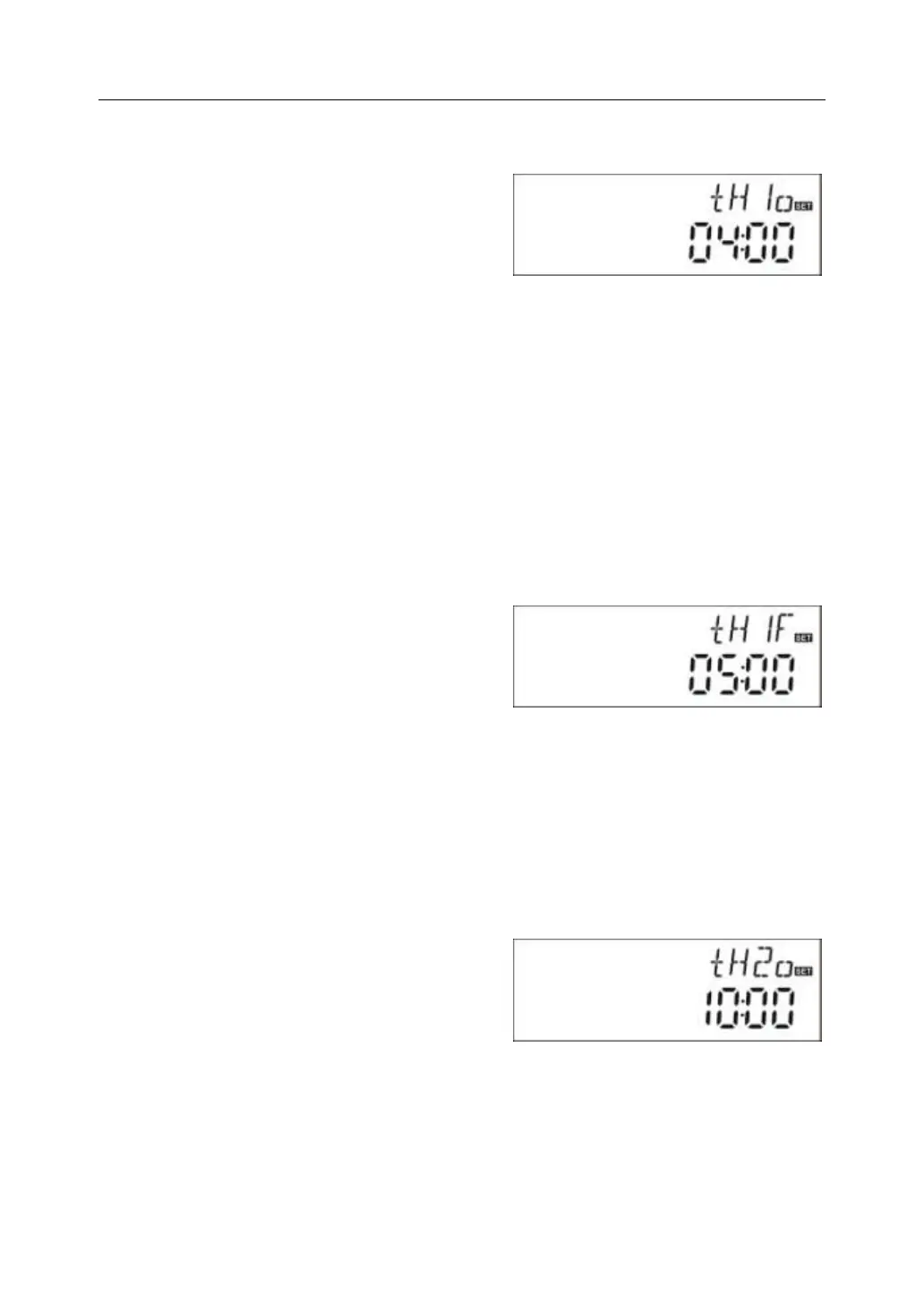

on screen, the switch-on time and temperature for first time section of heating function
can be set
►Repress “SET” button, “04” of hour time
blinks on screen
►Press “+”“-” button to adjust hour of time
►Repress “SET” button again, “00” of minute time blinks on screen
►Press “+”“-” button to adjust minute of time
►Repress “SET” button, temperature “40℃” blinks on screen
►Press “+”“-” button, to set the switch-on temperature of heating
►Then, Press “ESC” to exit this set and to access the switch-off time and temperature
set
►Press “+” button, “tH 1F 05:00” displays on screen, the switch-off time and
temperature for first time section of heating function can be set
►Press “SET” button, “05” of hour time blinks on screen.
►Press “+”“-” button to adjust hour of time
►Repress “SET” button, “00” of minute time
blinks on screen
►Press “+”“-” button to set minute of time
►Repress “SET” button, temperature “45℃” blinks on screen
►Press “+”“-” button, to set switch-off temperature of heating
►Press “ESC” to exit this set program, parameters are saved automatically
-------------------------------------------------------------------------------------------------------------------
►Press“+” button, “tH 2o 10:00” displays on screen, the switch-on time and
temperature for the second time section of heating function can be set
►Press “SET” button, “10” of hour time blinks on screen
►Press “+”“-” button to adjust hour of time
►Repress “SET” button, “00” of minute time
blinks on screen
►Press “+”“-” button to adjust minute of time
►Repress “SET” button, temperature “50℃” blinks on screen
►Press “+”“-” button to adjust switch-on temperature of heating
►Then press “ESC” to exit this set and to access the switch-off time and temperature
set
