Installing the RS485 Module
The RS485 module can be installed in the inverter and in the
Commercial Gateway.
Installing the Module in the Inverter
1. Disconnect the AC power to the inverter and wait 5 minutes.
2. Remove the inverter cover as described in its manual.
3.
Open the gland numbered 1 at the bottom of the inverter.

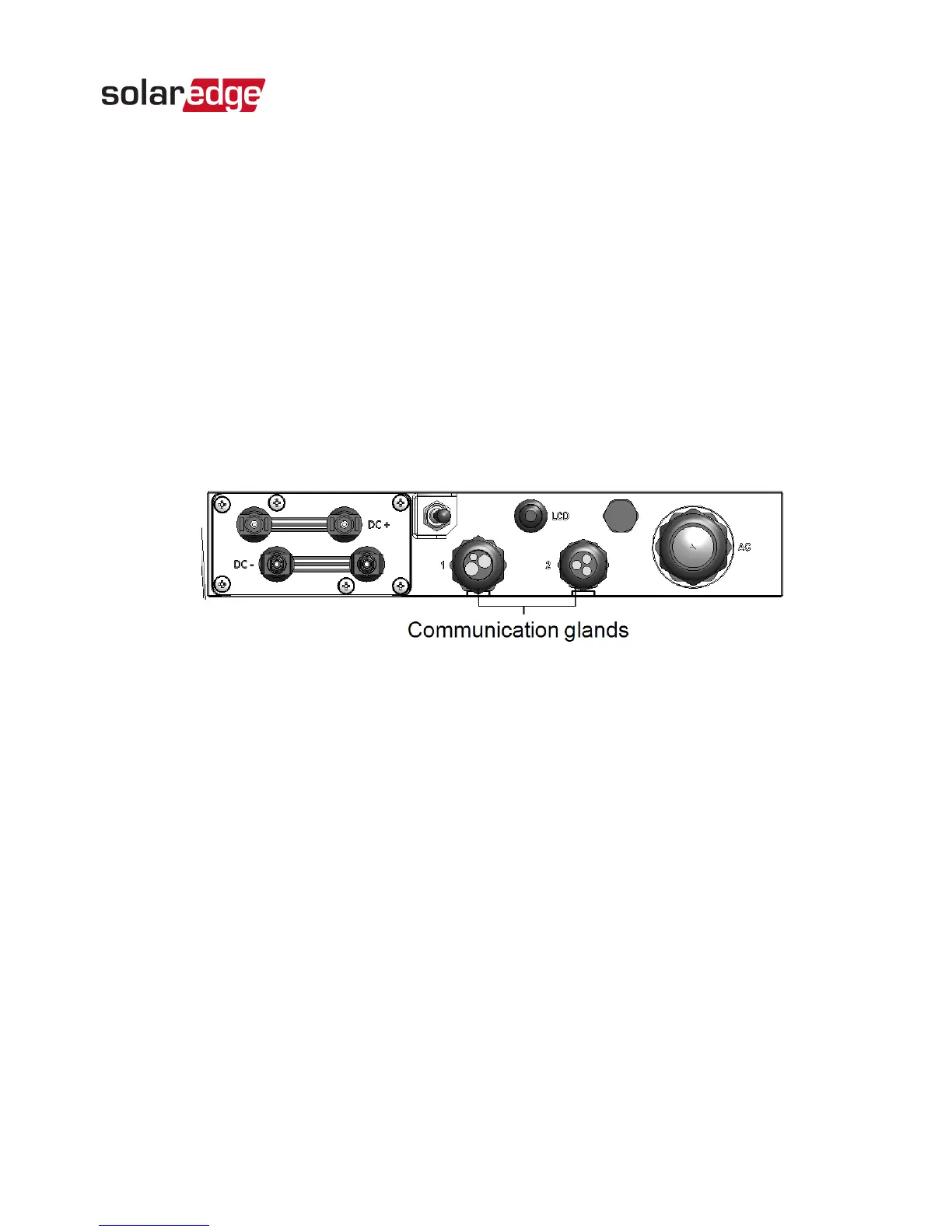

Figure 3: Inverter communication glands
4. Remove the rubber seal from the gland and insert the cable
through the gland cover, the seal, and the opened
connection of the inverter.
5. Insert the rubber seal with the cable into to the gland body
and reconnect the gland to the inverter. Tighten the sealing
gland.
RS485 Expansion Kit Installation Guide MAN-01-00258-1.0
Chapter 2: Installation 10
