Use the marking on the communication board to
plug in the module with the correct orientation.
Insert the module such that all pins are correctly
positioned in the communication board socket, and
no pins are left out of their socket.
Make sure that the module is firmly in place.

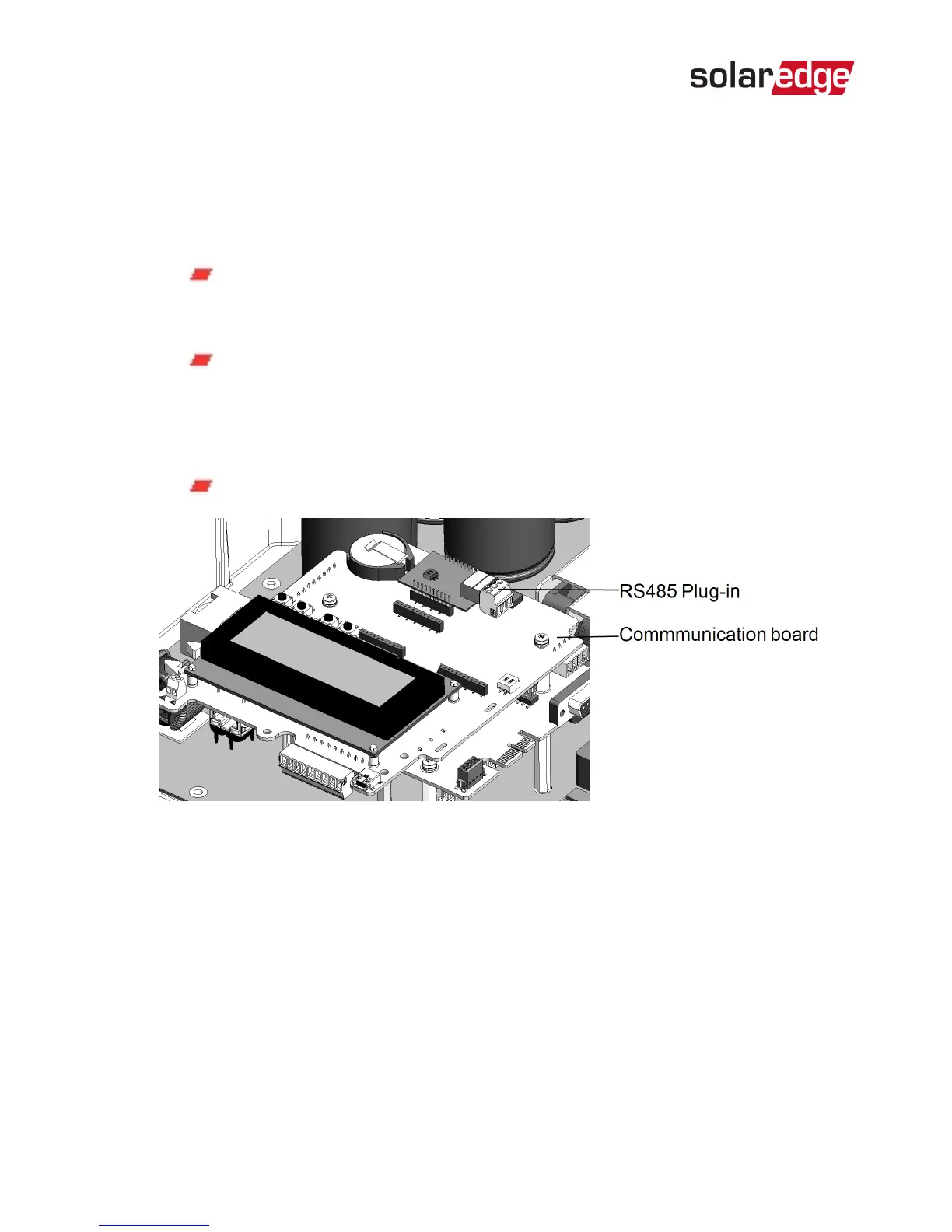

Figure 4: RS485 module installed on the communication board
7. Route the cable towards the module along the
communication board side.
8.
Loosen the screws of pins A(+), B(-), and G on the 3-pin
terminal block.
RS485 Expansion Kit Installation Guide MAN-01-00258-1.0
11 Installing the RS485 Module
6.
Connect the RS485 module in its place on the
communication board, as shown below. Follow these
guidelines:
