SolarEdge RS485 Plug-in User Manual

Installing the Module in the Commercial
Gateway
1.
Remove the Commercial Gatewaycover: Insert a flat
screwdriver into the grooves on the side of the Commercial
Gatewayto release the clasps and carefully remove the
cover.

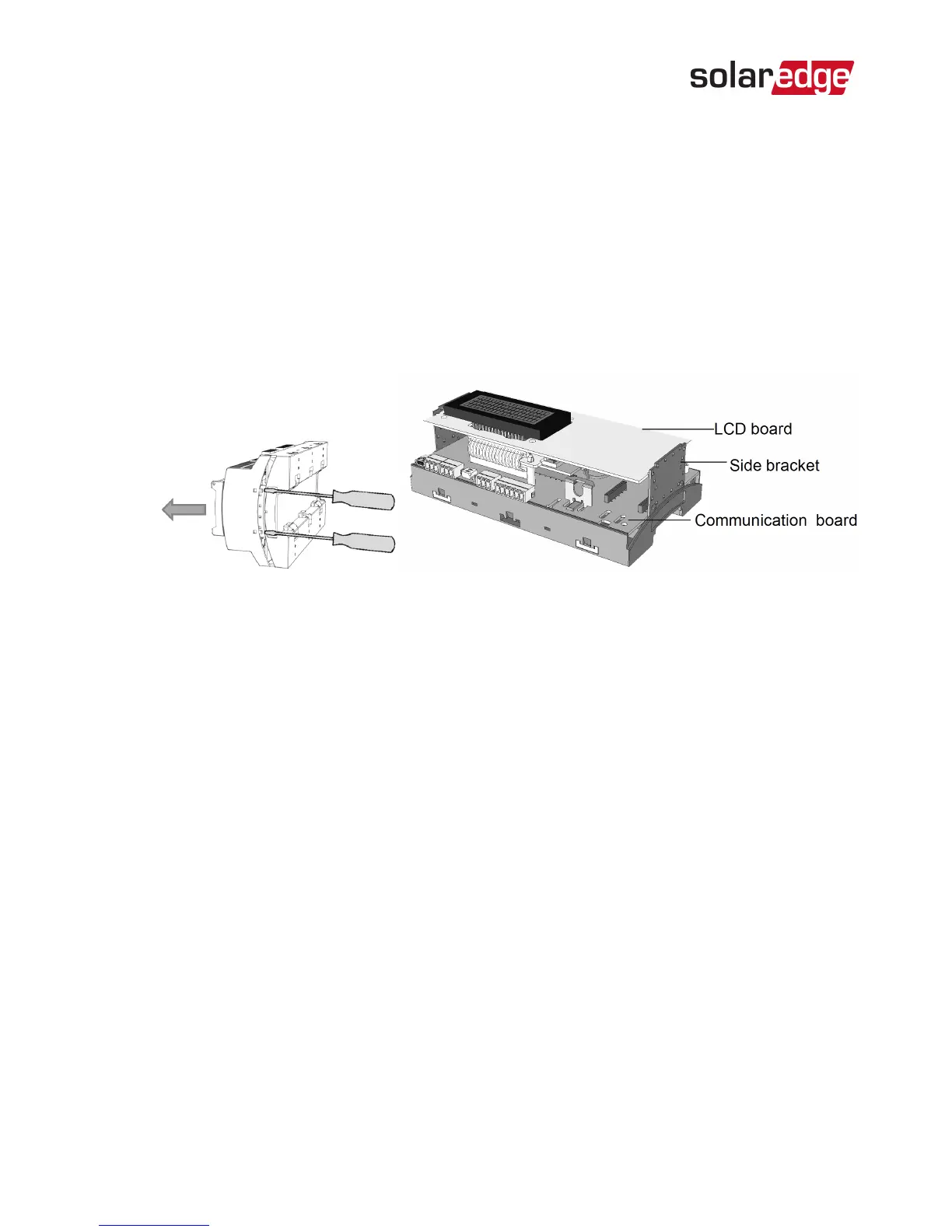

Figure 9: Removing the Commercial Gatewaycover
2. Pull the two Commercial Gatewayside brackets to release
the LCDboard and access the communication board.
3.
Connect the RS485 module to the socket marked "ZB"on
the communication board. Make sure all the pins are
located correctly in the socket.
RS485 Expansion Kit Installation Guide MAN-01-00258-1.0
15 Installing the RS485 Module

SolarEdge RS485 Plug-in Specifications

General

Communication Interface	RS485
Compatibility	SolarEdge inverters
Installation	Plug-in
Category	Cables and connectors
Plug-in Type	RS485
Purpose	Communication between SolarEdge inverters and monitoring systems
Function	Communication
Compatibility with Monitoring Systems	Compatible with SolarEdge monitoring systems
