Mounting the Device
NOTE
Make sure the mounting surface or structure can support the weight of the
device.
1.
Determine the device mounting location, on a wall, stud framing or pole. To allow
access and enable proper heat dissipation, maintain a minimum clearance and a
maximum distance from the inverter, as shown below:

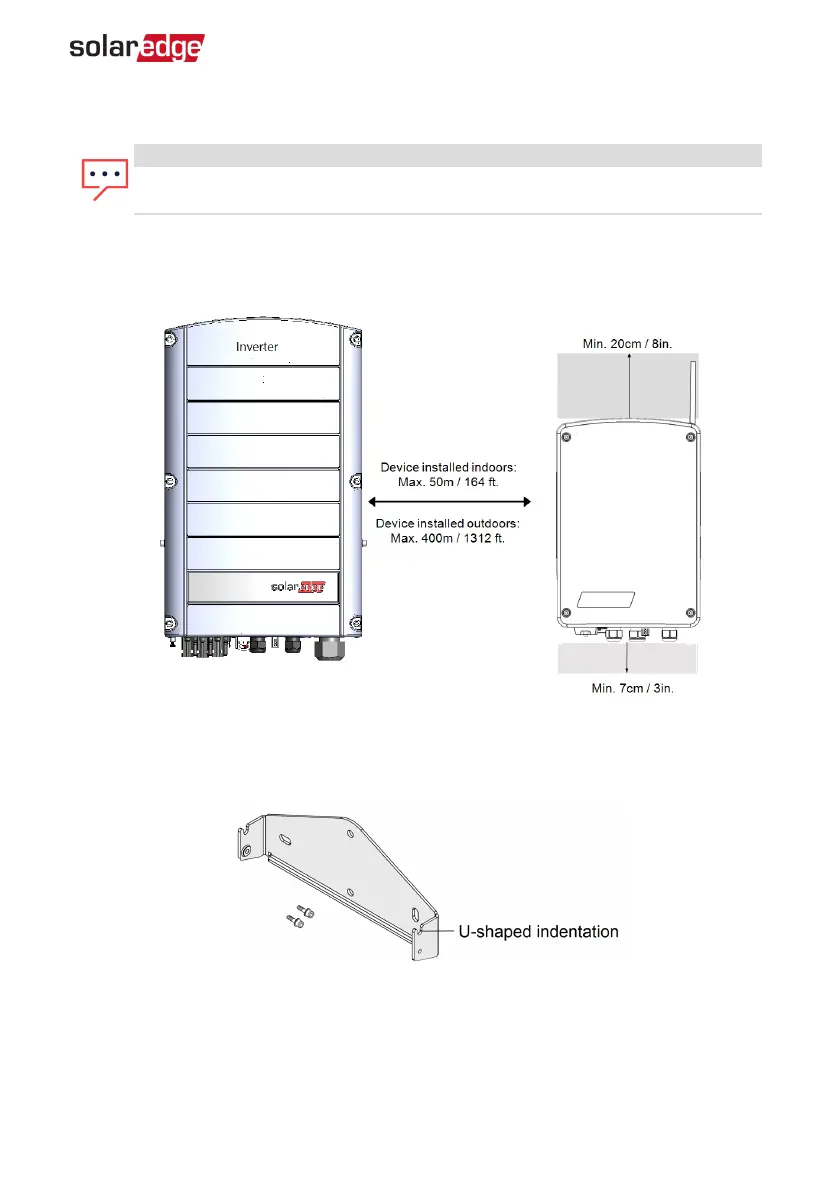

Figure 5: Clearance
2.
Position the bracket against the wall/ pole, level the bracket and mark the drilling
hole locations. Ensure that the U-shaped indentations of the bracket are facing up.
Figure 6: Mounting bracket kit
3. Drill the holes and mount the bracket. Verify that the bracket is firmly attached to
the mounting surface.
Smart Energy Hot Water Installation 13
