SolarEdge StorEdge BI-NUSGN-01 User Manual

To connect to the Grid and Loads panels
1.
Release the six Allen screws of the Backup Interface cover and remove the cover.
NOTE
Do not remove the internal plastic cover (dead front).
2. Install a conduit of the required diameter into the Loads conduit entry. Use the
conduit holder to support the conduit.
3. Install a conduit of the required diameter into the Grid conduit entry. Use the
conduit holder to support the conduit.
4.
Remove the plastic covers from Loads terminals.
5. If required, connect the grounding and neutral bars with the bonding, supplied with
the Backup Interface. Tighten the bonding screws with a torque of 41 lb*in / 4.7
N*m.
6. Pass the cable from the AC Loads panel through the Loads conduit.
7.
Pass the cable from the grid through the Grid conduit.
8. Connect the neutral and grounding wires to the neutral and grounding terminals.
Tighten the terminal screws with a torque of 200 lb*in / 22.5 N*m.
9.
Connect Line 1 and Line 2 wires from the ACloads panel to the loads line terminal.
Tighten the terminal screws with a torque of 200 lb*in / 22.5 N*.

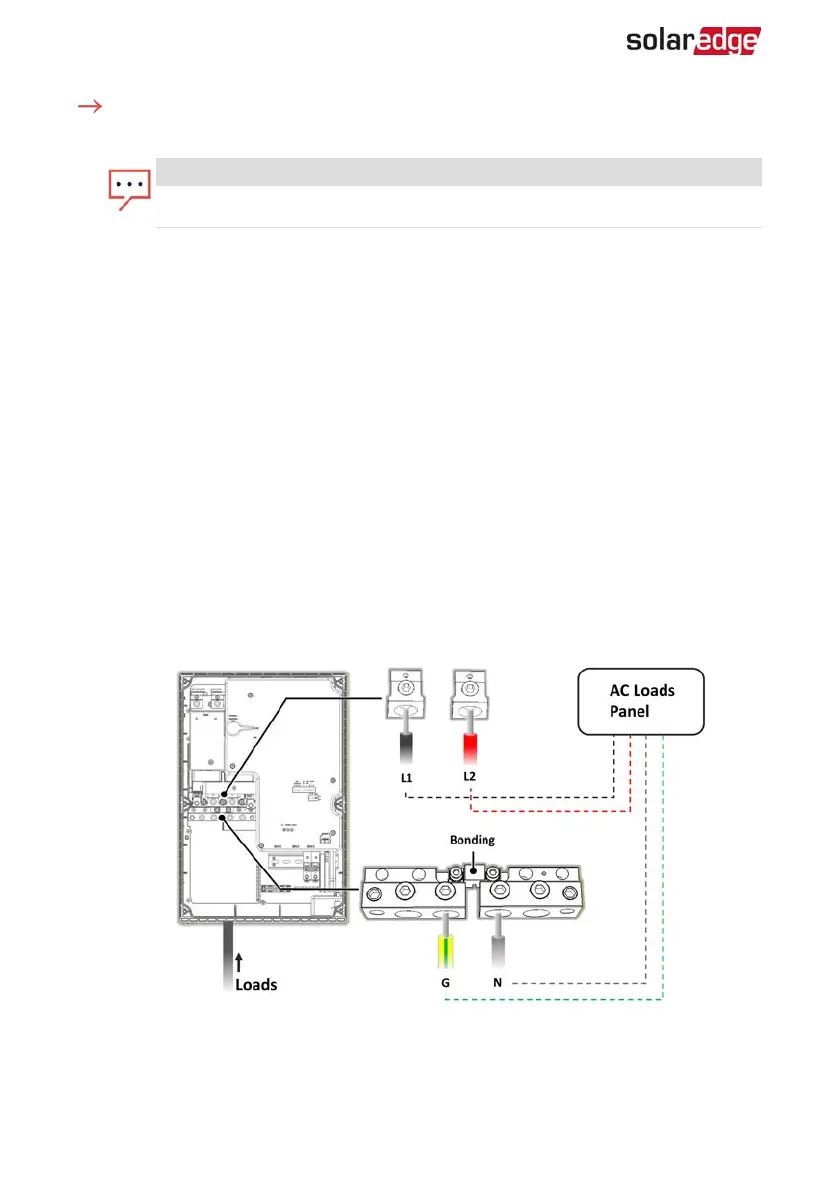

Figure 8: Connection to the ACLoads Panel
Backup Interface Installation Guide MAN-01-00728-1.0
14 Connecting the Backup Interface to the Grid and AC Loads Panel
