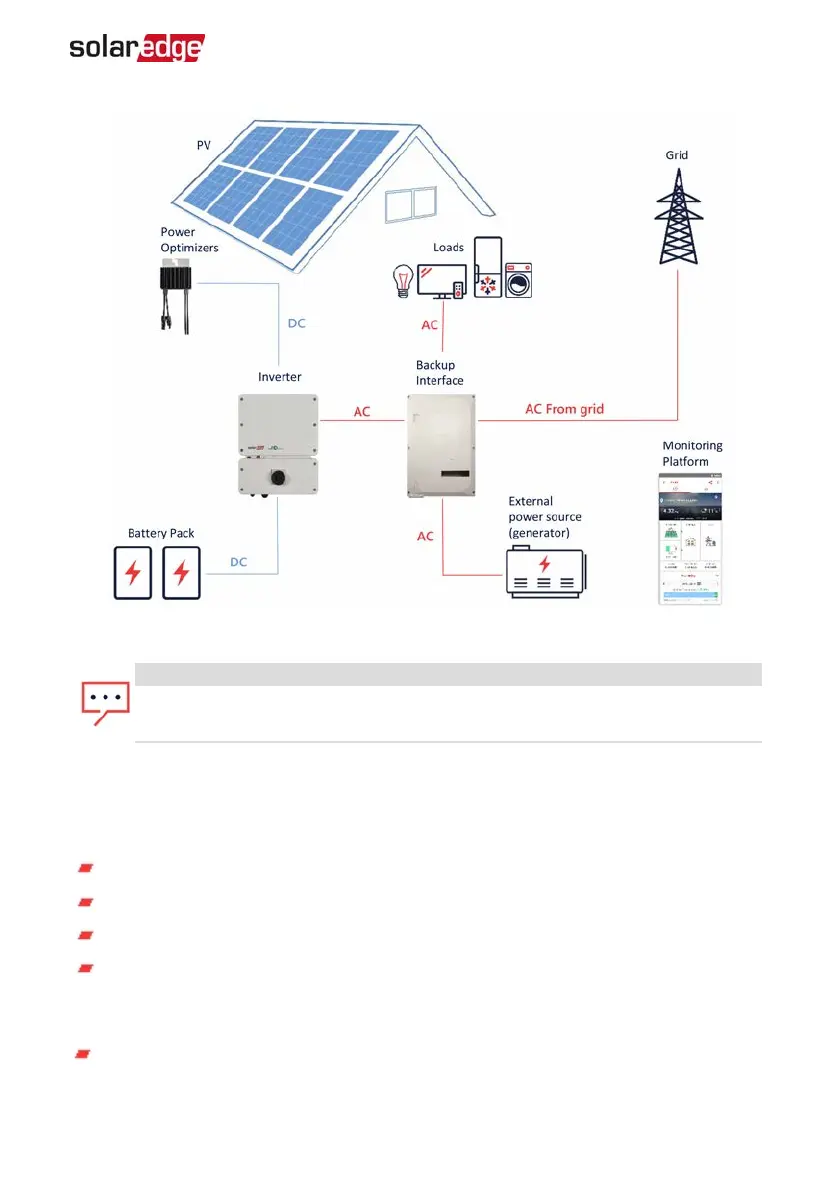

Figure 1: StorEdge system components
NOTE
PV modules connected to power optimizers are not mandatory for charge/
discharge profile programming.
Installation Equipment List
Standard tools can be used during the installation of the SolarEdge system. The
following is a recommendation of the equipment needed for installation:
Allen screwdriver for 5mm screw type for the inverter enclosure screws
Standard flat-head screwdrivers set
Non-contact voltage detector
Cordless drill (with a torque clutch)or screwdriver and bits suitable for the surface
on which the inverter and optimizers will be installed and for opening the StorEdge
Connection Unit drill guides. Use of an impact driver is
not
allowed.
Mounting hardware (stainless bolts, nuts, and washers) for attaching:
Chapter 1: Overview 7
Backup Interface Installation Guide MAN-01-00728-1.0
