Installation Operation Method
28
5.6 Run the Inverter
a) Check that device is xed well on the wall.
b) Make sure all the DC breakers and AC breakers are disconnected.
c) AC cable is connected to grid correctly.
d) All PV panels are connected to inverter correctly, DC connectors which are
not used should be sealed by cover.
e) Turn on the external AC and DC connectors.
f) Turn on the DC switch to the “ON”position.
Start inverter after checking all below steps:
Start the inverter
Inverter will start automatically when PV panels generate enough energy.
Check the status of LED indication and LCD screen, the LED indication should be
blue and the LCD screen should display the main interface.
If the LED indication is not blue, please check the below:
- All the connections are right.
- All the external disconnect switches are closed.
- The DC switch of the inverter is in the “ON” position.
Below is the three status when operating, which means inverter starting
up successfully.
Waiting: Inverter is waiting to checking when DC input voltage from panels is
greater than 80V (lowest start-up voltage) but less than 100V (lowest operating
voltage).
Checking: Inverter will check DC input environment automatically when DC
input voltage from the PV panels exceeds 100V and PV panels have enough
energy to start inverter.
Normal: Inverter begins to operate normally with blue light on. Meanwhile
feedback energy to grid, LCD displays present output power.
Enter the setting interface to follow the instructions when it is rst time to start
up.
Ø
Ø
Ø
29
WARNING!
Power to the unit must be turned on only after installation work
has been completed. All electrical connections must be carried
out by qualied personnel in accordance with legislation in
force in the country concerned.
NOTE!
Please set the inverter if it is the first time to start up.
Above steps are for the regular start of the inverter. If it is the first
time to start up the inverter, you need to setup the inverter.
ENERGY CONTROL
Equipment only to be used for the purpose outlined by SolaX.
6. Operation Method

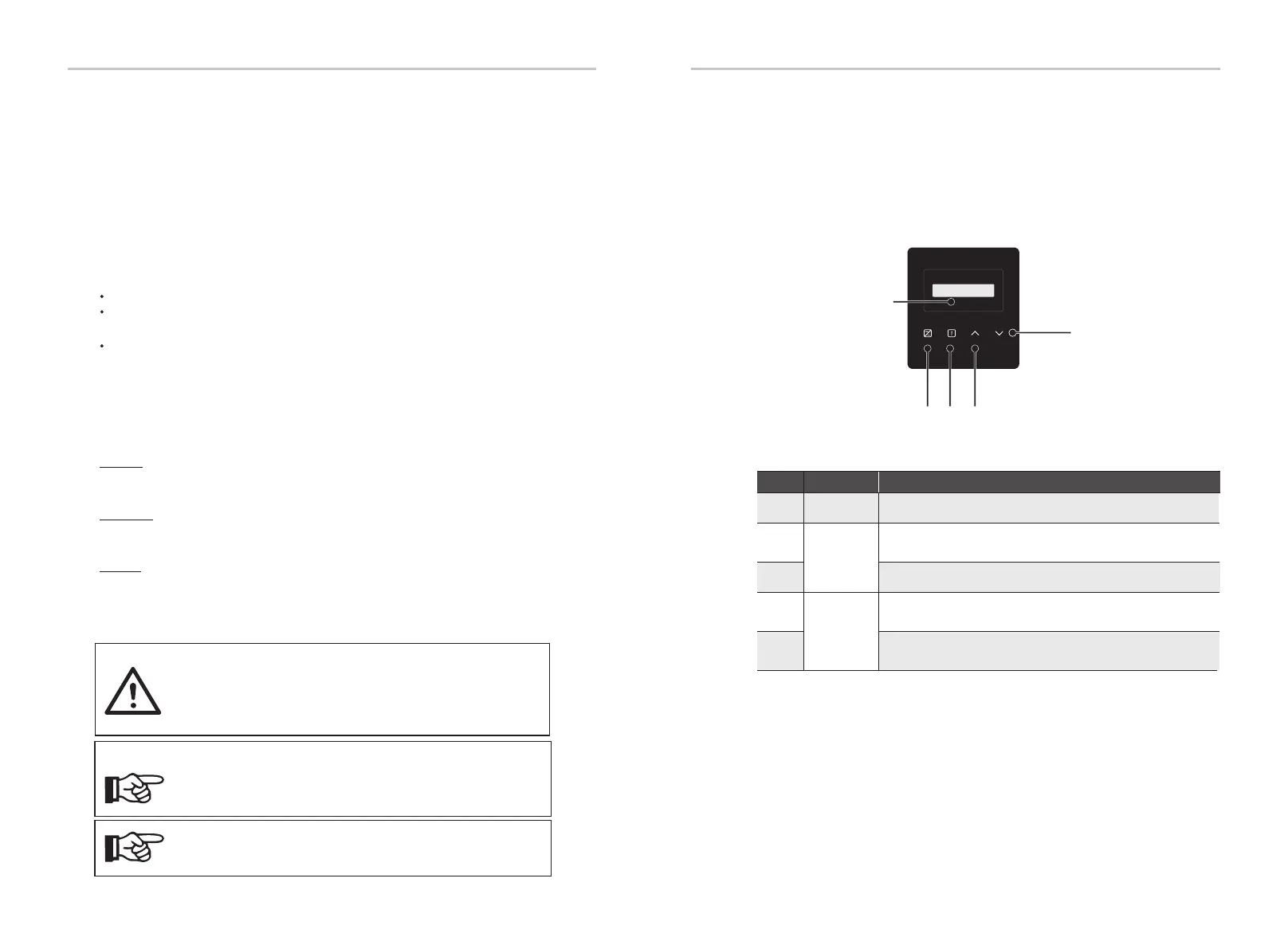

6.1 Control panel
B
C
D
Object Name Description
E
Indicator
LED
Function
Button
Light in blue: The inverter is in normal status.
Flash in blue: The inverter is in waiting status.
Up/ESC button:
Light in red: The inverter is in fault status.
Down/Enter button:
A
LCD Screen
Display the information of the inverter.
A
C
B D
E
X1
Move cursor to upside or increase value.
Return from current interface or function
Move cursor to downside or decrease value.
Conrm and change the parameters.
LCD
Note: The inverter is in “Waiting” and “Checking” status, the blue light “B” is
flickering; when in “Normal” status, the blue light “B” is always on.
