Wiring the cell.
Connect the two black wires from the Power Supply Box
to the two Quick-Connects on the sides of the Cell.
Ensure the connections are perfectly clean of any debris.
Note: these wires are interchangeable.
Wiring the Flow Sensor
Find the sensor cable from the Power Supply with the 2
small connect terminals and push them on their
respective connectors on the Flow and Temperature
sensors. Polarity DOES NOT matter.
Filter
Water
from
pool
Heater
Skimmer

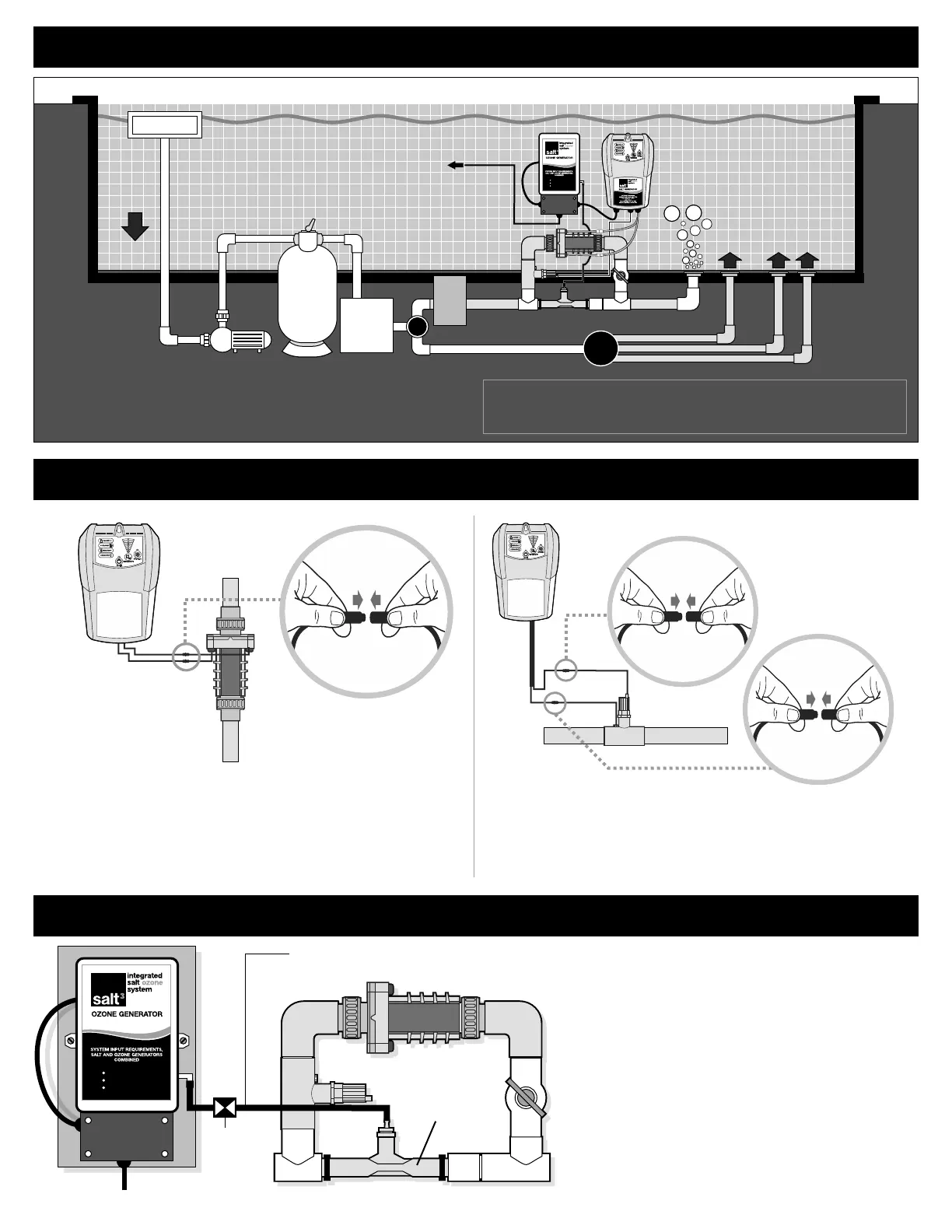

PLUMBING
GENERATOR ASSEMBLY
A dedicated return line is best. Returns to water features
or cleaning systems will not diffuse ozone properly.
CONNECT SALT CELL AND FLOW SWITCH
CONNECT THE OZONE TUBE
To Source Power
Ozone Tube
To Venturi
120/240 VAC
50/60 Hz
2.0/1.1 Amp
Push the tube section onto checkvalve barb
securely and push other end onto barb fitting
onto venturi. Push against stop.
4
Venturi
Check
Valve
To Source Power
120/240 VAC
50/60 Hz
2.0/1.1 Amp
V
Tablet
Feeder
To Next Page
