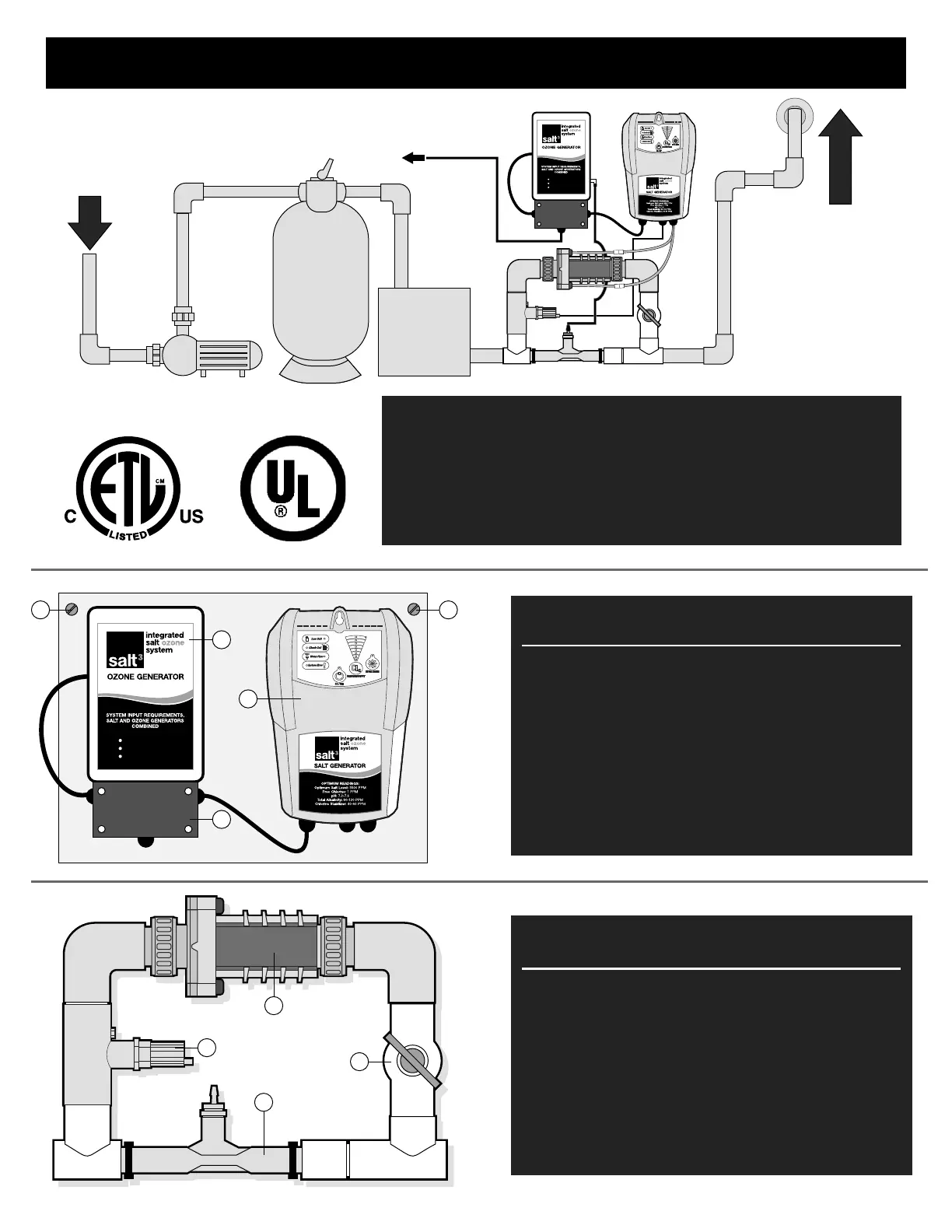

Solaxx Salt3 - SYSTEM OVERVIEW; Generator Assembly; Manifold Assembly

To Source Power
120/240 VAC
50/60 Hz
2.0/1.1 Amp
SYSTEM OVERVIEW
120/240 VAC
50/60 Hz
2.0/1.1 Amp
SPECIFICATIONS
PVC Pipe connections: 2 inch PVC pipe
Input Power: 120/240VAC 60Hz (US);
Power Consumption: 100-240 Volt; 50/60Hz; 2.0/1.1 Amp
Maximum Operating Pressure: 50 psi
Operating Flow Range: 20-100 gpm
Water Return
to Pool
Water From
Pool
Filter
Heater
Generator Assembly
1. Ozone Generator
2. Wiring Junction Box
3. Salt Generator Power Supply
4. Predrilled Mounting Holes
MOUNT VERTICALLY ON WALL CLOSE TO
EQUIPMENT AND POWER.
Manifold Assembly
1. Salt Cell
2. Ball Valve
3. Flow Switch
4. Venturi Injector
MOUNT HORIZONTALLY AS SHOWN
AFTER ALL OTHER EQUIPMENT
(see page 4)
1
2
3
1
2
4
3
3
44
