SOLE F80 - Assembly Steps 5 and 6; Assembly Step 5; Assembly Step 6

10

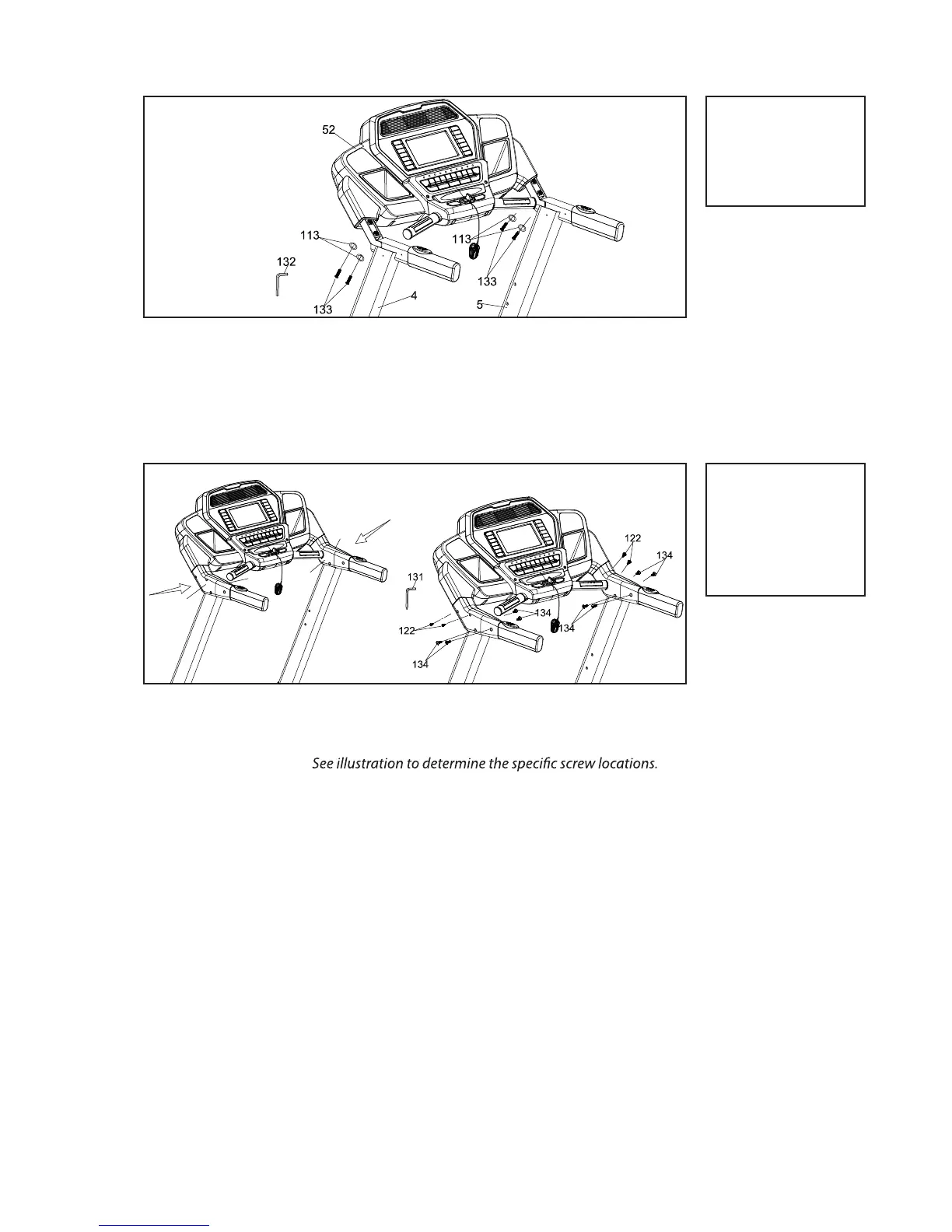

1. Attach the Console Assembly (52) onto the Upright Tubes (4 & 5) and
attach with four Button Head Socket Bolts (133) and four Split Washers (113).
Tighten using the M6 Allen Wrench (132). Tighten completely.
ASSEMBLY STEP 5
5
HARDWARE STEP 5
#133. 3/8”x 1-3/4”
Button Head Socket
Bolts (4 pcs)
#113. Ø 10mm
Split Washers (4 pcs)
1. Attach the Left (63 & 65) and Right (66 & 67)Side Caps to the top of the Up-
right Tubes (4 & 5) with eight Phillips Head Screws (134) and four Sheet Metal
Screws (122). Tighten with the Combination M5 Allen Wrench & Phillips Head
Screw Driver (131).
ASSEMBLY STEP 6
6
HARDWARE STEP 6
#134. M5x10mm
Phillips Head
Screws (8 pcs)
#122. 3.5x12mm
Sheet Metal
Screws (4 pcs)
63
65
66
67
