Solgaz GPC-2 - Gas Installation

7
310±1
min .150
47 0
40
60 0
+1
min.38
495
33 0
110
48

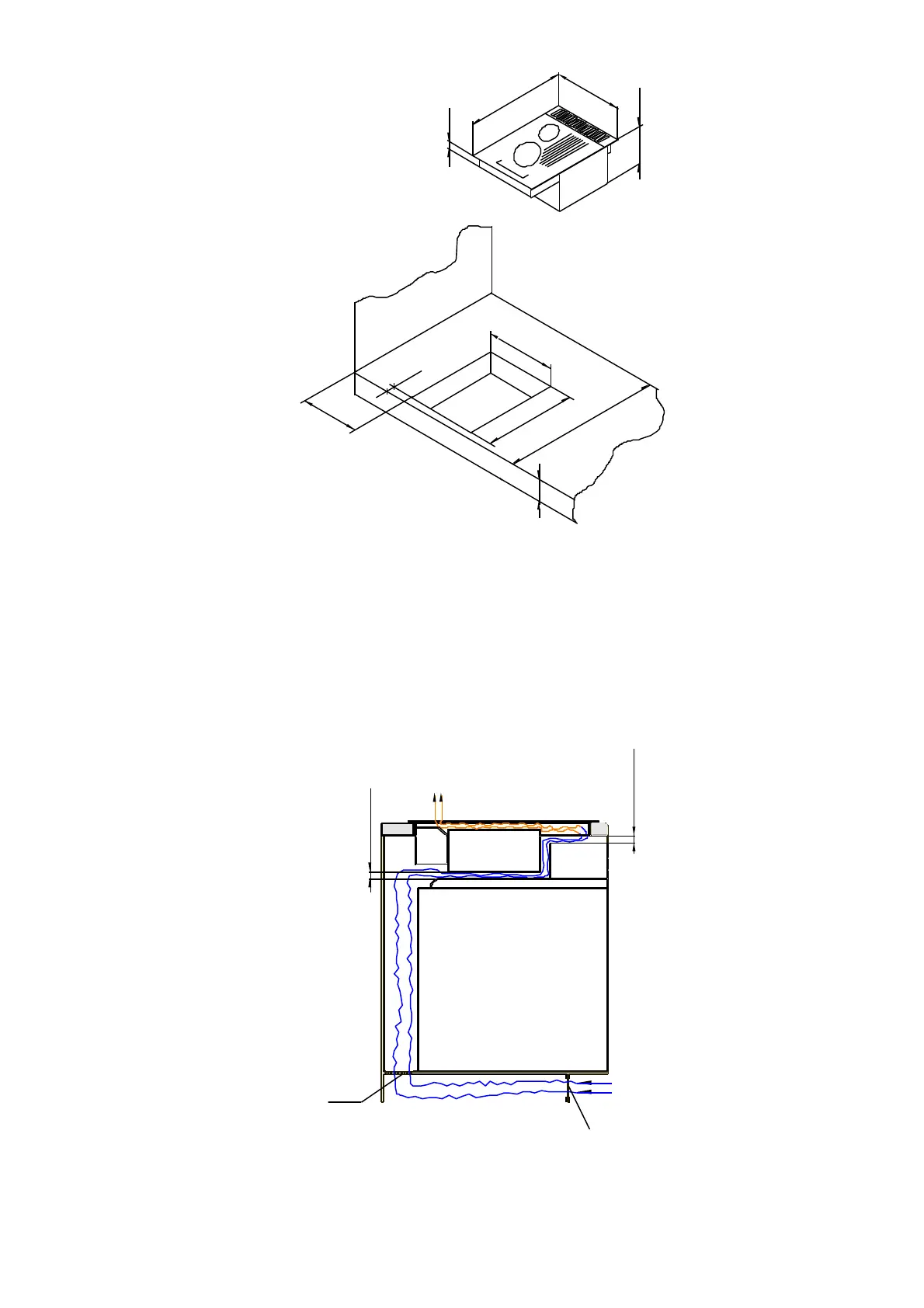

Fig. 3. Instalation
min. 15 mm
min. 15 mm
1
2
3
Fig.4 Hob with oven arrangement
1 – VENTILATION AIR INLET IN THE BOTTOM PART OF THE SHELF; 2 – VENTILATION AIR INLET
WITH MESH; 3 – AIR
