Solid State Logic C100 HDS Specification

C100 HDS. This is SSL.
www.solidstatelogic.com

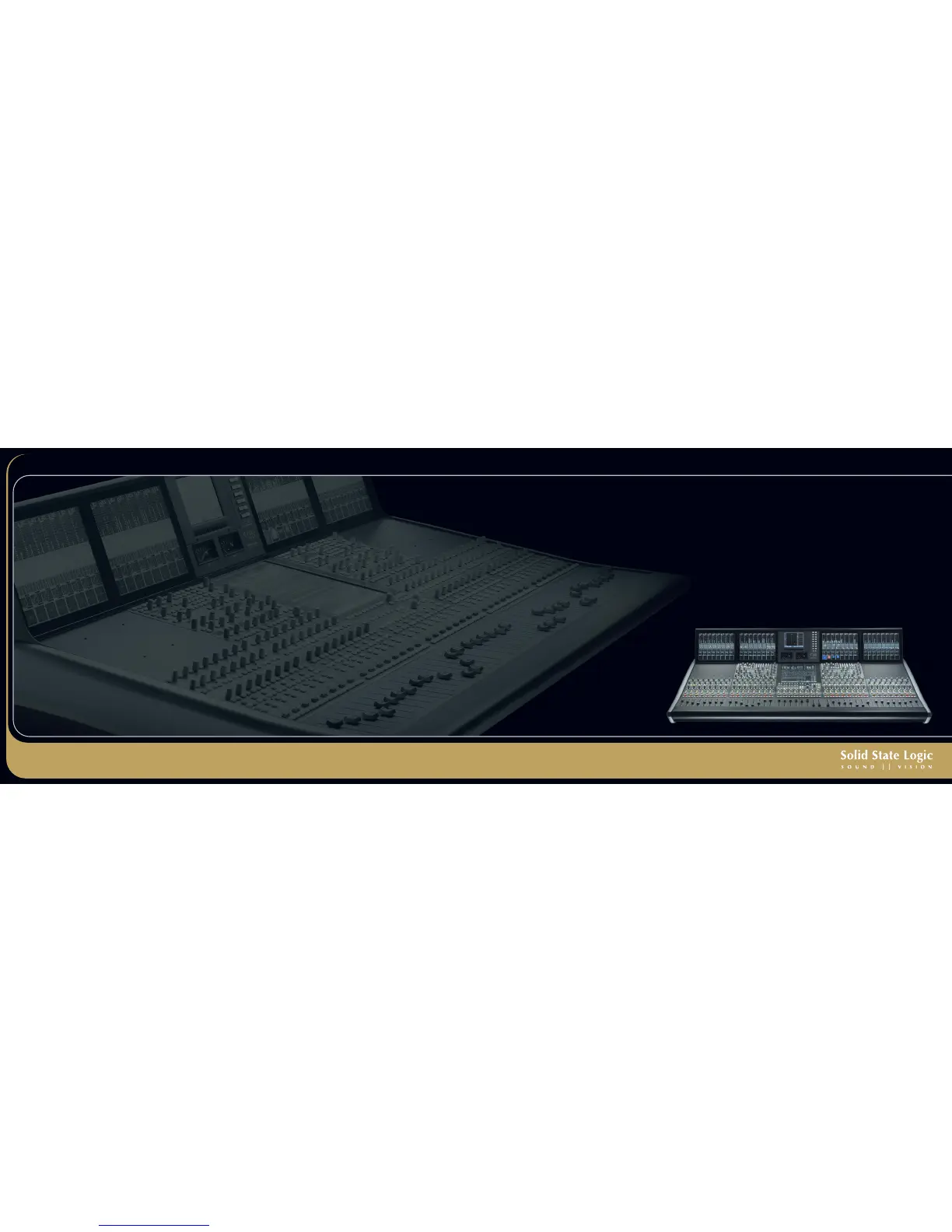

C100 HDS Digital Broadcast Console
On-Air Audio Excellence
• Proven robust reliability & ultimate redundancy with fully mirrored system capability.
• Scalable Control Surface, modular I/O and upgradable virus proof processing power.
• Ergonomically advanced control surface that is elegant, comfortable, logical and freelance friendly.
• ‘C-Play’ - integrates a fully featured spot and music Playout system into the console.
• ‘Dialogue Automix’ - automates the task of riding the faders to maintain a smooth, balanced mix in the fast paced environment of a live multi mic talk show.
• Advanced remote control capability with Grass Valley Ignite, Ross Overdrive, Sony ELC & Mosart Production Automation, Pro-Bel protocols and extensive GPI parameter control.
• DAW control delivers better ROI via post production during down time.
• Comprehensive 5.1 production tools with superb metering, monitoring, bussing, single fader control, intuitive panning and 5.1 Upmix.
• Unrivalled pre and post sale support, professional installation and exemplary training from SSL’s renowned worldwide support network.
HD Production Powerhouse
C is built upon the solid foundations of SSL’s benchmark audio quality and provides
a comprehensive set of powerful audio processing tools to give the broadcast engineer
everything required to deliver perfect audio every time. With C you will always be
condent that your console sounds great and you will have the tools and processing
power you need to get the job done. The C100 control surface benets from over three
decades of design experience and oers an elegant, comfortable, flexible and logical
working environment that is freelance friendly. Based around a combination of
dedicated and assignable hardware controls, TFT channel information displays and a
central touch screen, the C makes the advanced processing, routing and monitoring
capabilities of the system easy to access, control and congure.
C meets all of the demands of 5.1 HD audio production with an extensive
specialised .  production feature set including; freely congurable mono, stereo or
. channels, elegant single fader handling of . stems (and multi fader spilling), per
channel . metering, . bus architecture… and ‘. Upmix’.
‘5.1 Upmix’ is an optional feature which automatically creates
a convincing . stem from any stereo source. It provides
front/rear and width control, can be applied per channel or to
busses and features . down-mixing… all without the
unwanted artefacts oen produced by other upmix systems.
SSL’s ‘Dialogue Automix’ option solves the task of riding the
faders to maintain a smooth, balanced mix in a live multi-mic
talk show. Once a relative level has been set for each
channel, Dialogue Automix provides soware driven
automation of this process, eliminating missed upcuts as
operators struggle to match the pace of the show. The system
also maintains unity gain throughout the show ensuring that
levels of background noise remain evenly balanced.
The SSL ‘C-Play’ option embeds a fully featured music and spot Playout system into the
console. It provides signicant ergonomic and workflow advantages with console
hardware control and all Playout settings recalled as part of a console Project.
The C Production Automation implementation supports Grass Valley Ignite,
Ross Overdrive, Sony ELC and Mosart Medialab systems making the audio production
power of C available for remote control in situations where no dedicated audio
operator is required.
SSL’s DAW control enables the console to be used for post production duties during
studio down time to deliver extended return on investment.
Detailed feature information for C is available online at www.solidstatelogic.com/C100
Detailed Product Specications and Documentation are available from SSL.
Around the world, the highest prole broadcast organisations rely on C to
deliver reliable, sonically superb audio performance. C is a fully scalable
Console, Processing and I/O system designed to enable experienced audio
engineers to meet the challenges of even the most demanding HD production
applications. Proven reliability, and fully mirrored redundant system
conguration mean C provides total reassurance of system integrity. C is
ideal for mid to large scale broadcasters and oers elegant multi studio, multi
control room audio asset sharing, controlled from the console. The C
compact convection cooled frame also makes it an optimal solution for OB
Vehicle installation. C consoles are in use for News, Sports, Entertainment
and Broadcast Production every day, all over the world.

Solid State Logic C100 HDS Specifications

Power

console power	100-240 V AC
power consumption	300-700 W

DSP and Audio Processing

maximum input channels	256
second input path channels	512
utility busses	24 mono
aux busses	24 mono
dedicated ASG buses	16
dedicated PGM buses	12
delay modules	64 modules, 5.4 seconds each

Weight and Dimensions

max height	100.6 cm
weight (40 fader)	190 kg
height adjustment	0 to +1 cm
width (40 fader, flat end trim)	143.1 cm
max depth	92.6 cm
