Solid State Logic C100 HDS Specification

C100 HDS. This is SSL.
www.solidstatelogic.com

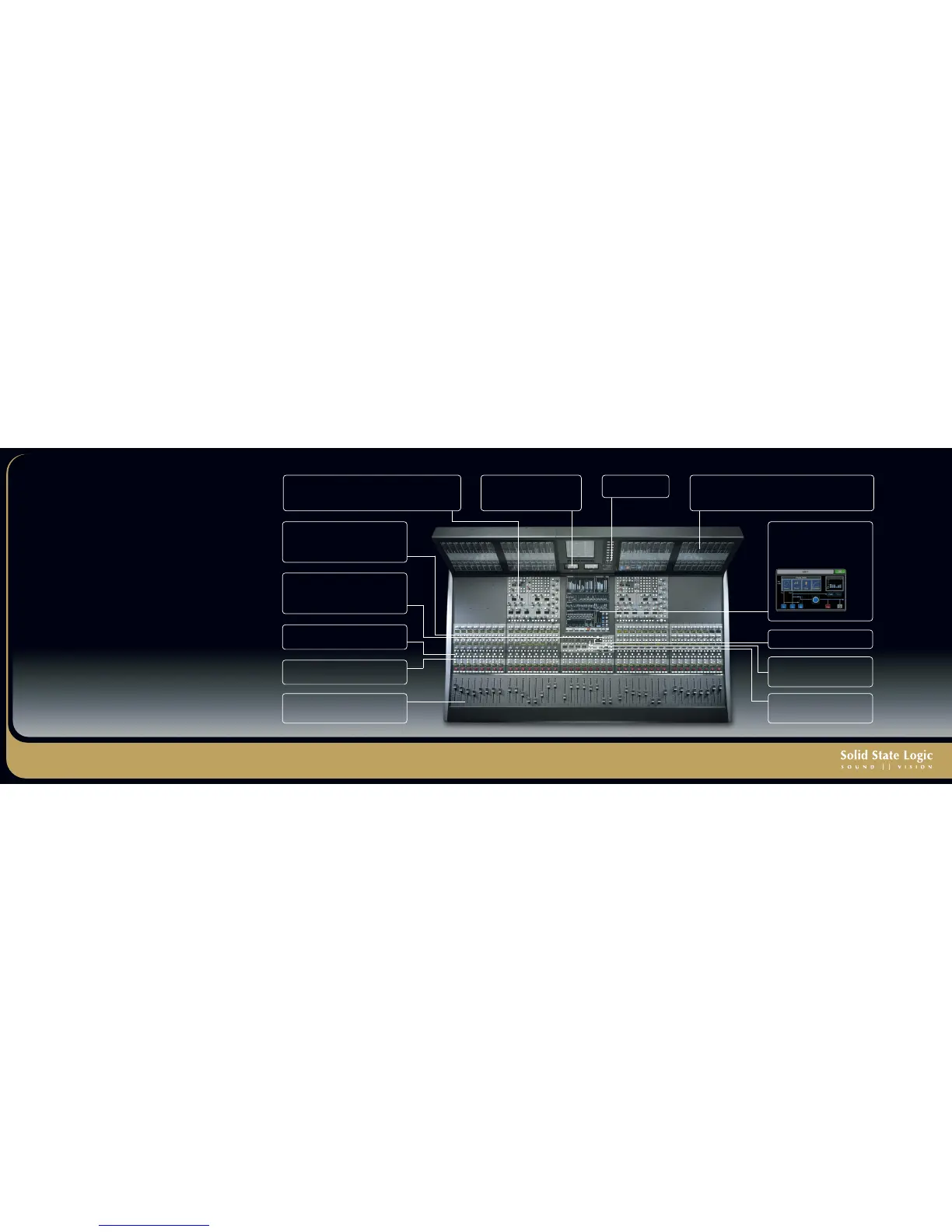

C100 HDS. Control Surface
Ergonomic Elegance
The advantages of both assignable and dedicated control philosophies are blended on
the C’s control surface, with denable Free controls and the dedicated Master
Channel and Fader Strip.
• Freely configurable mono, stereo and 5.1 channels with flexible processing order
• Scalable control surface with up to 80 fader strips plus master section
• Master Channel controls may be fitted in each bay, allowing hardware redundancy
and multiple points of access
• Simple setups for each show through touchscreen or graphical offline configuration
• Channels arranged in layers, with control of the active layer below the touchscreen
with infinite layers available
• ‘Expand’ button spills multichannel and VCA control group breakouts
• Rearrange channels or ‘clone’ a channel to all layers, even while on-air
• Unique graphical front panel management provides redundant access to processing
• SSL’s unique Control Linking
TM
feature allows per-channel recall of all default
settings for a source when routed to an input
Master Channel Panel
• Dedicated sections for control of inputs,
bussing, outputs, EQ, Dynamics, Filters,
Delay, Insert and Aux sends
• Colour coded for fast recognition
• Broadcast-specific feature set
• Optional multiple unit hardware
redundancy
• Ergonomic design and excellent overview
Output meters
• Choice of electronic and mechanical metering
• 2, 6, or 8-channel phasescope
• VU meters
Fader Section
• Motorised faders
• Slim 30mm fader pitch
• GPI control
• Reset and layer protection
• User-programmable
backstop PFL
Traditional controls
• Dedicated AFL, PFL and ON buttons
• Pan control and 8-character fader name
Special access
• Channel Link provides A/B fast channel flip
• ‘Expand’ button spills multichannel breakouts
Free controls
• Dedicated channel controls are assignable to any Master
Channel parameter
• May be used for GPI control
• 4-character display for name/value
• Controls can be toggled between multiple layers
Touchscreen
• Permanent level and gain displays for all busses
• Colour coded tone and talkback indicators
• 4-way monitor source selector
• Session management functions
• Touch-activated parameter display and
adjustment:
Soft Keys
• 60 (10 x 6) definable buttons may be cloned
from touchscreen functions
• User defined four character labels
System status
• Main and backup PSU status
Bus and layer control
• Access to all channel layers
• Access to group master, ASG, and PGM faders
• Monitoring and communications bus trims
Monitor controls
• Main (5.1), Mini (stereo) and PFL (stereo) outputs
• Phase and L/R reverse, monitor flip and mono functions
• 5.1 insert with separate alternate stereo return
• Individual monitor cuts/solos
• Integrated talkback microphone
User Layers
• Customise layouts for instant recall
Channel meter and status display
• Mono/stereo/5.1 meter on every channel
• Choice of 5 meter points
• Input level and Dynamics Gain reduction
• Dialogue Automix activity display
• Process matrix and bus routing
• Dynamics, EQ and Filters graphs
• Aux Send level and Pan status
• Main, Alternate, Insert and Fader names

Solid State Logic C100 HDS Specifications

Power

console power	100-240 V AC
power consumption	300-700 W

DSP and Audio Processing

maximum input channels	256
second input path channels	512
utility busses	24 mono
aux busses	24 mono
dedicated ASG buses	16
dedicated PGM buses	12
delay modules	64 modules, 5.4 seconds each

Weight and Dimensions

max height	100.6 cm
weight (40 fader)	190 kg
height adjustment	0 to +1 cm
width (40 fader, flat end trim)	143.1 cm
max depth	92.6 cm
