Solid State Logic C100 HDS Specification

C100 HDS. This is SSL.
www.solidstatelogic.com
ASG busses provide 8 stereo, or twin 5.1 plus twin
stereo group busses, with dynamics gain reduction
meter and PGM routing indicators
Dynamic display area changes according
to selected function

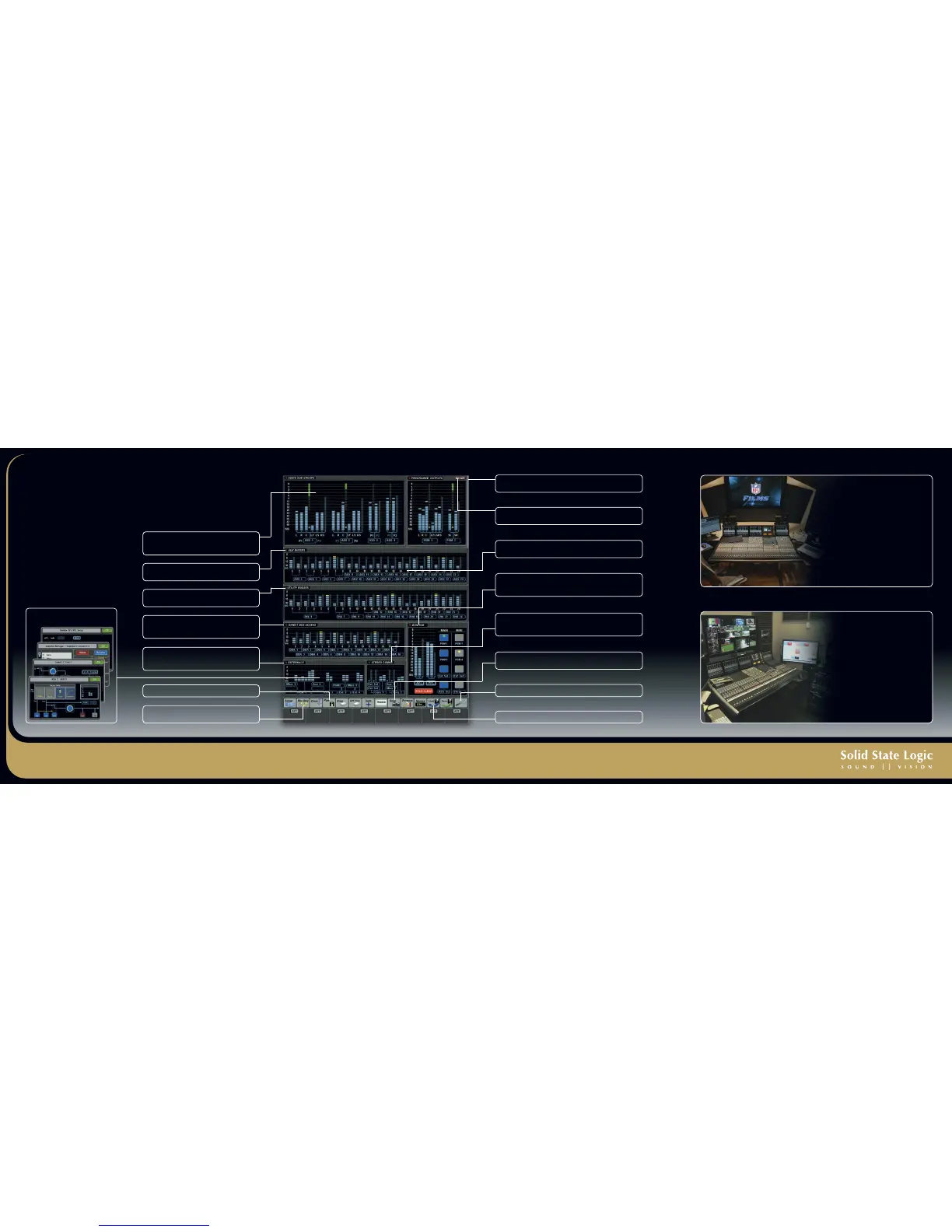

Intuitive Touchscreen Control
The central touchscreen provides permanent, simultaneous metering of all output feeds and
additional input resources, plus access to conguration tools. All outputs have integral tone
and talkback injection, with signal level bargraph, output gain indication, and bus name tag
for each. In addition, any output bus may be fader-controlled.
PGM outputs provide 2 outputs in stereo and/or 5.1, with dynamics gain
reduction meters and simultaneous stereo and mono downmix feeds
Reverse Bus feature allows overview and control of
channel contribution to selected bus
Four external selectors each have 12 inputs and provide
fast switching for monitor loudspeakers, headphones
etc. in 5.1 and stereo
24 Utility busses provide additional 5.1, stereo or mono
IFB, record and submix capability
The ON AIR indicator is driven from internal ‘Mic Live’ logic or triggered
externally. It may also be signalled through any GPI output
24 pre/post Aux busses allow stereo linking between
pairs, or mono use and advanced aux to fader features
Active talkback is indicated by busses turning green, and active tone is
indicated by busses turning red, for immediate visual feedback
16 Direct Bus Access (DBA) inputs allow injection of
signal to any and all busses, for submix inputs, FX
returns or comms injection
Additional functions including Snapshot reset, bus naming and Free
button assignment
The Monitor section shows activity, gain and signal levels for the stereo
AFL and PFL busses, plus 4-way source selectors for both main 5.1 and
mini stereo loudspeakers
2 stereo Comms mixers combine dual stereo inputs and have an auto-
mute function that may be triggered by the On-Air logic, for studio
loudspeaker applications
Touch Pan provides fast and precise 5.1 pan positioning
The ‘Spanner’ icon leads to diagnostics and system setup
Direct Load and Save functions for the easy access to console set ups
NFL Films - USA
“SSL consoles are designed from
the end user point of view making
our transition from analogue to
digital easy”
Rich Markowitz
Director of Audio Engineering
Golf Channel - USA
“Once our engineers have
programmed in the settings for one
of our internal productions, we can
take that Preset and apply it to any
of the three consoles. This gives us
huge flexibility for scheduling
multiple productions.”
Ken Botelho
Senior Director of Engineering

Solid State Logic C100 HDS Specifications

Power

console power	100-240 V AC
power consumption	300-700 W

DSP and Audio Processing

maximum input channels	256
second input path channels	512
utility busses	24 mono
aux busses	24 mono
dedicated ASG buses	16
dedicated PGM buses	12
delay modules	64 modules, 5.4 seconds each

Weight and Dimensions

max height	100.6 cm
weight (40 fader)	190 kg
height adjustment	0 to +1 cm
width (40 fader, flat end trim)	143.1 cm
max depth	92.6 cm
