THE BUS+ User Guide
Troubleshooting
UID Display

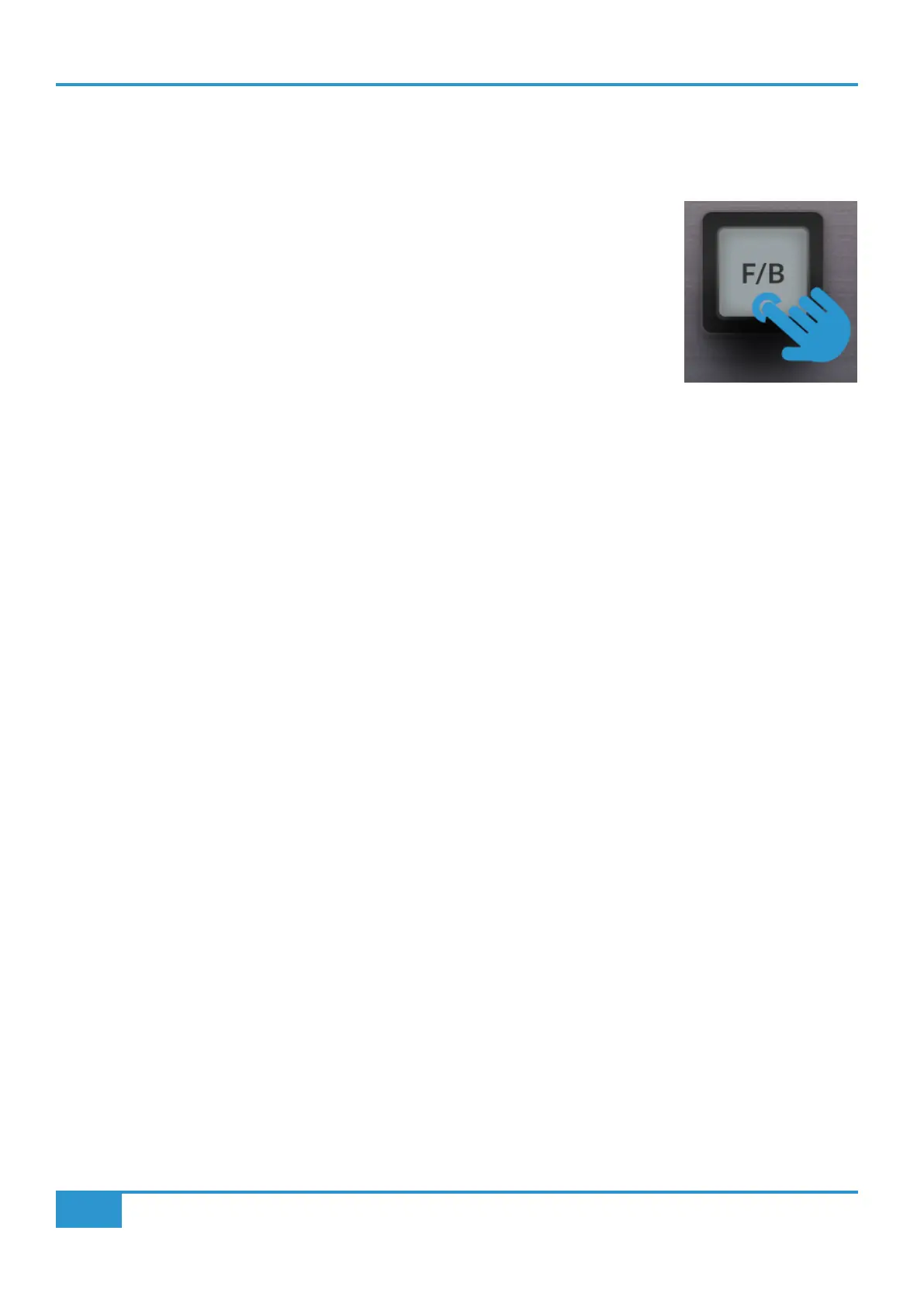

UID Display Mode displays the UID number of the firmware currently in use and the hardware
revision of both main card and front panel card. To enter UID Display Mode, press and hold the
left-hand side F/B switch during the power-up sequence.
Number of digits for each item:
• Firmware UID: 5 digits number
• Mainboard HW revision: 1 digit number
• Frontpanel HW revision: 1 digit number
Digit selection is performed via dedicated switches:
FW UID 1st digit: Low THD Left
FW UID 2nd digit: FB Left
FW UID 3rd digit: 4K MODE Left
FW UID 4th digit: 4K MODE Right
FW UID 5th digit: FB Right
Main board HW revision: LF FAST Left
Front panel HW revision: LF FAST Right
Once the required digit is selected, the information is obtained by counting the number of indicator LEDs lit up GREEN.
E.g. if the current digit is “3”, this will be indicated by POST D-EQ , MAKEUP FINE , EXT S/C COMP LEDs all lighting green.
The indicators involved in this process are as follows (in increasing order):
• POST D-EQ L (1)
• MAKEUP FINE L (2)
• EXT S/C COMP L (3)
• EXT S/C DEQ L (4)
• CLASSIC STEREO (5)
• SUM SC STEREO (6)
• DUAL MONO (7)
• MID SIDE (8)
• EXT SC COMP (9)
If no indicator is lit, the current digit is “0”.
To exit, press and hold the MODE key and the unit will power cycle.
