Hardware Overview
7
THE BUS+ User Guide
Hardware Overview
This page provides a brief overview of The Bus+ hardware. The tutorial section covers each control in more detail.

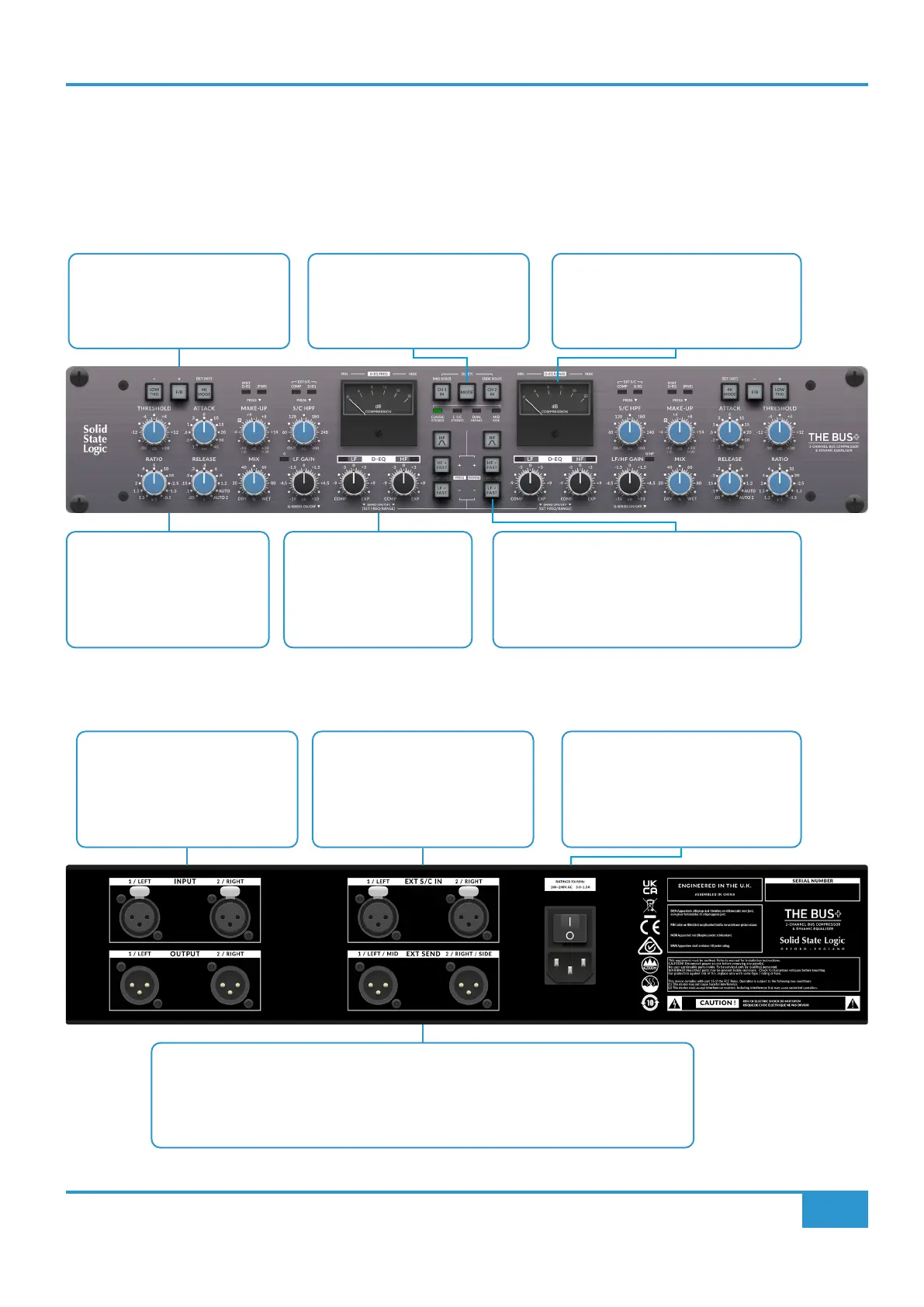

Front Panel
Rear Panel
BALANCED XLR INPUTS &
OUTPUTS
Connect The Bus+ as a hardware
insert across your audio interface or
analogue desk.
MODE
Determines the mode of operation.
Choose from Classic Stereo, � S/C
Stereo, Dual Mono or Mid Side.
MOVING-COIL METER
Displays Gain Reduction for the Bus
Compressor or Frequency/Range settings
when configuring the D-EQ.
D-EQ SWITCHES
The array of 3-switches affect the time constants
of the Dynamic Equaliser side-chain (HF FAST, LF
FAST). The HF BELL changes the high-frequency
band filter from shelving to bell.
BUS COMPRESSOR SWITCHES
Special Bus Compressor features,
unique to The Bus+ : LOW THD, F/B,
4K MODE.
D-EQ CONTROLS
(BLACK KNOBS)
2-Band Dynamic Equaliser.
Controls for Compression/
Expansion and LF/HF Gain.
BUS COMPRESSOR
CONTROLS
(BLUE KNOBS)
Bus Compressor side-chain, Mix
and Gain Make-up controls.
EXT S/C IN - EXTERNAL SIDE-
CHAIN INPUTS
Connect external sources you would
like to trigger the side-chain from.
AUTO-RANGING POWER SUPPLY
Simply connect the IEC to a mains
power socket and use the rocker switch
to power on/off.
EXT SEND - SIDE-CHAIN SEND
Allows for creative duplication of the input signal. This could be used to feed an external
processing unit such as an EQ, returning the processed signal into the EXT S/C IN. Or, it could
be used to access the encoded Mid and Side signals, when using the unit in Mid Side mode.
