Solid GENESIS DAS - System Configuration and Functions; Low Power Radio Node (LRN) Overview

GENESIS
TM
DAS Operation Manual - Version 0.0 – Jan. 2019
©2019 SOLiD, Inc. All Rights Reserved. Confidential & Proprietary. Page 16
System Configuration and Functions
The LRN is active modular and multi-band upgradeable antenna unit. It supports four (2) sub-modules
which are replaceable in a SOLiD certified facilities by SOLiD certified personnel. The mix of service
bands can be achieved, for example, six (6) different bands are available. The composite RF power per
band is 15dBm(below 1GHz), 20dBm(upper 1GHz) and 17dBm(2300W Band).

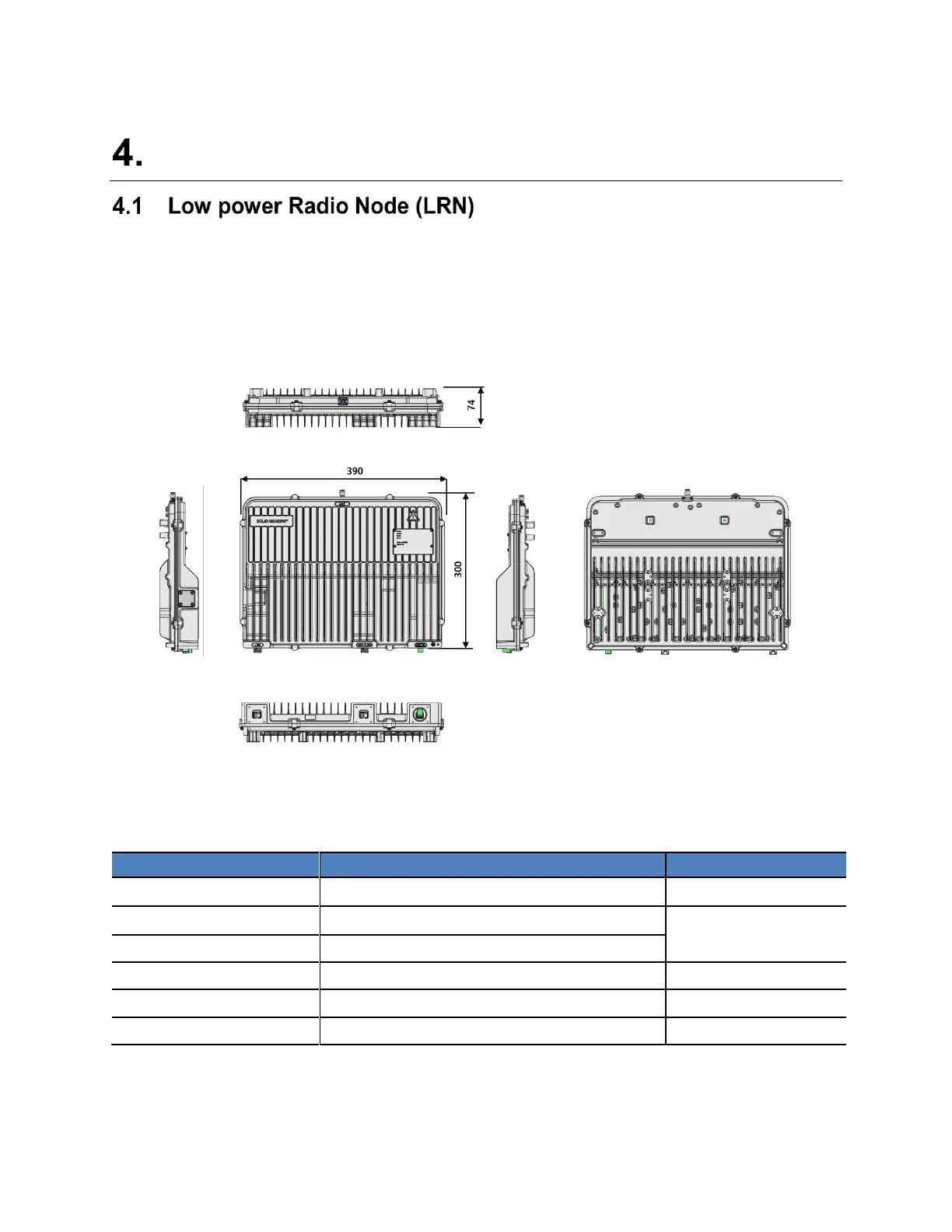

Figure 4.1 LRN Front, Side and Rear Views
4.1.1 LRN Specifications
Item
Specification
Remark
Size, mm
390 x 300 x 74
Weight, kg
7.5
Full Load
Power Consumption, W
75
Operating Temperature, C
-25 ~ 45
Operating Humidity, %
5 ~ 90
Rating IP
IP 20 or IP66(OPTION)
