GENESIS
TM
DAS Operation Manual - Version 0.0 – Jan. 2019
©2019 SOLiD, Inc. All Rights Reserved. Confidential & Proprietary. Page 24
LRN POWER CABLING
The LRN can use DC power supply from HOU. Power cables DC are not provided because different
length of cables depends on field situation and different types of jack in each country.

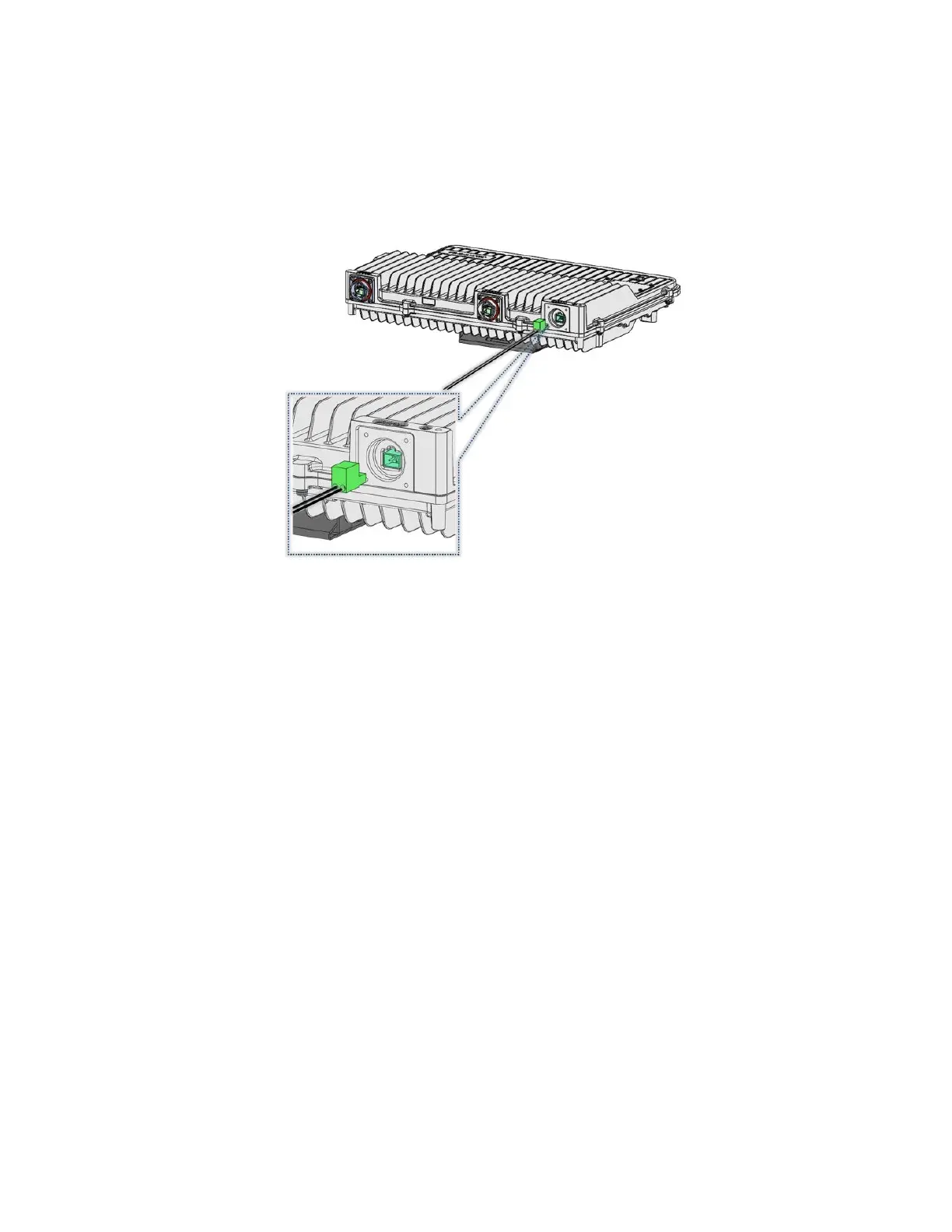

Figure 4.6 LRN Power Cabling
The recommended power cables (AWG 14 to 24) is dependent on each country. User can seek easily in
the market.
