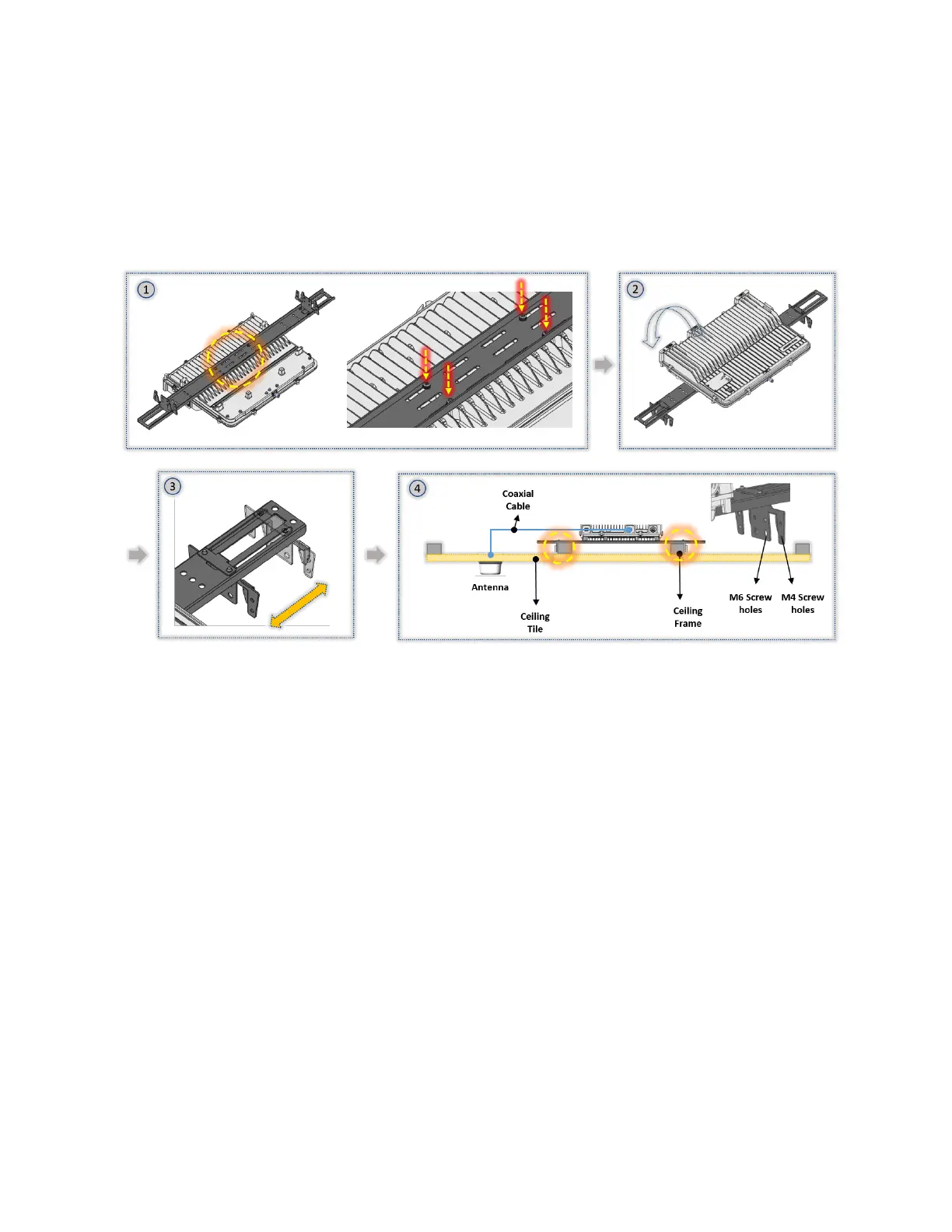

B. CEILING MOUNTING BRACKET
1. Combine LRN and ceiling mount with 4(four) M4 screws.
2. Position the LRN in the direction shown below.
3. Adjust the ceiling mount to the ceiling frame interval you want to install.
4. Tighten the ceiling frame with M4 and M6 screws in the screw hole of the ceiling mount.
