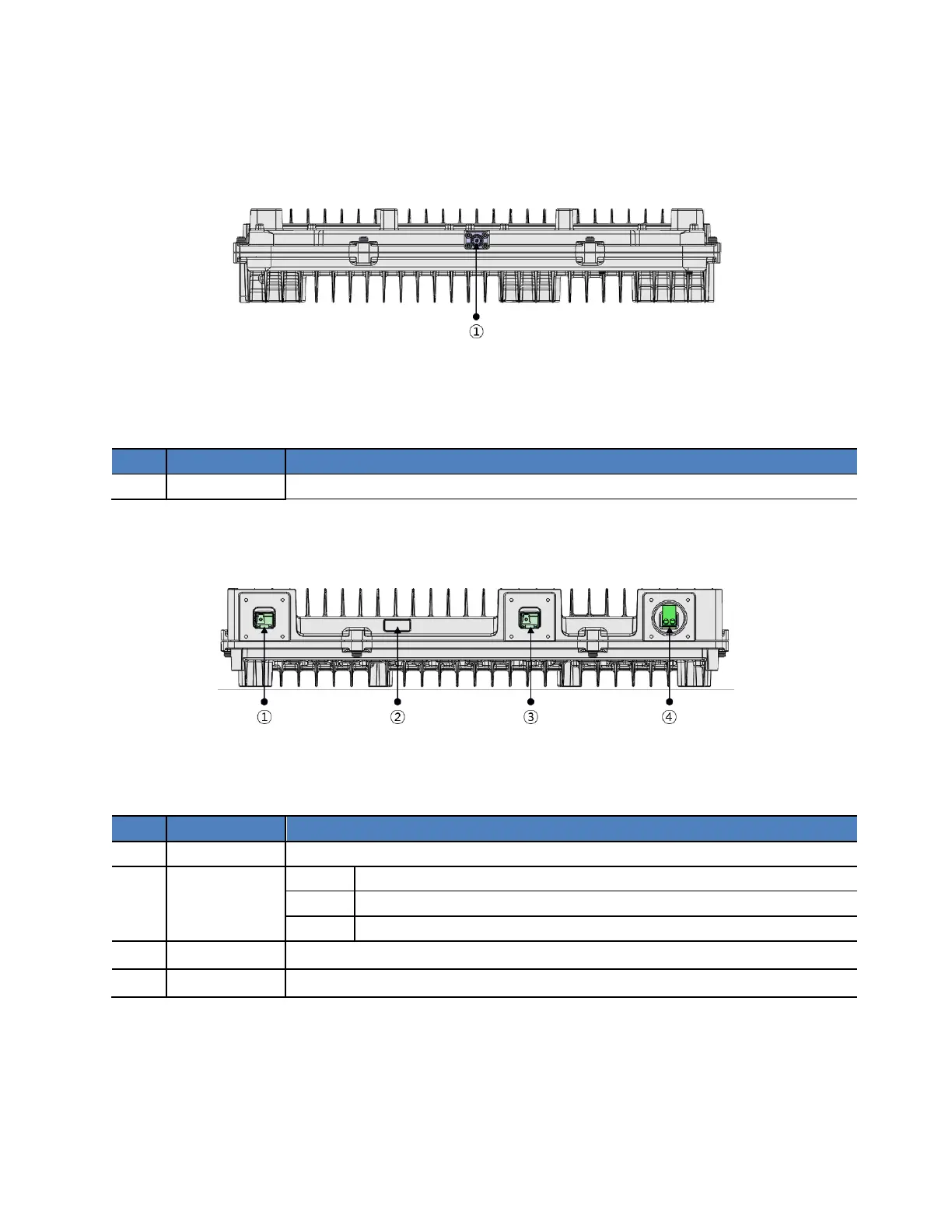

4.1.3 LRN Front and Rear Panel
4.1.3.1 Front Panel
Figure 4.3 LRN Front Panel View
4.1.3.2 Rear Panel
Figure 4.4 LRN Rear Panel View
No
Item
Description
①
ANT
External antenna interface port
No
Item
Description
①
HOU(SFP+)
Port to transmit / receive data connected to Cascade LRN
②
LED
Red
LRN is abnormal
Blue
LRN is normal
Off
Power is not activated
③
HOU(SFP+)
Port connected to the HOU to transmit / receive data
④
DC IN
Port receiving DC 57V from HOU or EPSU
