SOLINTEG M Series - Installing the PV Connector

53
User Manual
MHT-25~50K series

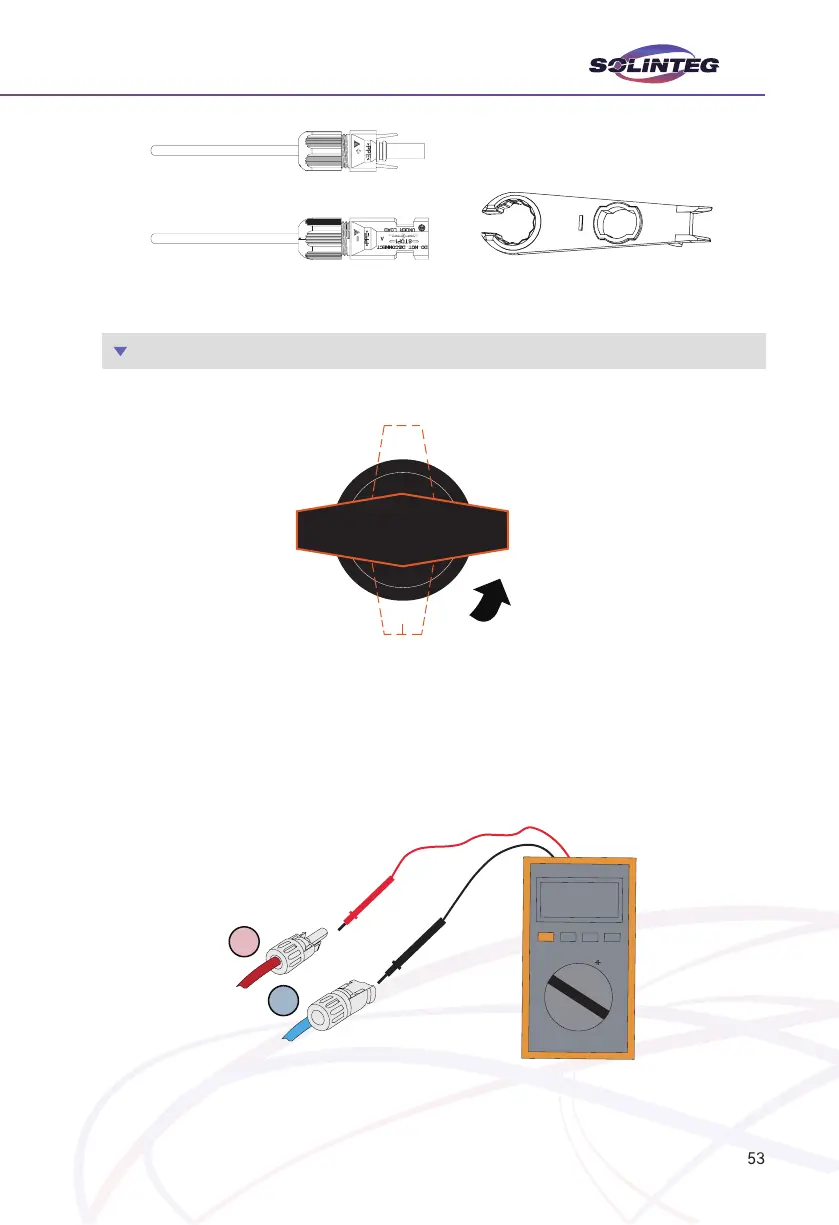

Figure 5-33
5.6.3 Installing the PV Connector
①
Rotate the DC switch to “OFF” position.
Figure 5-34
②
Check the cable connection of the PV string for polarity correctness and ensure that the


