SOLINTEG M Series - Assembling the PV Connector

52
User Manual
MHT-25~50K series

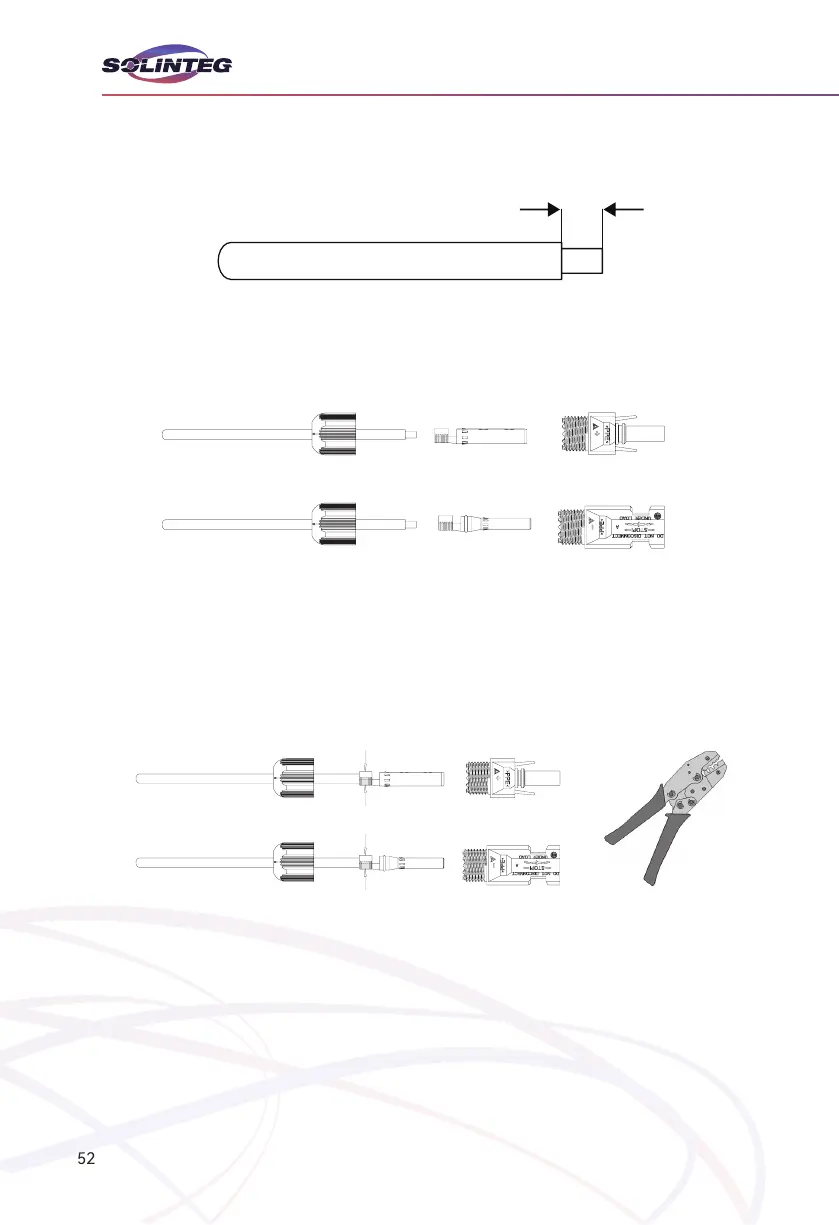

①

Figure 5-30
7mm
②

Figure 5-31
+

③



Figure 5-32
④
Insert the positive and negative cables into the corresponding positive and negative

connector.
⑤
Use an open-end wrench to screw the nut to the end to ensure that the terminal is well
sealed.
