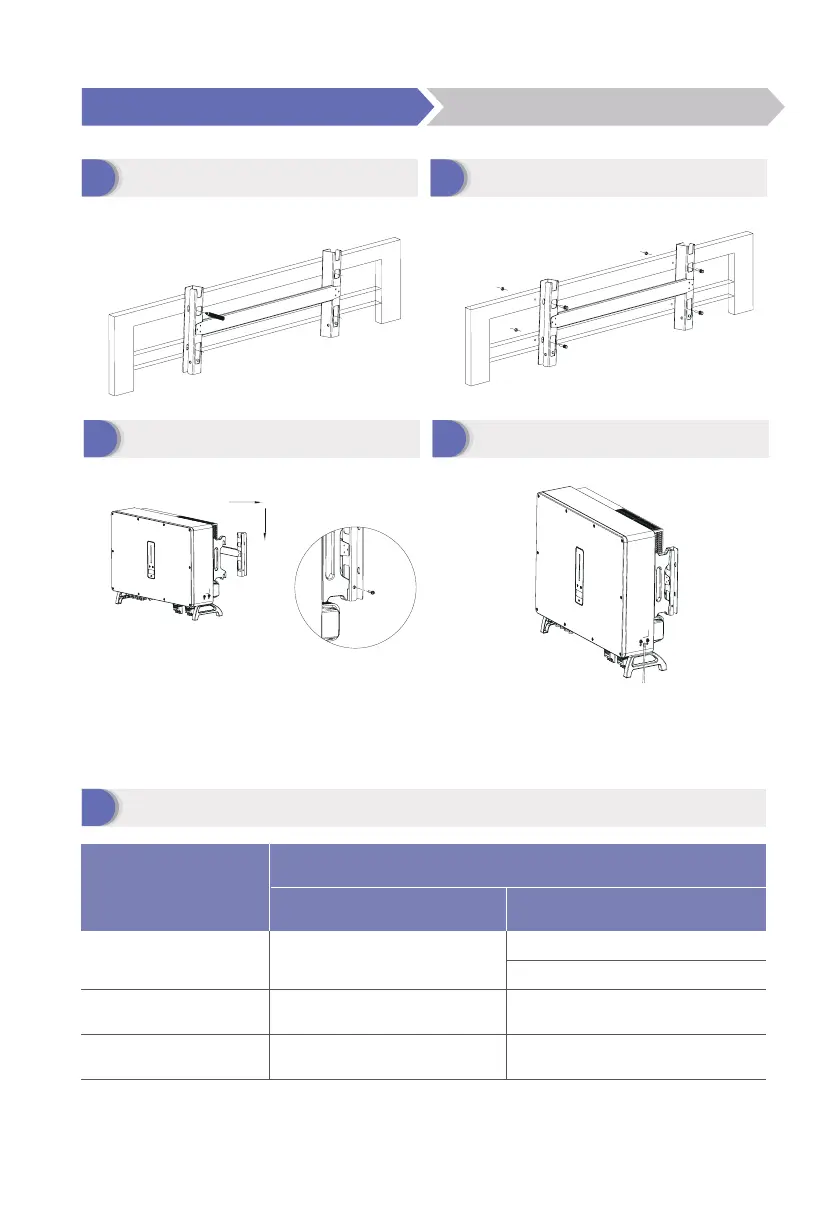

SOLINTEG MHT-25-50K - Mounting Inverter; Electrical Connection; Cable Requirements

E
Mark the Position and Drill Holes
F
Fix Wall Bracket
G
Mounting Inveer
H
Grounding Terminal Connection
Pa 2
2 Electrical Connection
A
Cable Requirements
Cable types
Cable requirements
Outside diameter Conductor core section
AC cable
PV cable
Batte power cable
20.0-30.0 mm
5.9-8.8 mm
9.8±0.2 mm
4.0 mm²
25.0 mm²
Please use the cable specied in the above table. If the conductor core of the cable is too small,which
may cause poor contact between the terminal and cable.
Pa 1
Installation Electrical Connection
10.0-25.0mm² (Flexible cable)
10.0-35.0mm² (Hard cable)
