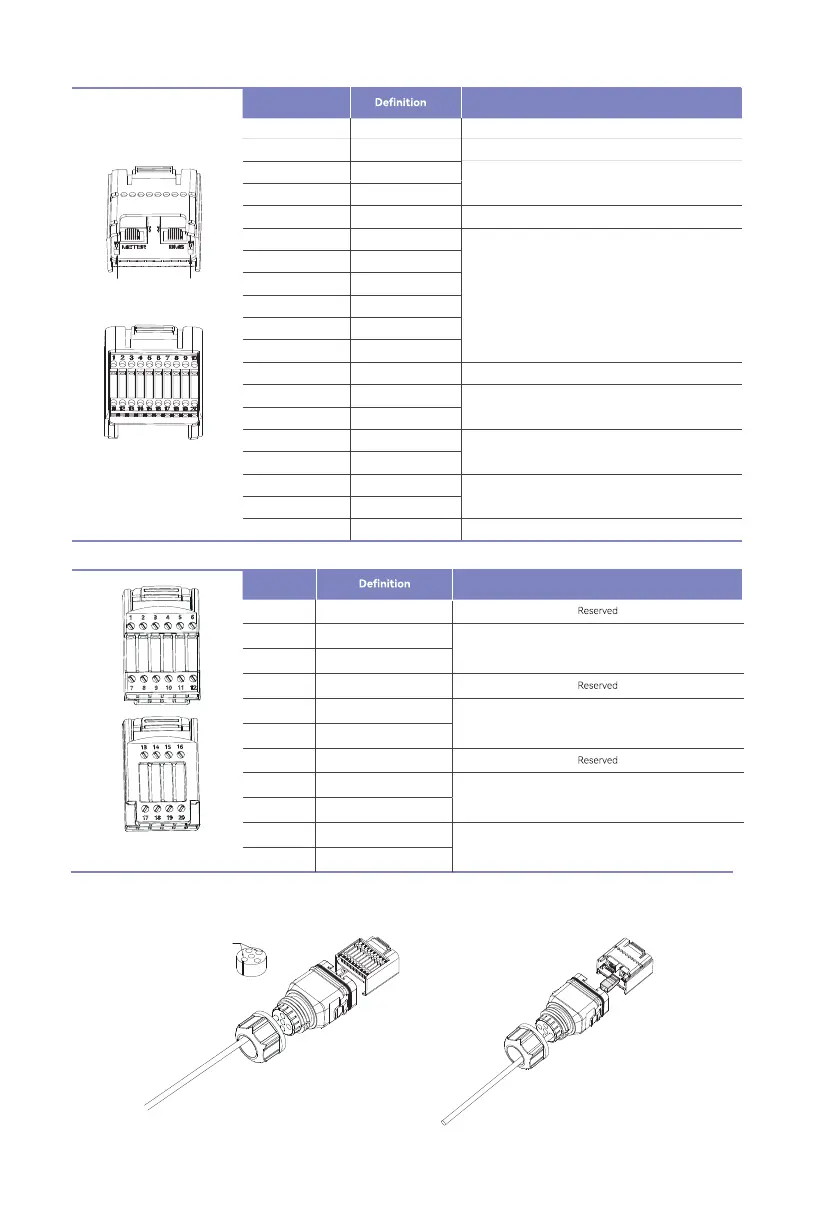

SOLINTEG MHT-25-50K - Page 7

Terminating resistor for
CAN(Parallel)
Terminating resistor for
RS485(EMS)
Pin Function
RS 485
Communicate with Meter
CAN
Communicate with BMS
1 COM
DO-1 (Multifunction Relay)
2 NO (Normally Open)
3-4 /
5 DRM4/8
DRED
For Australia and New Zealand
6 DRM3/7
7 DRM2/6
8 DRM1/5
15 COM D/0
16 REF D/0
11 Fast stop +
Fast stop
12 Fast stop -
13 485 B1
EMS
14 485 A1
17 CANL_P
18 CANH_P
19-20 /
Reseed
9-10
Reseed
/
Reseed
CAN for parallel connection of inveers
Pin Function
COM2
COM3
Pin
Function
1-6 /
7 COM
DO-2 (Multifunction Relay)
8 NO
9-10 /
11 COM
DO-3 (Multifunction Relay)
12 NC
13-16 /
17 4-20mA_OUT
4-20mA analog output
18 GND
19 GND
20 0-10V_OUT
0-10V analog output
Connect the Meter and BMS Communication Cables
Open side
Pin Function
COM2
METER（RJ45-1）
BMS（RJ45-1）
