Install
Connect the data logger to the corresponding 4-pin
COM port of the inverter. A Solis 5K inverter is used
here as an example.
Please follow the instructions below:

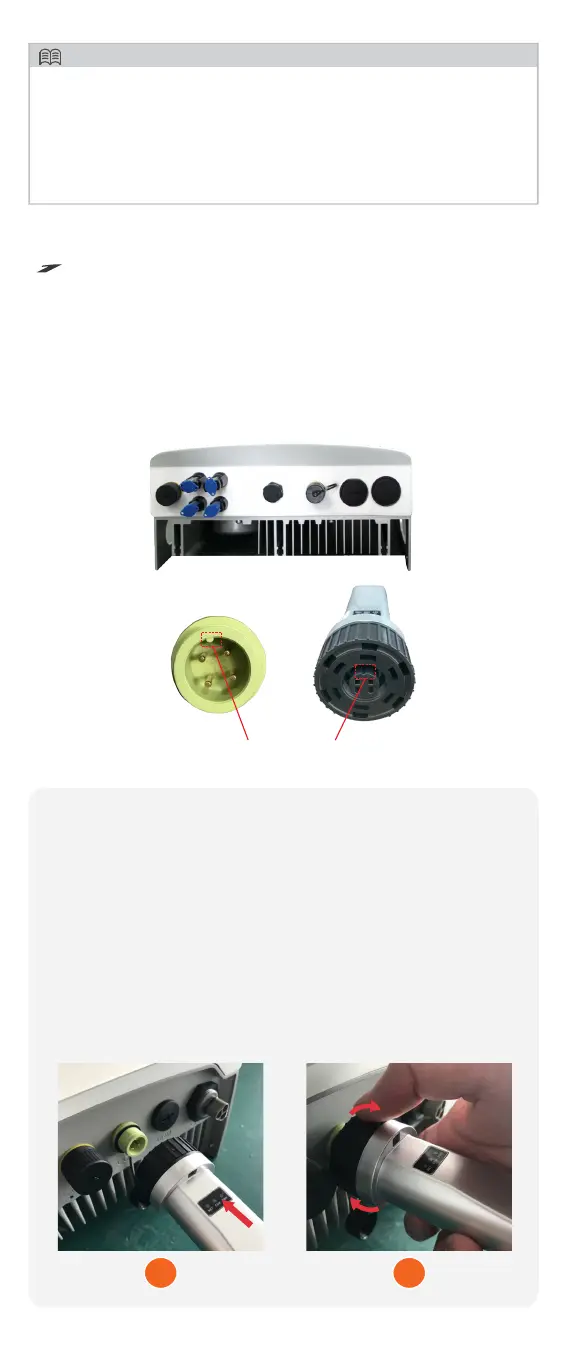

Install the data logger:
1
Step 1: Remove the plastic protective cap from
the inverter COM port.
Step 2: Install the antenna to the data logger.
Step 3: Match the joint, and then plug the data
logger into the inverter COM port.
Step 4: Rotate the black ring in clockwise.
(Only rotate the black ring on the end of the
connection, not the main body.)
Match the joint
4
3
1.1 Install the data logger
The contents of this manual may be updated from
time to time due to product version upgrades or
other reasons. Please refer to the actual product if
this manual does not match the actual product.
