.6.
Light
1
2
3
POWER
OPERATION
ALARM
3. Overview
3.1 Front Panel Display
3.2 LED Status Indicator Lights
Status
ON
OFF
ON
OFF
OFF
ON
Description

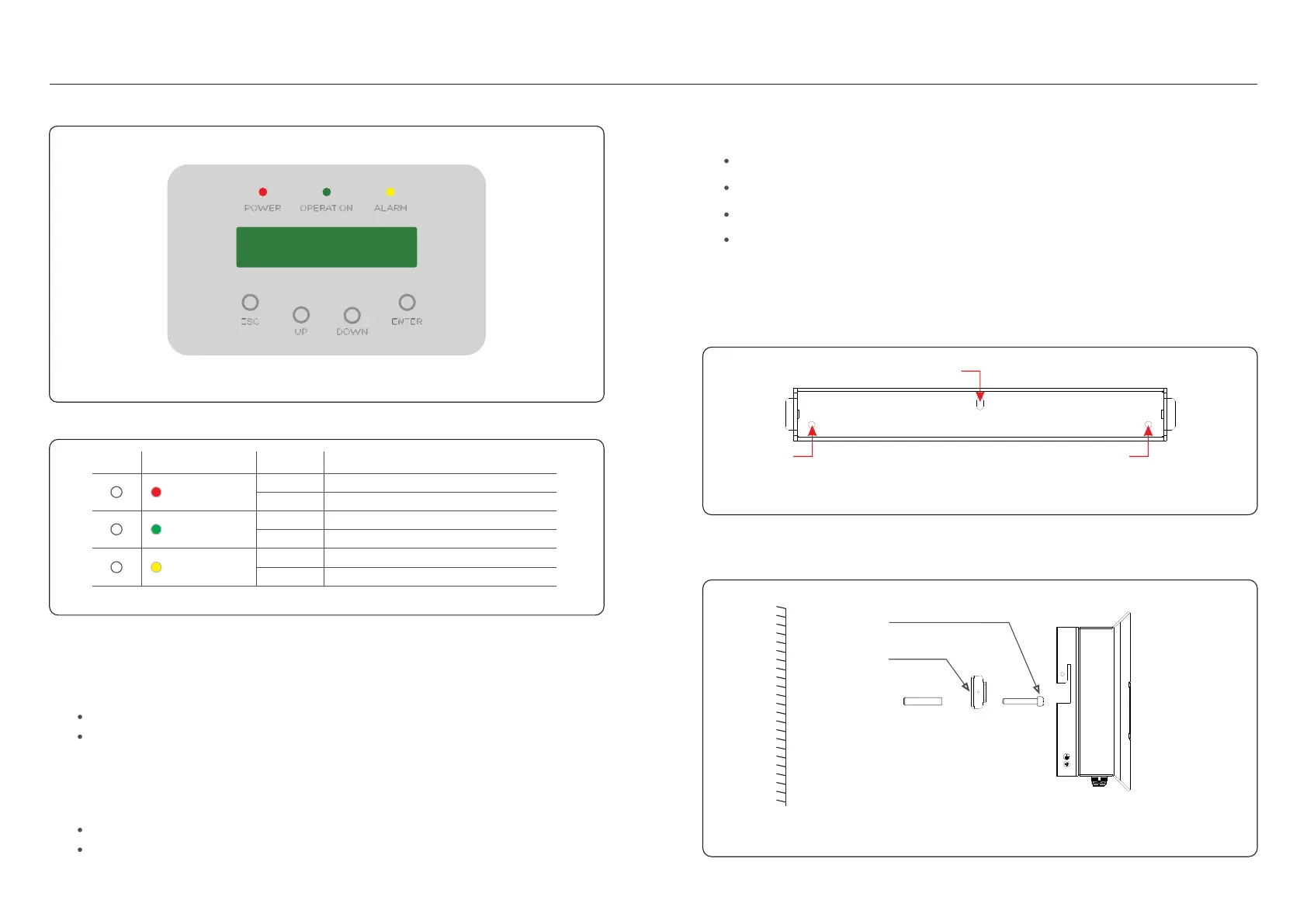

Figure 3.1 Front Panel Display
Table 3.1 Status Indicator Lights
3.3 Keypad
3.4 LCD
There are four keys in the front panel of the Inverter(from left to right):
ESC, UP, DOWN and ENTER keys. The keypad is used for:
Scrolling through the displayed options (the UP and DOWN keys);
Access to modify the adjustable settings (the ESC and ENTER keys).
The two-line Liquid Crystal Display (LCD) is located on the front panel of the EPM,
which shows the following information:
.7.
Export Device power on
Export Device power off
Communication with inverter
No communication with inverter
Alarm
No alarm
Export Power Manager operation status and data;
Service messages for operator;
4.1 Select a Location for the EPM
4. Installation
To select a location for the EPM, the following criteria should be considered:
The temperature of the EPM could up to 75℃.
The EPM is designed to work in extreme temperature range is from -25℃ to 60℃.
The EPM should be kept minimum 300mm clearance from the other device.
The EPM cannot be placed in direct sunlight.
4.2 Mounting the EPM
Please attach mounting plate on to wall horizontally where to install the product.
Then mark A , B and C to fix mounting plate.(see Figure 4.1)
B
A
Drill three φ8 holes and insert expandable shell into the holes which make the bracket
alignment. After that fix the bracket on the wall.(see Figure 4.2)
Figure 4.1 Bracket
Expansion screws
Bracket
Figure 4.2 Fix the bracket on the wall
C
To Next Page
