Solo 531 - List of Machine Parts; Identification and Technical Characteristics

7
LIST OF M ACHINE P ARTS:

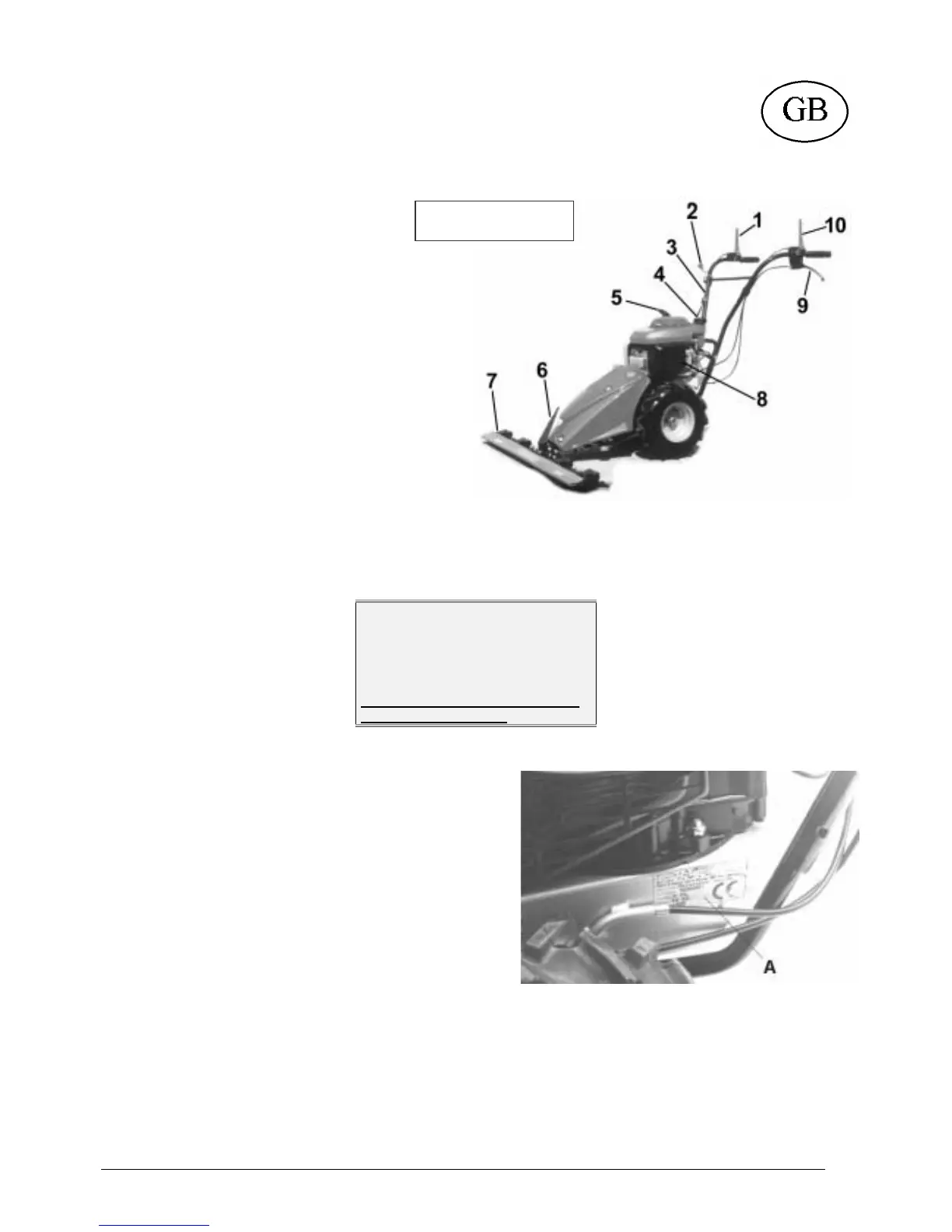

1. Wheel engage lever
2. Accelerator hand lever
3. Handles
4. Fuel inlet
5. M otor ignition
6. Grass divider
7. Central cutting blade
8. Oil inlet
9. Wheel release lever
10. Blade engage-release lever
IDENTIFICATION AND TECHNI CAL CHARACTERISTICS
Model: Solo 531
Weight: 57 Kg.
Motor: 4 strokes, petrol
Make: HONDA
Model: GCV 135
Swept volume: 135 cc.
Max. power to driving shaft at 3200
revolutions per minute (Kw 3,4)
-Picture 2-
• Motor fuel: unleaded petrol
• Complete with self-winding start-up device
• Safety device on handles to stop mach ine
• Dry air filter
• Consumption at 3600 r.p.m.: 0.8 Kg/hour
• MOTOR OIL: SAE 10W/30
• Oil quantity in motor: 0.6 l
• Gearbox: oil bath single gear
• GEARBOX OIL: SAE 80W/90
• Oil quantity in gearbox : 0.5 Kg.
• Manually controlled wheel re lease and cutting bar
• Steering handles mounted on vibration-damping supports
• Rubber wheels 3.50.6
• Central mowing unit with E.S.M. with 92 cm width
• Clutch with belt tightening pulley.
• For machine identifica tion (serial number, motor, weight, power) refer to the data plate as shown in the photo. See Ref. "A
in Picture 2
.
-Picture1-
