Your SOLO chainsaw - Standard delivery;- Designation of important controls and functional parts
ENGLISH 12
E
N
G
3. Your SOLO chainsaw
3.1 Standard delivery
• Chainsaw – basic unit (without guide bar and saw chain)
• Depending on the selected version, the guide rail, saw chain, chain guard
• Additional nylon air filter for humid working conditions
• Tool: Combination tool (spark plug spanner with screwdriver), plus additional screwdriver
• These Operating Instructions

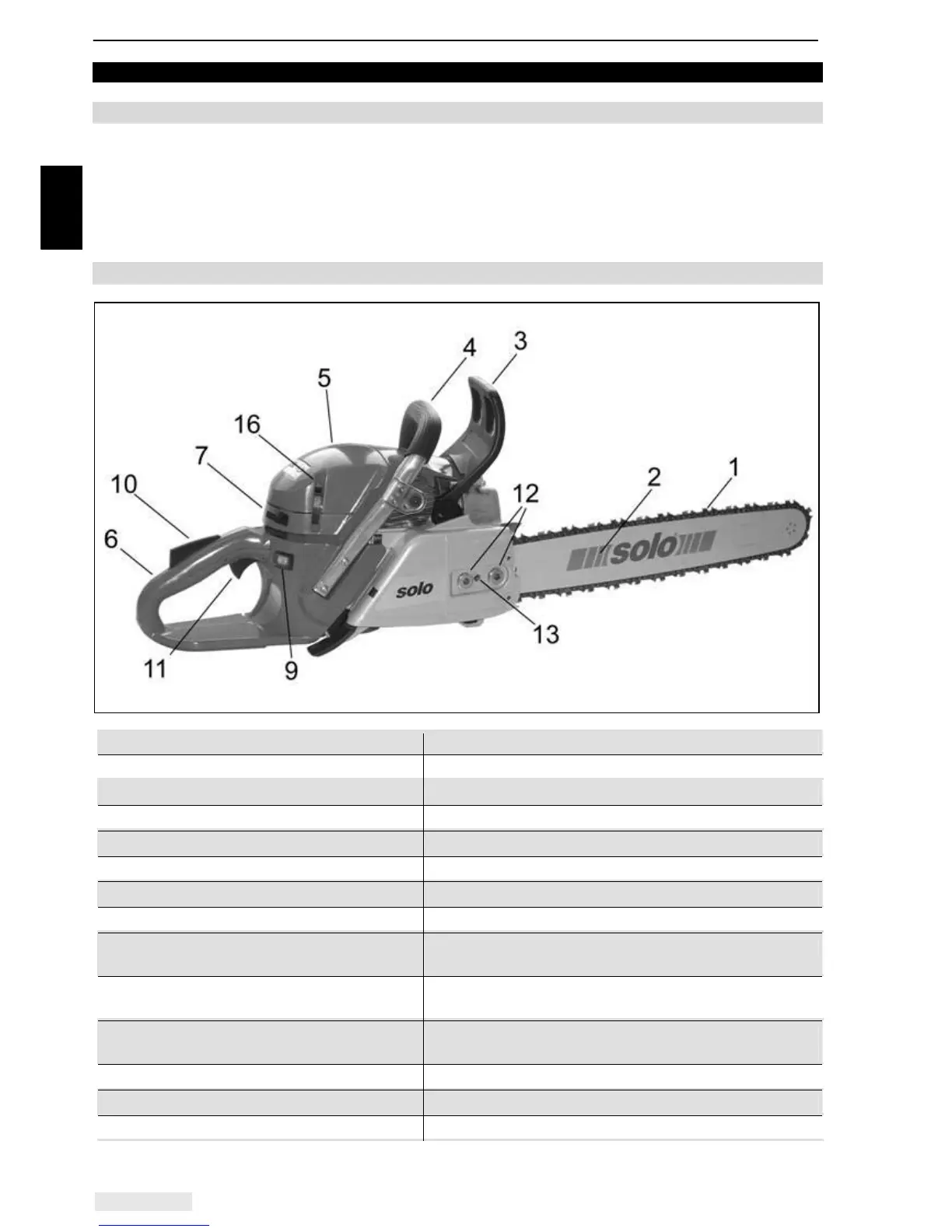

3.2 Designation of important controls and functional parts
.
View: profile from the right
1. Saw chain 15. Type plate
2. Guide bar 16. Cowl fastening clips
3. Hand protection 17. Starter handle
4. Front handle 18. Stop switch
5. Cowl 19. Fuel tank cap
6. Rear handle 20. Chain lubrication oil tank cap
7. Choke 21.
8. 22.
9. Grip heating switch
(models 665H / 675H / 681H only)
23.
10. Throttle control lock 24. Access hole (plugged) to the idle end stop
screw T
11. Throttle control 25. Carburettor adjusting screws (H / L)
(for use by a specialist workshop only)
12. Retaining nuts for the rail cover 26. Bumper spikes
13. Chain tensioning bolt 27. Exhaust
14. Chain guard plate 28. Adjusting screw, chain lubrication oil quantity
