Your SOLO chainsaw - Symbols on the equipment and on the type plate,
- Components and functional parts under the cowl
ENGLISH 14
E
N
G

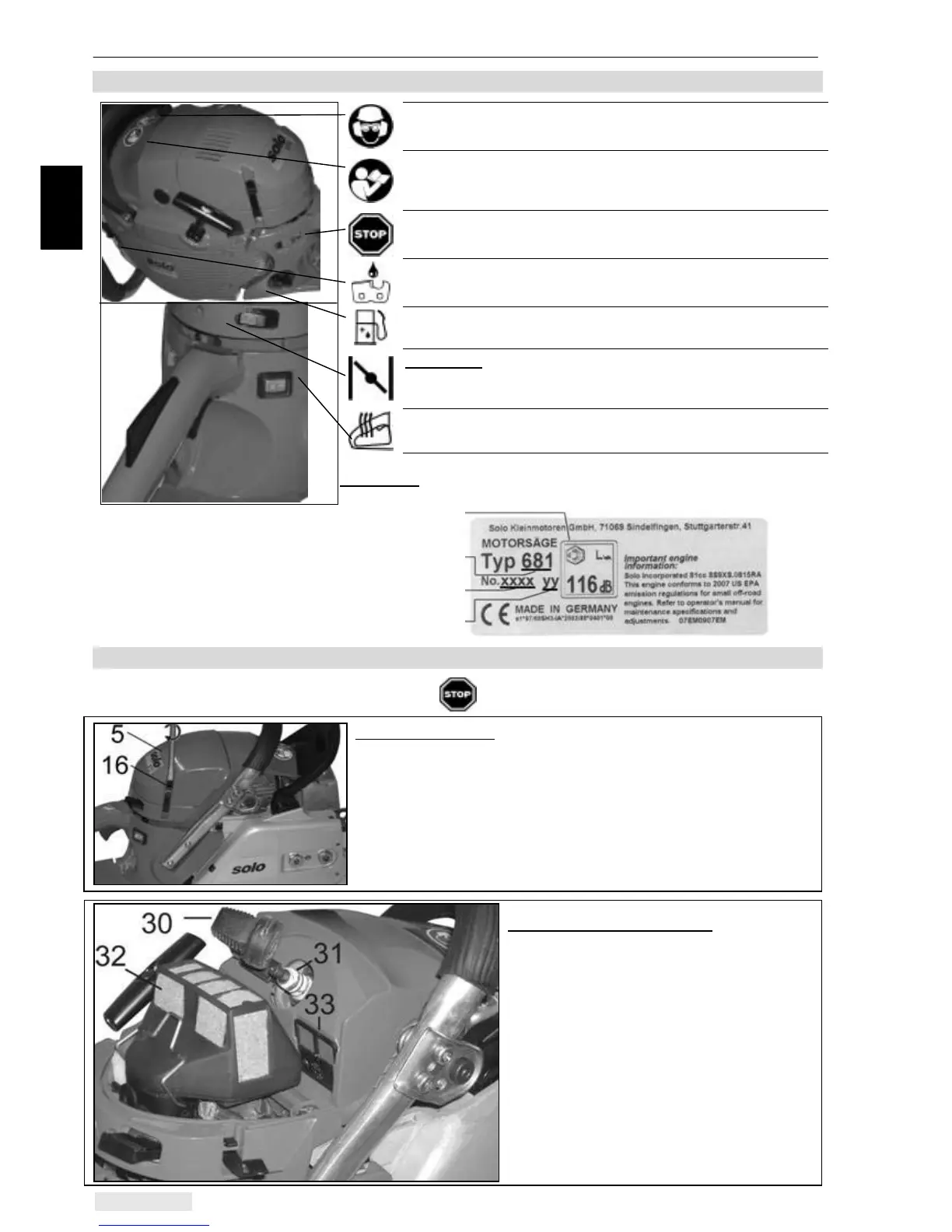

3.3 Symbols on the equipment and on the type plate
Before starting the engine, make sure that you are wearing
a helmet, ear defenders and face protection
Thoroughly read these operating instructions before
undertaking any maintenance, installation and cleaning
steps
To stop the engine, push the stop switch (18) forward in
the direction of the arrow.
Chain lubrication: Symbol next to the tank lid for the
chain lubricant (20)
Fuel mixture: Symbol next to the tank lid for the fuel
mixture (19)
Choke flap
:
Cold start position ! pull the lever out
Operation and warm start ! press the lever in
Grip heating ON / OFF switch
Models 665H / 675H / 681H only
Type plate:
L
WA
- statement! Guaranteed sound power level
Type designation
Serial number
Build year (06 !2006)
3.4 Components and functional parts under the cowl
Taking off the cowl:
• Unlock the fixing clamps (16), preferably with a screwdriver, in
one rotating move.
• Lift off the cowl (5) upwards.
When later fitting the cowling, safeguard the correct fitting into
the groove of the main casing and re-lock the two fixing clamps
upwards.
Components under the cowl:
30. Spark plug connector
31. Spark plug
32. Air filter
33. Slide insert for winter and standard
operation
