SOMFY Axroll - Axroll Installation; Product Description and Specifications

3
English
■ Characteristics
Power supply 220-240 Vac / 50-60 Hz
Fuse 250 Vac / 5 A - AF
Motor power 230 Vac 750 W
Protection rating IP 55
Ambient operation temperature -15 à +55 °C
Radio frequency 433,42 MHz
Accessories power 24 Vcc
Resistive safety edge
4 Kæ < R < 12 Kæ
Max. current for accessories 0,33 A / 8 W max
Signal light 24 Vdc, 10 W max / 230 Vac, 40 W max
Area lighting 250 Vac, 500 W max
Auxiliary output Contact NO / 250 Vac, 500 W max
Operating Class I
Number of max. channels 32
Radio range for safety edge modules 10 m
Radio frequency for safety edge modules (bi-directional) 868.90 MHz
Installation
180
90
230
65
35
53

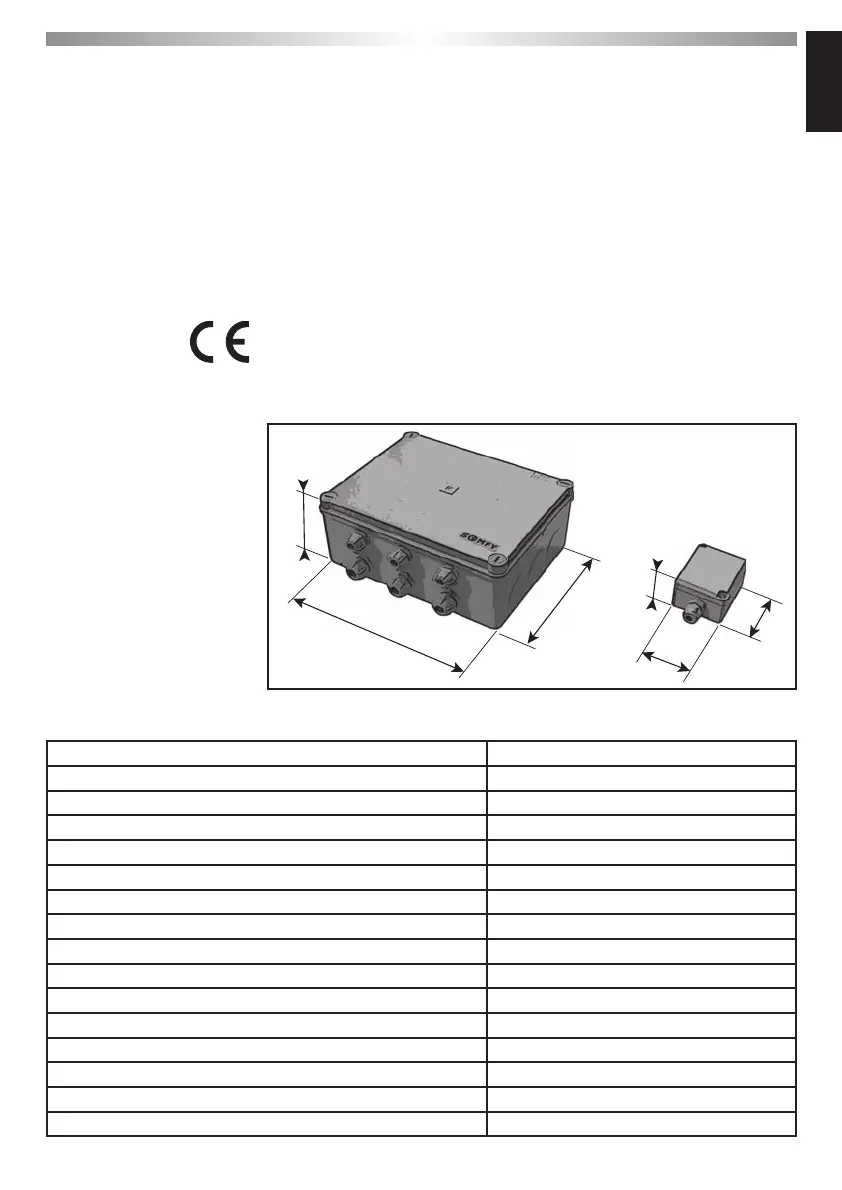

■ Dimensions
■ Description
The AXROLL receiver is used to control a rolling garage door fitted with
a 230V motor with integrated mechanical endstops. The Axroll is
compatible with the Somfy RTS range of controls. Additionnally to the
radio safety edge (resistive), numerous safety and signaling devices can
be connected to the AXROLL (photocells, signal lights, area lighting).
This product complies with the standard EN60335-2-95. When installed
as recommended in this instruction manual and in accordance with
regulations in force, the system controlled by the Axroll will comply with
EN 13241 and EN 12453 standards. By ignoring these instructions,
Somfy will not be responsible for any resultant damage caused. The
Axroll must be installed inside the garage and connected to a motor
equipped with a manual over-ride system (LT CSI).
Hereby, SOMFY, declares that this product (AXROLL) is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. A Declaration of
Conformity is available at the web address www.somfy.com/ce (Axroll NS radio safety edge).
In mm.
