Glydea™ Control Options and Wiring 2/2011

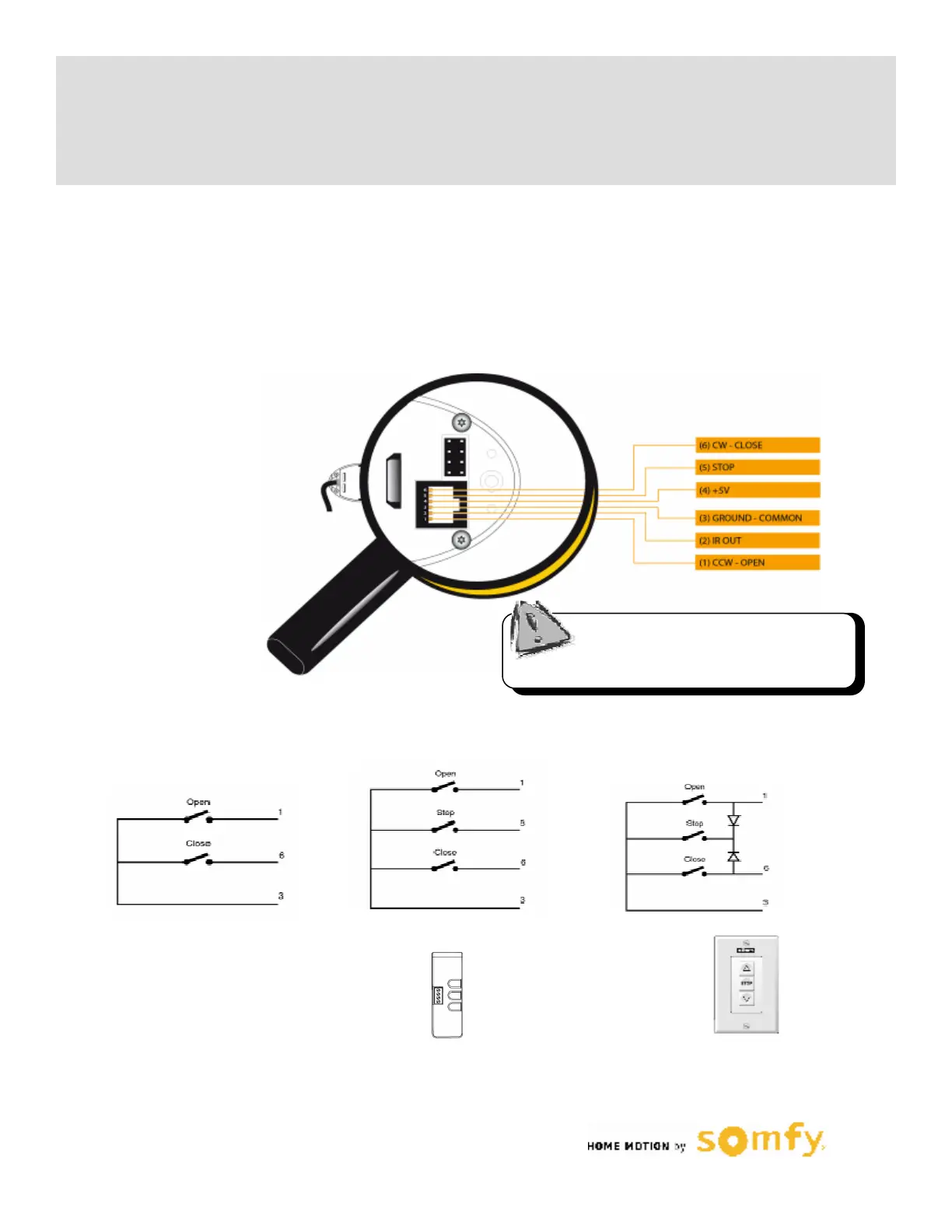

Glydea™ Wiring Schematics
2 Normally Open contact 3 Normally Open contact
Glydea™ DCT can be controlled by a combination of dry contacts, IR and RTS controls
with the internal RTS receiver. The dry contact and IR controls are accessible through
1 RJ12 socket. The dry contacts control can be done through devices with 2 normally
open contacts (open, close) or 3 normally open contacts (open, stop and close). For
devices using 2 contacts the stop command is achieved by closing the open and close
contacts. For three devices the stop can also be achieved with a specific stop button.
Individual, group and master DCT controls can be achieved using a DCT Splitter and a
Diode boxes as show below.
• Dry Contact switches and relays types
• RJ 12 socket pin out
2 Normally Open contact
+ Stop in parallel
No wiring of several motor
on one DCT switch. Always
use DCT splitter
