SOMMER STArter - Installing Additional Racks

Current_heading
– 10

Installation
20
28
60
239
239
1018
239
100
50
100
~20
2020


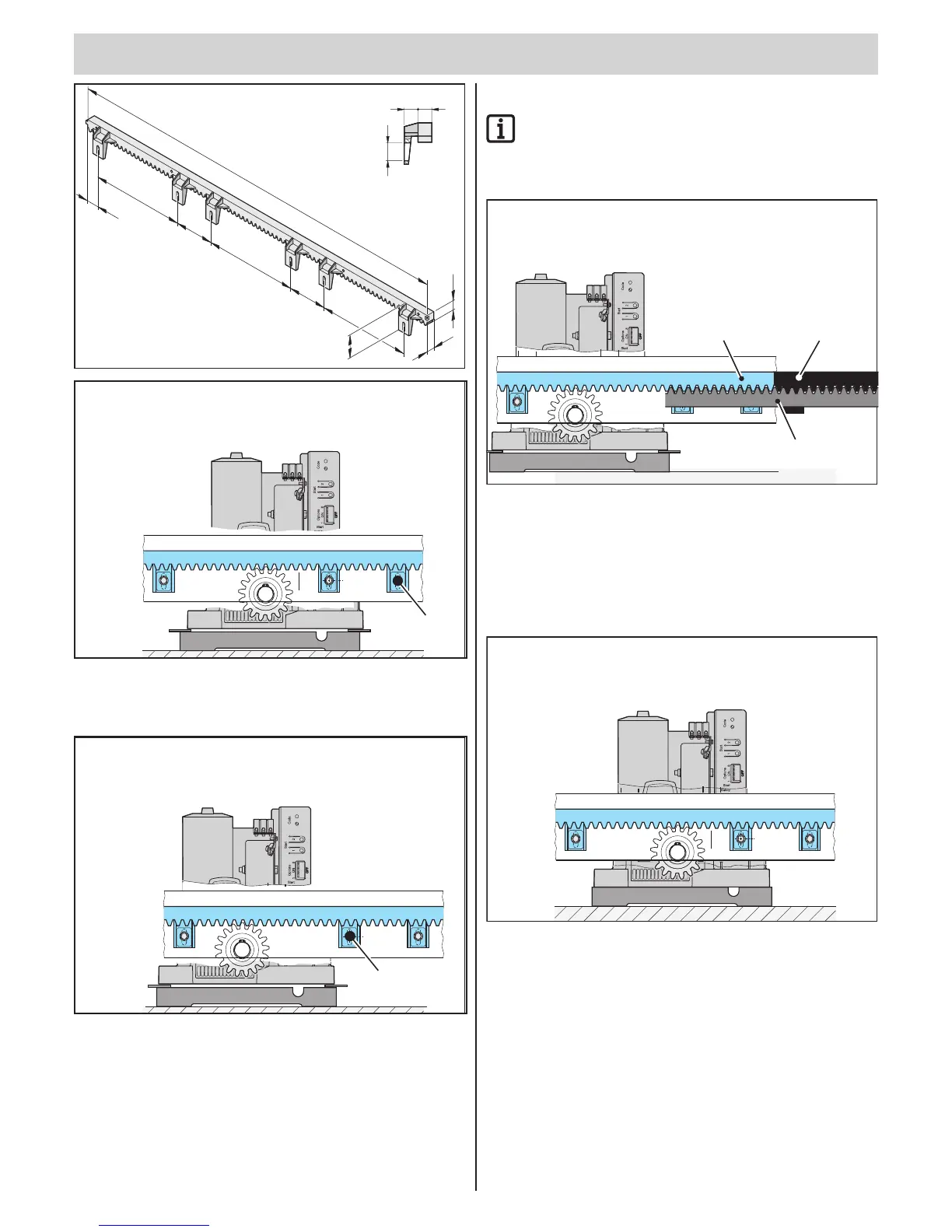

1. Before marking the rst hole open the gate completely by hand.
2. Position the rack on the pinion and align it horizontally with a spirit level.
3. Mark the rst hole, drill it and fasten.

4. Push the gate in 'closed' direction until the next drilling point is
positioned in accordance with the illustration and mark the holes again.
5. Repeat until all drill positions are marked.
6. Fasten rack.
Installing additional racks
TIP!
First mark the two outer holes and drill. Fasten temporarily
and mark the remaining holes. Then remove the rack and
drilltheremainingholes.Thentherackcanbenallybolted
in position.



1. Position second rack (2) ush with the rst rack (1) and hold another
rack (3) against them from below so the teeth of the additional rack (3)
mesh with the teeth of the two top racks (1 and 2). This will ensure that
the second rack (2) is accurately tted.
2. Mark and drill the holes for the second rack.
3. Attach rack.
4. If a third rack is required, use the same procedure as for the second rack.
5. Remove the auxiliary mounting plates.
