SOMMER STArter - Additional Accessories; Safety Instructions; Power and Indicator Connections; Floating Relay Output

– 14


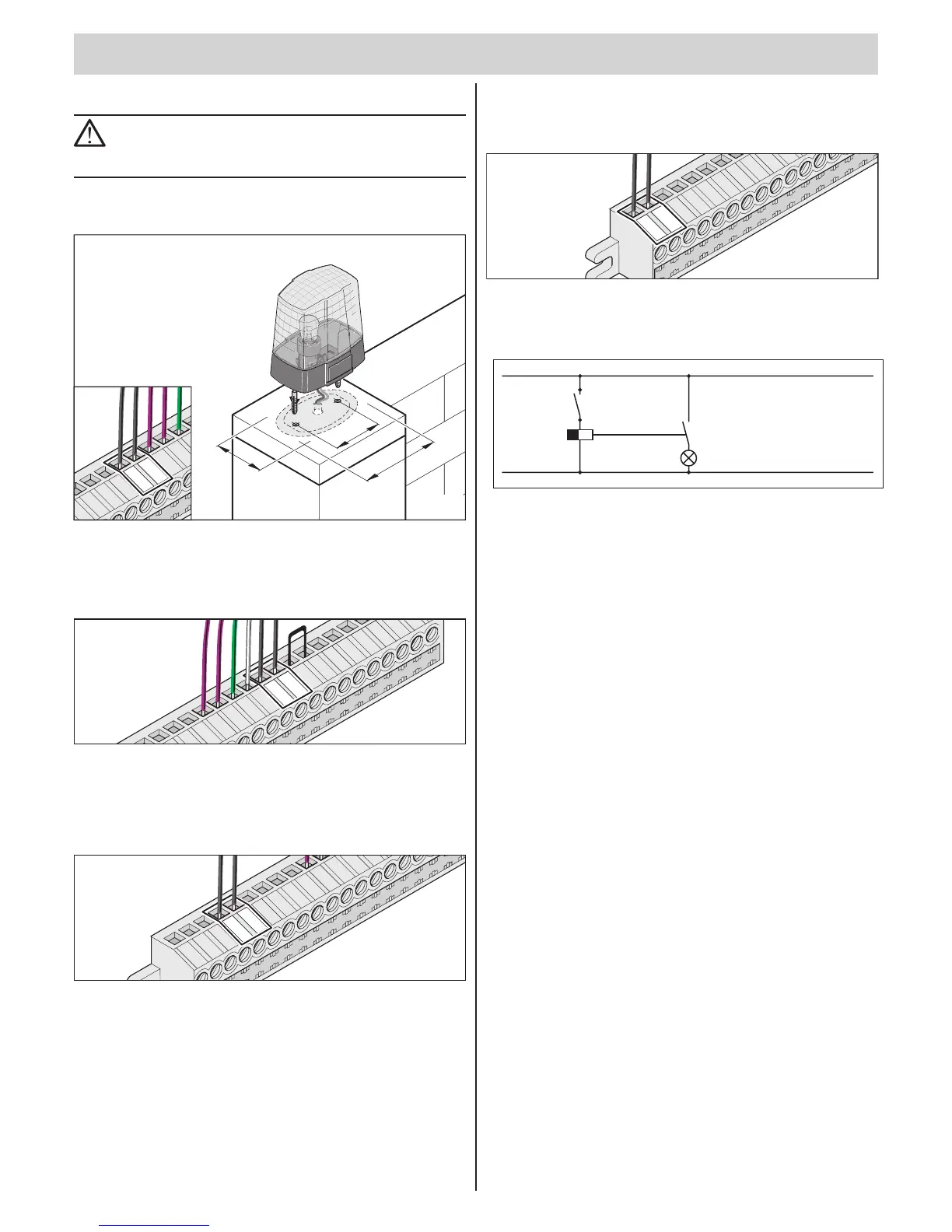

Additional accessories
Safety instructions
ATTENTION!
Before working on the gate or the operator always disconnect
the control unit from the power supply and lock to prevent
reactivation.
Warning light
78
85
135
2
1
20
19 18
17
16
15 14
1
Terminal 16
Terminal 17
24 V connection
17
16
15 14
13
12
10
9
8
7
6
5 4
3
2
11
Terminal 10: Regulated DC 24 V, max. 0.1 A
Terminal 11: Earth
12 V connection
24
23
22
21
20
19 18
17
16
15 14
13
12
Terminal 20: DC 12 V, max. 0.1 A
Terminal 21: Earth
Floating relay output
Every time the operator is started, a pulse is pending at the relay output
that can be used to switch on lights in a stairwell, for example.
24
23
22
21
20
19 18
17
16
15
Terminals 23 + 24 Max. switching capacity: AC 230 V, max. 5 A
The "max. switching duration" can only be changed with the TorMinal.
L1
23
24
N
Example: automatic lights in stairwell
Connecting external antenna
See p. 18 Chapter "External antenna"
TorMinal interface
See TorMinal operating manual.
Special functions
Dead man operation
Service monitor
This and additional functions or settings require the TorMinal.
