Functions

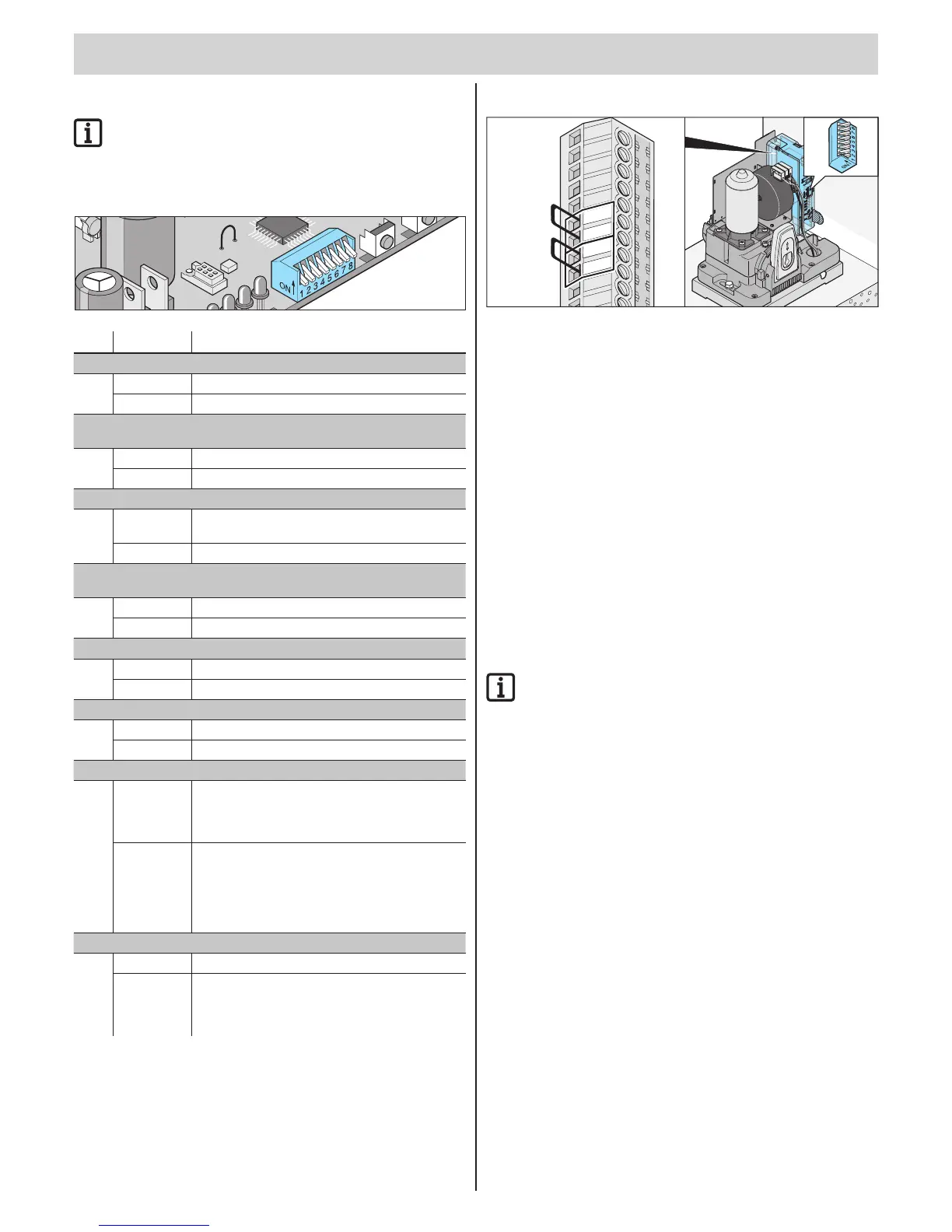

DIP switches
NOTE
Before switching the DIP switches, disconnect the power
supply to the control unit. DIP switches are read again when
the controller is connected to the power supply again.
Factory setting: OFF
T1 T2
DIP Position Function/reaction
Safety connection 1, terminal 6 + 7; action of operator on gate open
1. OFF No reaction by operator
ON Operator reversed
Safety connection 1, terminal 6 + 7; selection of function as NC contact
or 8.2 kohm
2. OFF NC contact (e.g. photo cell)
ON 8.2 kohm
Safety connection 2, terminal 8 + 9; action of operator on gate close
3. OFF Operator stops and opens the gate slightly,
reversion
ON
The operator stops and opens the gate completely.
Automatic closing: the gate closes 5 seconds are actuation of the
photo cell (safety connection 1 or 2).
4. OFF Deactivated
ON Activated
Prewarning time for warning light connection terminal 16 + 17
5. OFF Prewarning time 0 sec.
ON Prewarning time 3 sec. - warning light ashes
Fraba system
6. OFF Deactivated
ON Activated
Dened opening and closing
7. OFF Pulse sequence with 1-channel mode
button/radio channel 1 + 2 :
OPEN - STOP - CLOSE - STOP - OPEN - STOP -
CLOSE - etc.
ON Pulse sequence with 2-channel mode
button/radio channel 1:
OPEN - STOP - OPEN - STOP - OPEN etc.
button/radio channel 1:
CLOSED - STOP - CLOSED - STOP - CLOSED -
etc.
Partial opening
8. OFF Partial opening deactivated
ON Partial opening activated
button/channel 1 = OPEN - STOP - CLOSED - etc.
button/channel 2 = partial opening
DIP switch 7 OFF
Obstacle detection (DIP 1, 2 + 3)
11
10
9
8
7
6
5
4
3
2
1
ON
7 865
4321
Obstacle when gate is opening
Force cut-off
Operator reversed
Safety input 1, terminal 6 + 7
If a safety input is interrupted (e.g. someone passes through the photo cell),
the operator detects this and reacts according to the setting of DIP switch 1.
DIP switch 1:
OFF No reaction by operator
ON Operator reverses
DIP switch 2: Safety connection 1, terminals 6 + 7, function
OFF NC contact, e.g. for photo cell
ON 8.2 kohm (safety contact strip)
Safety input 2, terminals 8 + 9
No reaction by operator
Obstacle when gate is closing
IMPORTANT INFORMATION!
When automatic closing is activated the gate always
opens completely.
Force cut-off
Operator reversed
Safety input 1, terminal 6 + 7
If a safety input is interrupted (e.g., someone passes through the photo cell),
the operator detects this and reacts according to the setting of DIP switch 3.
DIP switch 3:
OFF Operator stops and opens the gate slightly, reversion.
ON The operator stops and opens the gate completely.
Safety input 2, terminals 8 + 9
DIP switch 3:
OFF Operator stops and opens the gate slightly, reversion.
ON The operator stops and opens the gate completely.
