General Information
Intended use
• The operator is designed exclusively for opening and closing sliding
gates (see EN 12433-1), referred to below as gates. Any other use
does not constitute intended use. The manufacturer accepts no liability
resulting from use other than intended use. The user bears the sole
responsibility for any risk involved. It also voids the warranty.
• Gates automated with an operator must comply with all currently valid
standards and directives: e.g. EN 12604, EN 12605.
• Maintain the safety clearances between the gate and surroundings as
specified in EN 12604.
• The operator must be in good technical condition, and it must be used
for its intended purpose with awareness of the hazards as described by
the installation and operating manual.
• The gate must not have any rise or fall during opening or closing.
• Position the running rail to allow water to drain to prevent ice
accumulation in winter.
• The gate must move freely in the guide and on the running rail to allow
the operator to react sensitively and the gate to be switched off in
emergency.
• The gate must have end stops in open and closed position, otherwise it
may be pushed out of the guide in the event of an emergency release.
• Malfunctions which could affect safety must be corrected immediately.
• The gate must be stable and torsionally stiff, i.e. it must not bend or
twist when being opened or closed.
• The operator cannot compensate for any defects in the gate or
incorrect installation of the gate.
• Do not install the operator in potentially explosive areas.
• Do not operate the operator in rooms with corrosive atmospheres.
For the Declaration of Conformity for
the radio see:
www.sommer.eu/mrl
Permitted gate wing dimensions
Data STArter STArter
+
Min. travel path Min. 1,400 mm Min. 1,400 mm
Max. travel path Max. 6,000 mm Max. 8,000 mm
Weight Max. 300 kg Max. 400 kg
Gate inclination 0 % 0 %
Technical data
Data STArter STArter
+
Rated voltage 220 ... 240 AC/V 220 ... 240 AC/V
Rated frequency 50/60 Hz 50/60 Hz
Operating temperature range
–20 to +50 °C –20 to +50 °C
Protection code IP54 IP54
Max. torque 11 Nm 11 Nm
Rated torque 3.3 Nm 3.3 Nm
Rated current consumption 0.6 A 0.6 A
Rated wattage 140 W 140 W
Max. speed 170 mm/s 240 mm/s
Power consumption, standby 2 W 2 W
Weight 8 kg 8 kg
Operating time S3 30 % S3 30 %
Workplace-related emission value < 75 dBA - operator only

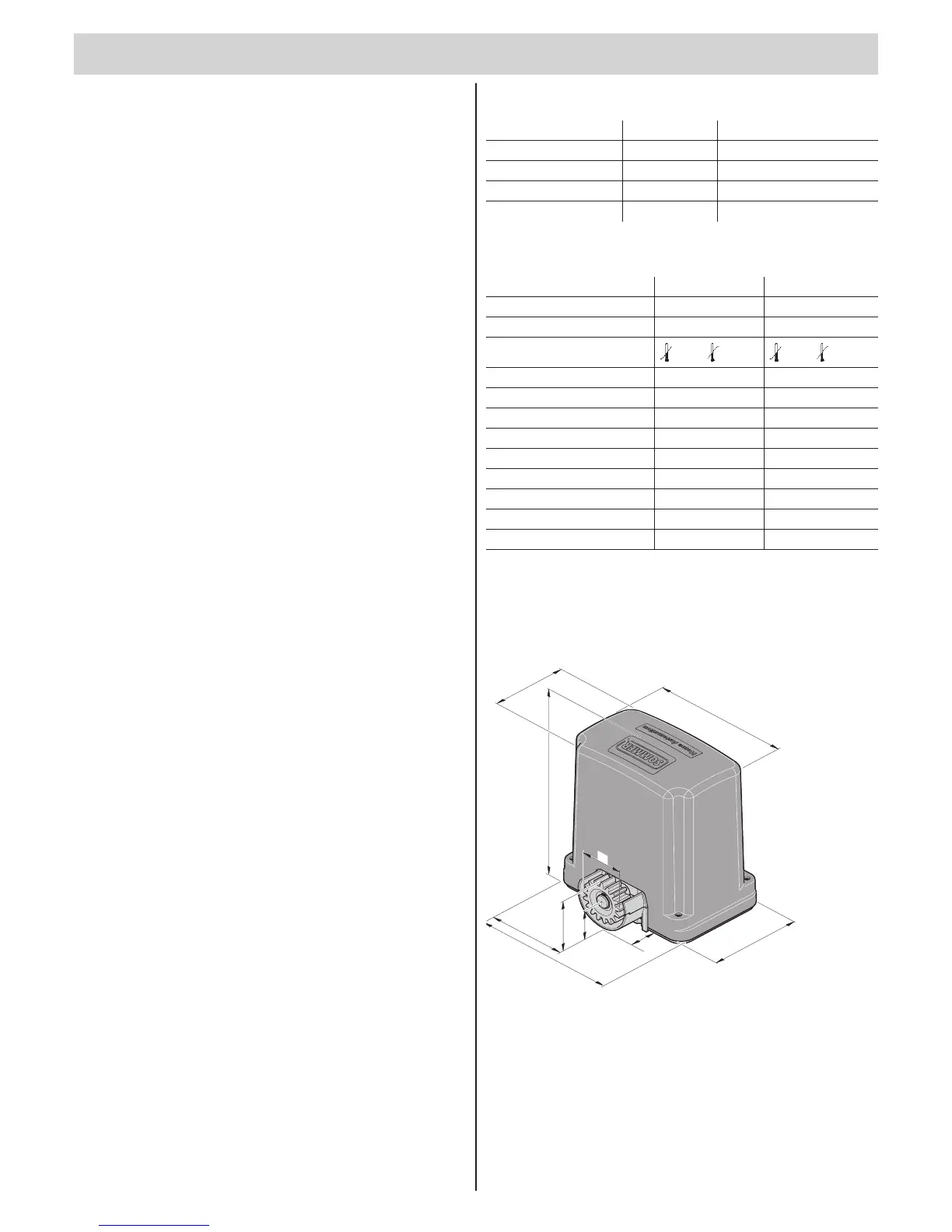

Dimensions
All dimensions are in millimetres. The operator is locked
