Preparations for assembly
Tips for installation
• A safety device must always be connected as an NC contact.
This ensures that safety is always guaranteed in the event of tripping
or a fault.
• Determine the position of the accessories before installation together
with the operator.
IMPORTANT INFORMATION!
Additional pulse transmitters are: handheld transmitters,
Telecody, wireless indoor switches and key switches. In the
case of the handheld transmitter, Telecody, or wireless indoor
switches a connecting line to the operator is not required
(contact your dealer).

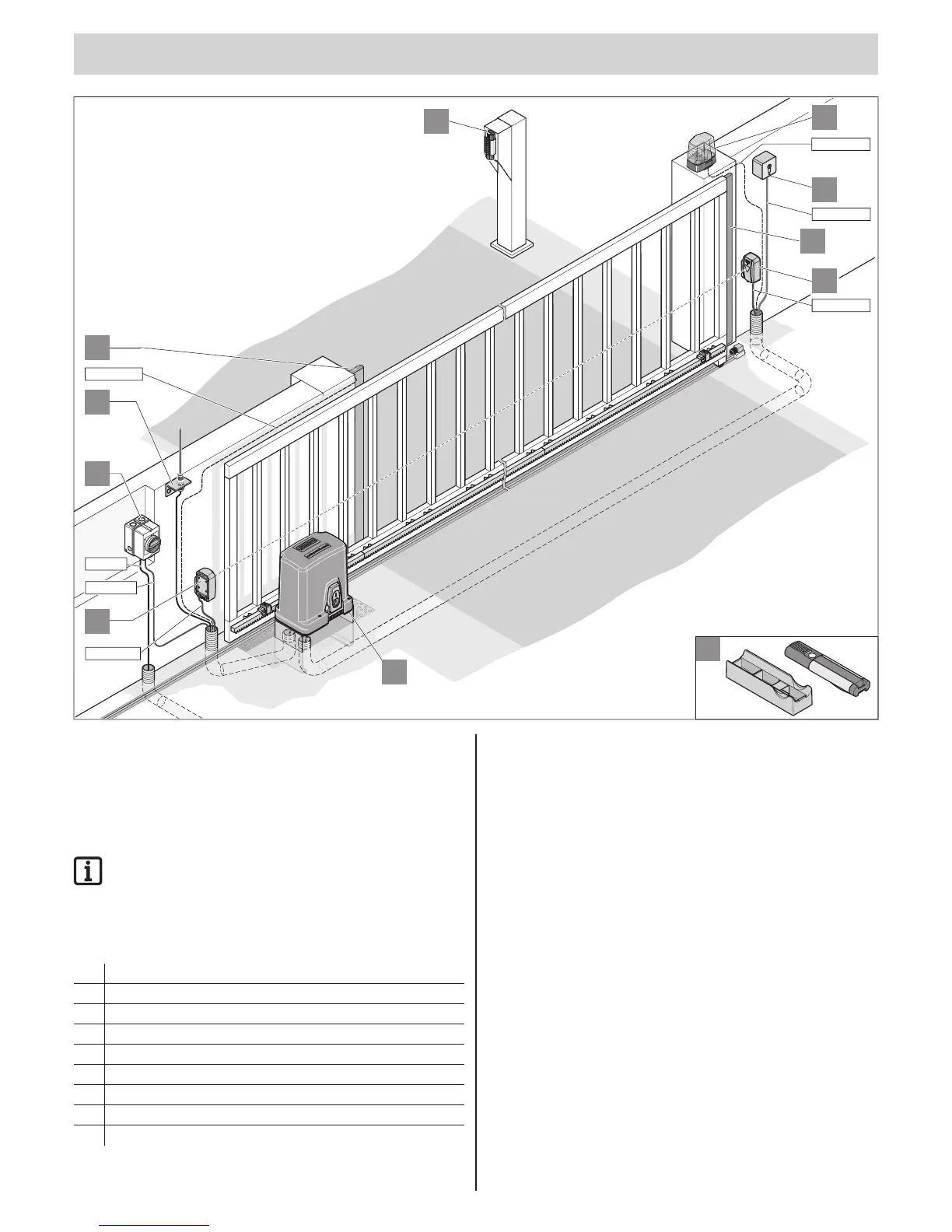

1. Warning light DC 24 V
2. Key switch (1 or 2 contact)
3. Photo cell (prescribed for automatic closing, see EN 12543)
4. Console
5. Main switch (lockable)
6. Rod antenna (including 10 m cable)
7. Safety contact strip (8.2 kohm, Fraba system)
8. Telecody
9. Car/wall holder for handheld transmitter
General preparations
• Remove or disable all locking devices (electric lock, bars, etc.) before
installing the operator.
• The gate must have a stable structure and must be suitable.
• The gate must not show excessive lateral deviation throughout its
range of movement.
• The system wheels and bottom track and the roller and top guide must
operate without excessive friction.
• End stops must be installed at the "gate OPEN + gate CLOSED"
positions to prevent derailing of the gate.
• Install empty ducts under the gate for the cables of the mains supply
line and the accessories (light barrier, warning light, key switch, etc.).
3
2
1
2 x 0,75 mm
2
4 x 0,75 mm
2
2 x 0,75 mm
2
S
O
M
M
E
R
TO
R
ANT
RI
EB
E
0
1
2
6
7
2 x 0,75 mm
2
M
C
P
E
M
C
S
8
9
AC 230 V
O
5
3 x 1,5 mm
2
4
3
4 x 0,75 mm
2
3
7
