Installation
Safety instructions
• The control unit must be connected to the power supply by an
electrician only.
• Ensure that the operator is securely fastened to the ground and the
racks on the gate to withstand the high forces generated when opening
and closing the gate.
• If a button is used for opening or closing, it must be installed at a height
of at least 1.6 m to prevent operation by children.
• The rack must not press on the pinion during operation, otherwise the
operator will be damaged.
• Follow the standards for installation, e.g.: EN 12604, EN 12605.

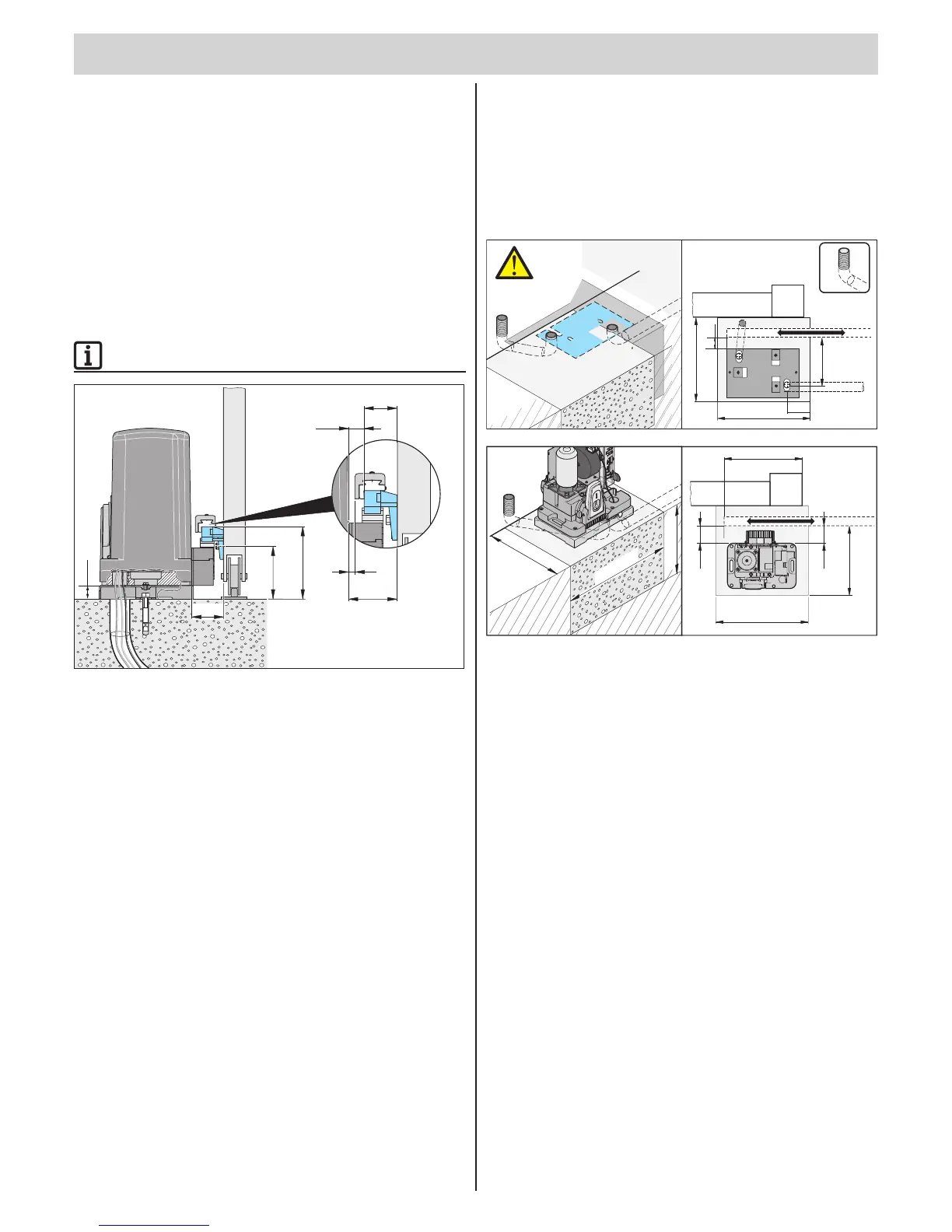

Installation on ground
IMPORTANT INFORMATION!
Dispose of packaging according to local regulations.
94
59
59
138
19
8
40
Foundation
• For free-standing gates install the operator centrally between the
roller blocks.
• The foundation must extend below the frost line (approx. 800 mm
in Germany).
• The foundation must be cured and horizontal.
• Foundation dimensions as shown.
310
350
95
195
59
