SOMMER twist 200 E - A;B Dimension Table (Reference Values)

Installation
10

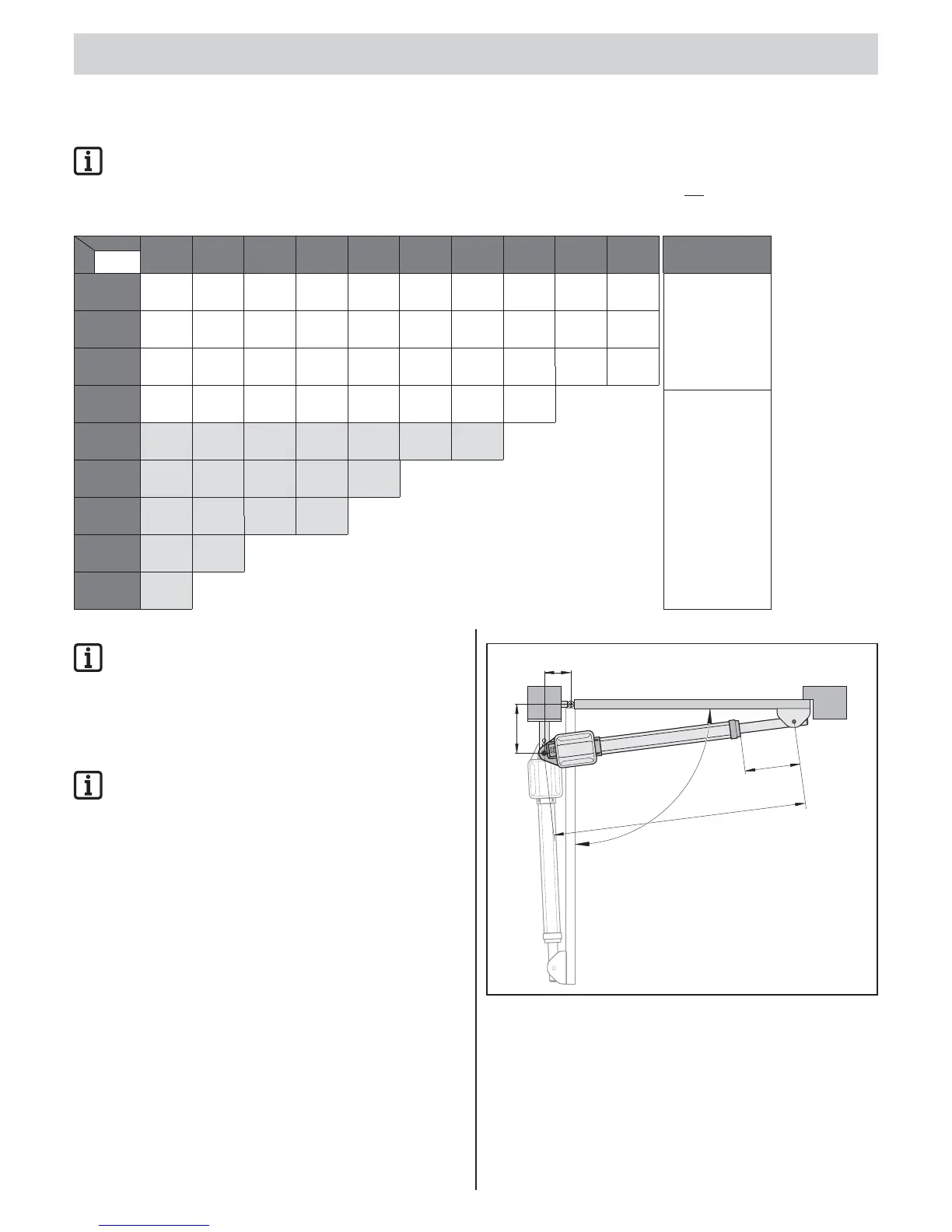

A/B dimension table
(reference values)
IMPORTANT INFORMATION!
Before mounting, defi ne the A/B dimensions. Without these
dimensions, the operator cannot be correctly installed and
operated.
• Observe the different post and pillar dimensions.
White fi elds: Installation range only for horizontal gates
Grey fi elds: Installation range for lift and horizontal gates
Attention: Lift gates only with special fi tting. For more information,
see chapter “General Information” -> “With lift gates”
IMPORTANT INFORMATION!
Select A/B dimensions so the desired opening angle (D) is
reached. The specifi ed opening angle is a reference value for
the largest possible angle.
For gate leaf lengths of greater than 1.5 m or full surface
closed gates, the B dimension must amount to at least
140 mm.
IMPORTANT INFORMATION!
The reference values in the table have been calculated based
on the following data:
• Wind speed 28.3 m/s
• Gate height 2.0 m
• Gate width 2.5 m
• Gate fi lling 35 %, uniformly distributed
• Without electric lock
A
B
C1
D
C
A
80 100 120 140 160 180 200 220 240 260
Max. gate leaf width
Without electric lock
B
CC1
D
100
851 221 875 245 918 288 957 327 994 363 1026 396 1041 411 1043 413 1051 421 1040 410
1.5 m
90º 93º 105º 113º 118º 120º 115° 108° 102° 98°
120
872 242 896 266 935 305 968 338 1194 374 1035 405 1041 411 1042 412 1040 410 1037 407
90º 93º 103º 108º 113º 115º 108° 102° 97° 93°
140
894 264 918 288 951 321 987 357 1018 388 1048 418 1040 410 1040 410 1038 408 1043 412
90º 93º 100º 107º 110º 112° 101° 96°
92° 90°
160
916 286 940 310 971 341 1001 371 1035 405 1049 419 1051 421 1040 410
2.5 m
90º 93º 99° 103° 108° 104°
98° 91°
180
938 308 961 332 991 361 1021 391 1050 420 1041 410
1050 420
90º 93º 98º 102°
105° 94° 92°
200
961 331 984 354 1010 380 1039 409
1042 412
90º 93º 96º 100°
93°
220
983 354 1008 378 1032 403 1051 421
90º 93º
96º 95°
240
1007 377 1031 401
90º 93º
260
1030 400
90º
