Installation
11
Fittings
IMPORTANT INFORMATION!
The strength of the included fi ttings is designed for the
operator. The warranty expires if other fi ttings are used.
IMPORTANT INFORMATION!
The B dimensions must be at least 100 mm (see
“A/B dimension table”). Compensation for smaller
B dimensions with a space plate under the post fi tting.
 Clearances between the gate leaf and post or gate leaf and operator
must be maintained in accordance with the applicable standards.
CAUTION!
Only use permissible fastening materials.
 Fasten fi ttings on stone or cement pillars with expansion dowels
or adhesive-bonded anchors. The fastenings must not loosen
during operation.
 Flying sparks can damage the operator, e.g. when welding on posts
or gate leaves. Cover or disassemble operator before welding.
CAUTION!
Welding and grinding residues accelerate corrosion
of the fi ttings.
• After mounting the fi ttings, do not perform any more welding
or grinding work.
Steel posts
• Note the thickness of the post.
• Weld or bolt the fi tting directly to steel posts.
Brick or concrete pillars
• Uphold the distance of the fastening holes from the pillar edge.
The distance depends on the type of expansion dowels or adhesive-
bonded anchors. Observe the recommendations of the manufacturer.

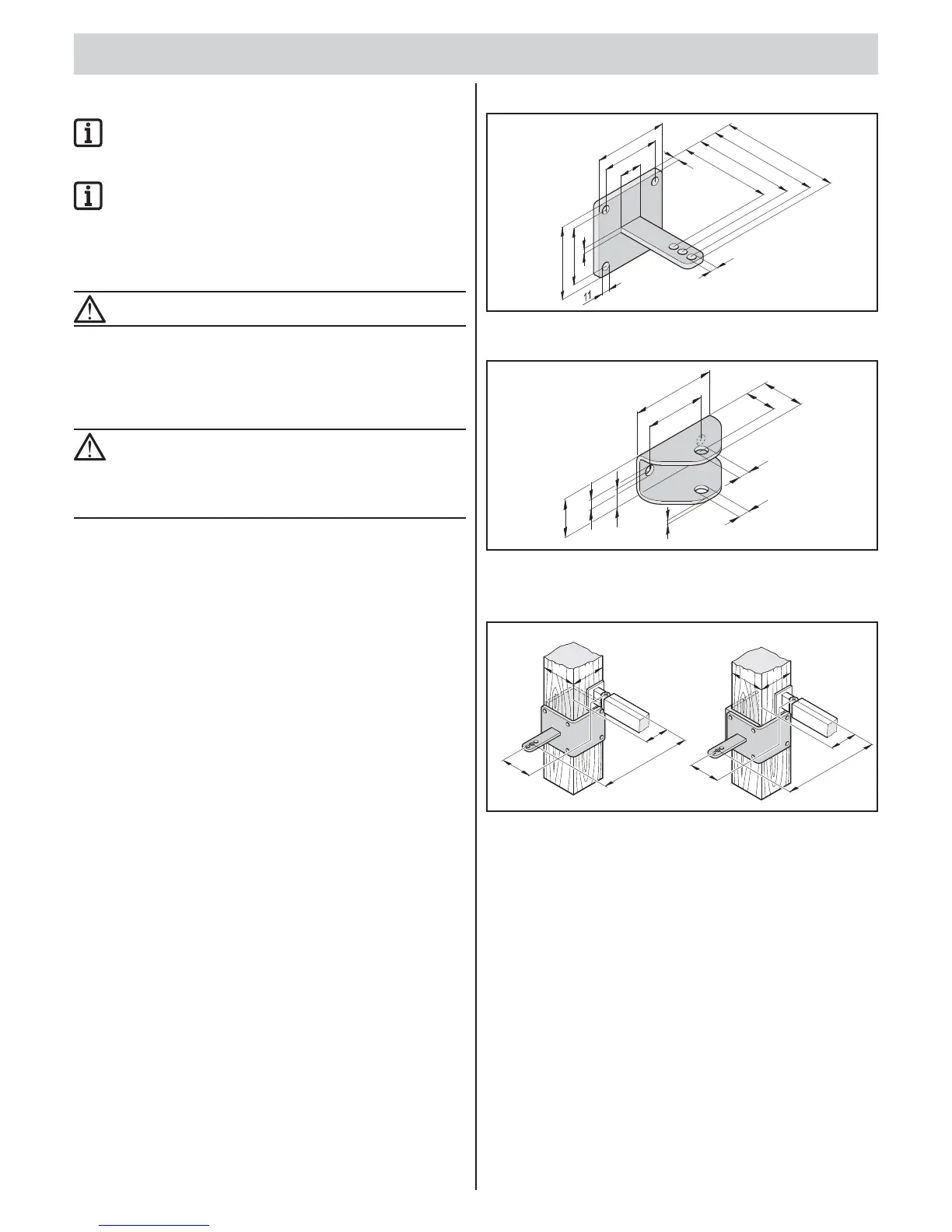

Post/pillar fi tting
10
80
6
92
104
113
100
100
78
78
30
8
Gate leaf fi tting
40
30
10
10
70
50
3
37
8,5
18,5
Timber post fi ttings
Available as an accessory.
100
B = 166
73
A = 95
100
B = 160
73
A = 95
100
100
