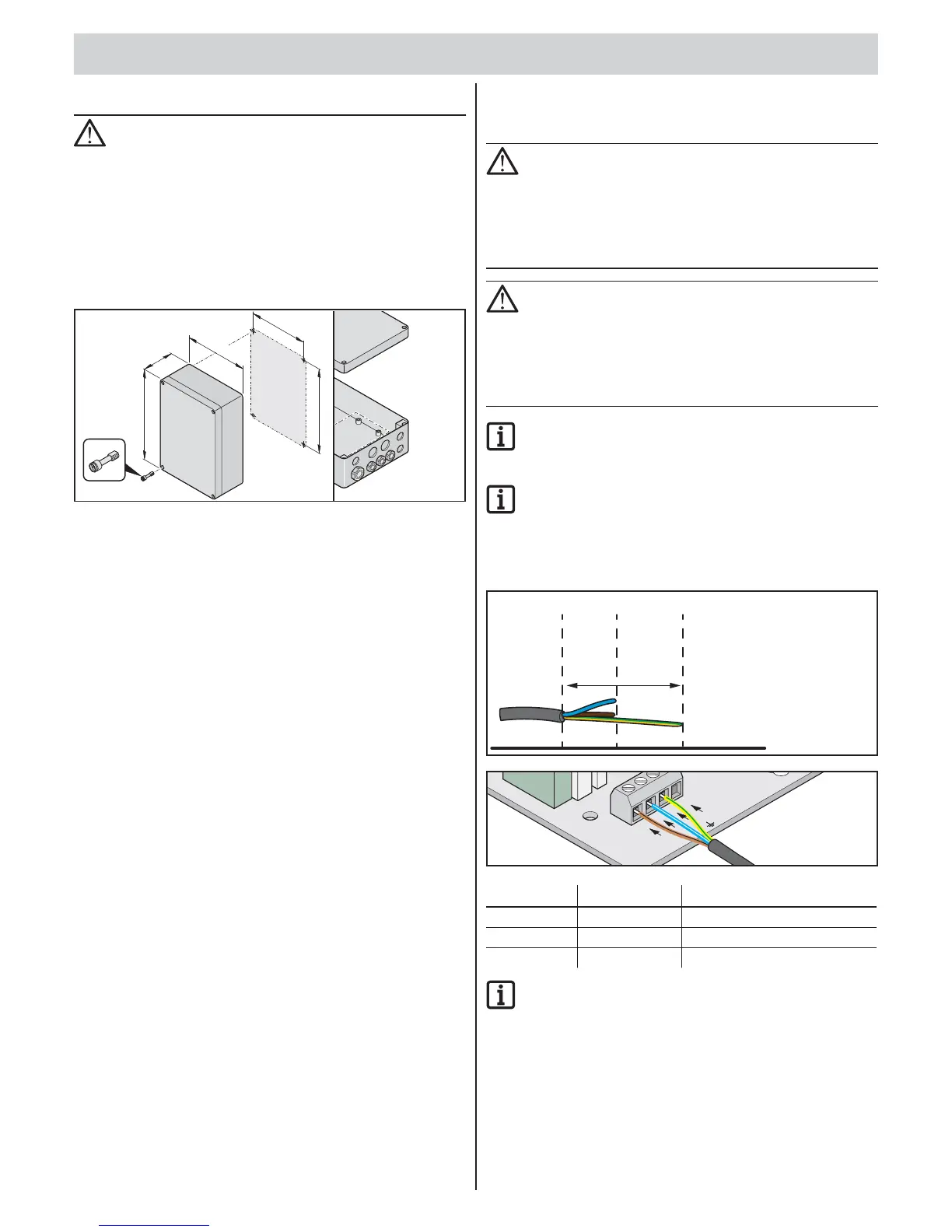

SOMMER twist 200 E - Installing the Control Unit; Connecting Control Unit to Power Mains (AC 230 V)

Installation
13
Installing the control unit
CAUTION! DANGER OF DESTRUCTION BY MOISTURE
Penetration of moisture may destroy the control unit.
• Only screw the housing on the intended fi xing points.
• Install the housing vertically with the cable conduits facing
downwards.
• Permitted cross-section of cable conduits:
1.5 mm² to 2.5 mm².
If cable cross-sections are smaller, insert bushing adapters
into the cable conduits.
• Place the cover so it sits fl ush.
235 mm
160
mm
4x
250 mm
75
m
m
6x M16
3x M20
175
m
m
Connecting control unit to power
mains (AC 230 V)
CAUTION! DANGER OF ELECTROCUTION!
The control unit must be connected to the power mains
by an electrician.
• Implement the mains connection according to EN 12453
(all-pole line disconnector).
• Before doing any work on the gate or operator, disconnect
it from the power supply and lock it to prevent reconnection.
CAUTION!
The supplied mains cable is not approved for constant
or outdoor operation.
• Only use this power cord for the mounting and
commissioning of the operators.
• After completion of installation and commissioning:
Replace power cord with a permanently laid line.
IMPORTANT INFORMATION!
Approved wire cross sections for all terminals:
1 mm²–2.5 mm².
IMPORTANT INFORMATION!
• Do not remove the sheath of the supply line until
it is in the housing!
• Insert the sheath of the connecting line into the control
unit housing.
• Remove the line sheaths as shown in the graphic.
L and N
25 mm
max.
PE
50 mm
min.
N
e
t
z
230V
A
CL N
P
E
P
E
1
23
4
M
Terminal Description Description
1 L Outer conductor AC 230 V
2 N Neutral wire
3 + 4 PE Protective earthing conductor
IMPORTANT INFORMATION!
Secure the line from being moved with cable binders!
