Installation
16

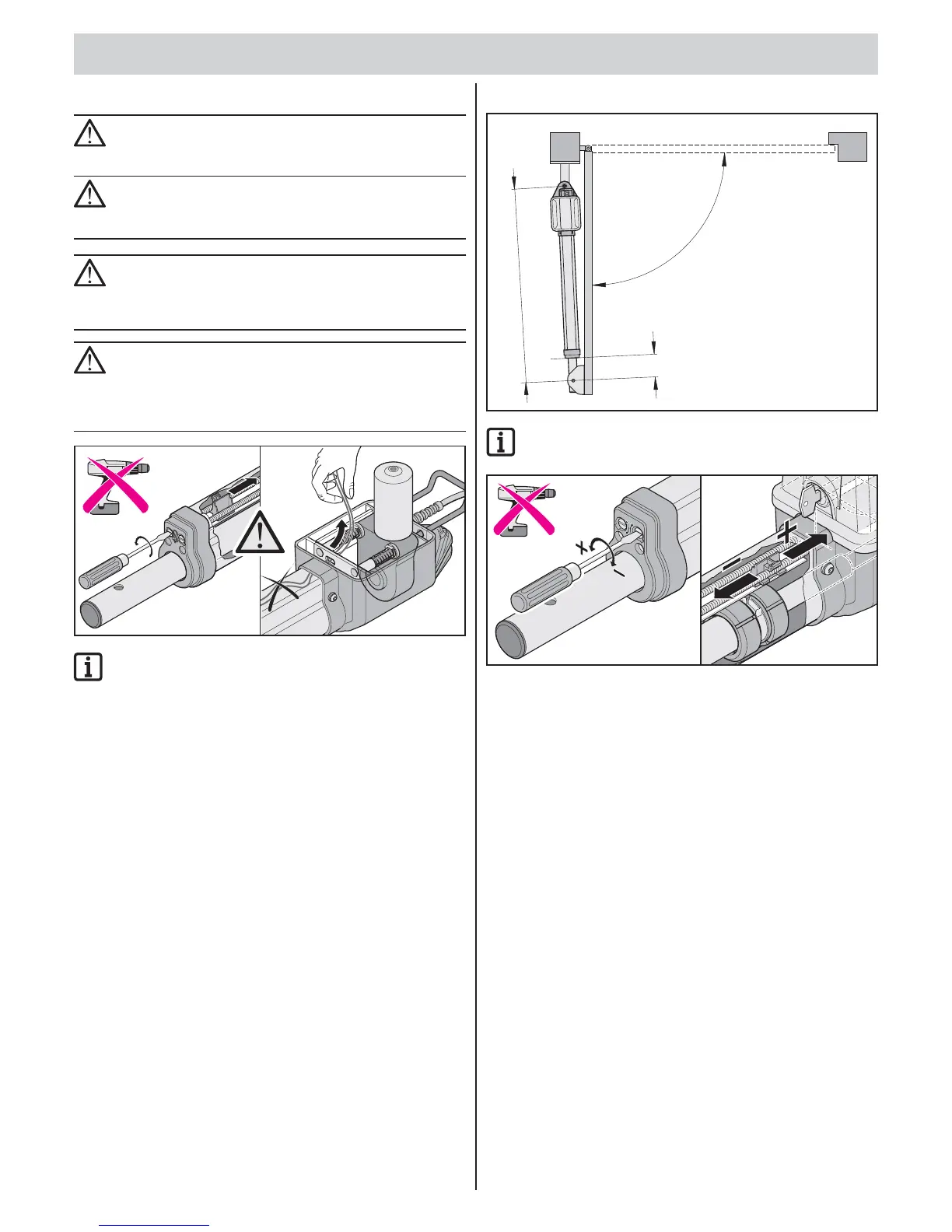

Adjust end positions
CAUTION! DANGER OF ELECTROCUTION!
Before doing any work on the gate or operator, disconnect
it from the power supply and lock it to prevent reconnection.
CAUTION!
Never connect the operator directly to the AC 230 V
mains power.
Risk of deadly electric shock!
CAUTION!
Adjusting the limit switches with a battery-powered
screwdriver or similar tool destroys the limit switches.
• Use recommended tools.
CAUTION!
Connecting cables can jam when adjusting the limit switches
in the protective tube.
• Insert and bundle the connecting cables after adjustment
to prevent individual wires from pinching in the housing.
close
ope
n
IMPORTANT INFORMATION!
Setting the end positions achieves the following:
• The operator has maximum rigidity in the “Gate CLOSE”
end position.
• The maximum possible path is fully used.
• Only one limit switch must be set to the “Gate CLOSE”
end position.
1. Setting “Gate OPEN” end position
C1 = 40 mm
D
min
C = 670 mm
min
IMPORTANT INFORMATION!
“Gate OPEN” end position preset to C1
min
.
close
open
open
If necessary, readjust end position with a screwdriver.
• Extending travel length: Turn “open” setscrew in (+) direction.
• Reducing travel length: Turn “open” setscrew in (–) direction.
